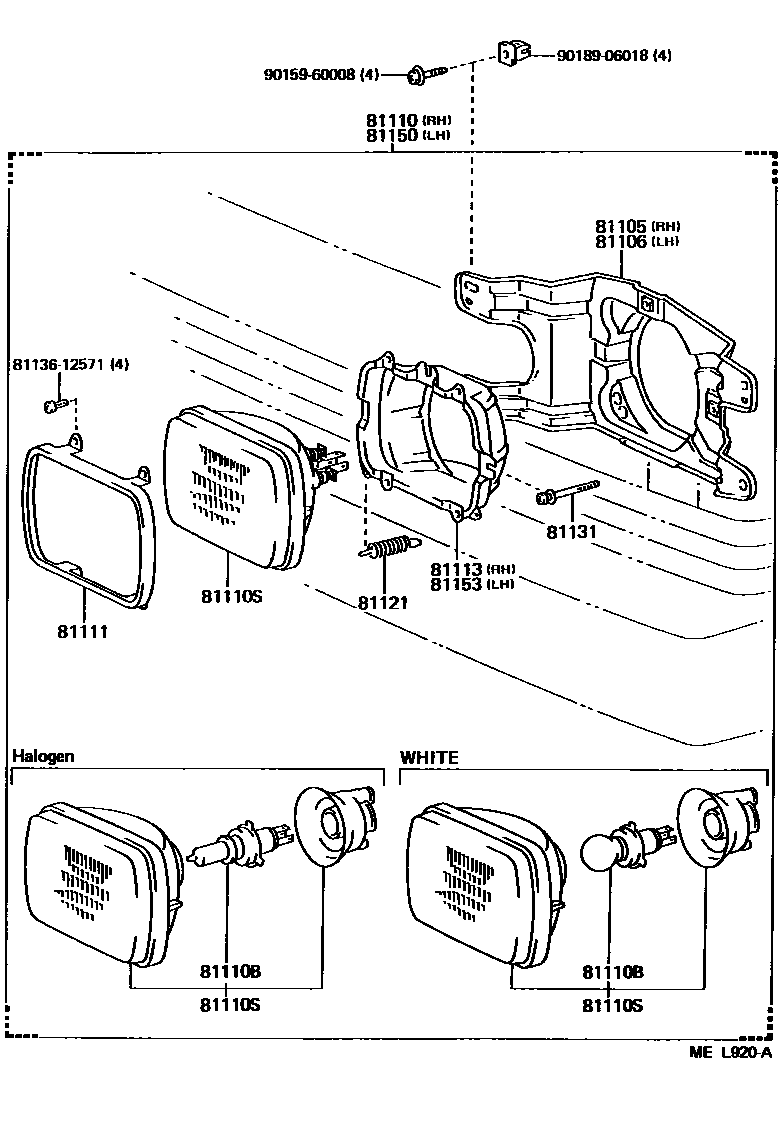

Toyota LITEACE — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
MALASYIA FOR CKD
HALOGEN WHITE
CHINA SPEC
HALOGEN WHITE
HALOGEN YELLOW OR CHINA SPEC & HALOGEN
MALASYIA FOR CKD
PHILIPPINES CKD
HALOGEN WHITE
HALOGEN YELLOW OR CHINA SPEC & HALOGEN
CHINA SPEC
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE
12V 60/55W,*HAL *WH
12V 60/55W,*HAL *YE
12V 65/60W,WHITE
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB
12V 45/40W,*WSB
12V 60/55W,*HWS
12V 60/55W,*HYS
12V 60/55W,*HWS
12V 65/55W,*WB
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
MALAYSIA FOR CKD
CHINA SPEC
HALOGEN WHITE
HALOGEN YELLOW OR CHINA SPEC & HALOGEN YELLOW
MALAYSIA FOR CKD
PHILIPPINES CKD
HALOGEN WHITE
HALOGEN YELLOW OR CHINA SPEC & HALOGEN YELLOW
CHINA SPEC
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9015960008
main90159-60008
9018906018
main90189-06018
14 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota LITEACE
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota LITEACE. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
