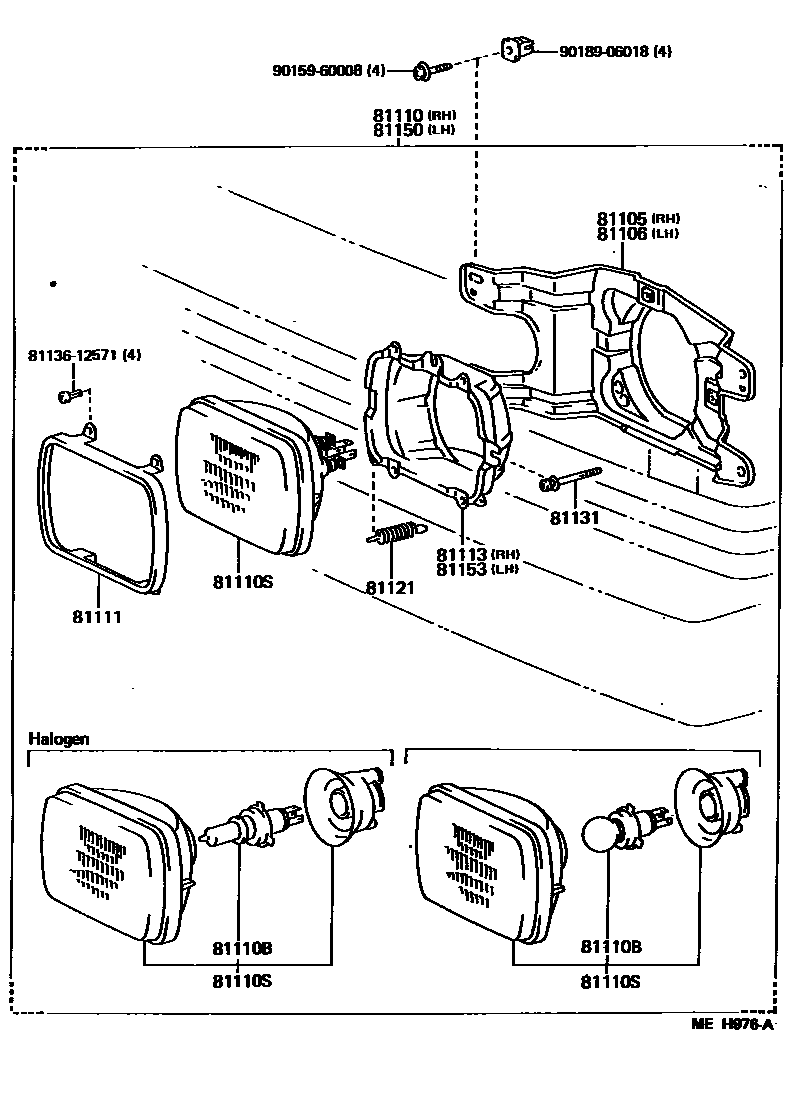

Toyota LITEACE — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
HALOGEN
CHINA SPEC
HALOGEN,WHITE
HALOGEN,YELLOW
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,CHINA SPEC
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB
12V 45/40W,*WSB,12V 45/40W,CHINA SPEC
12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE
12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW
12V 60/55W,*HWS,12V 60/55W,HALOGEN
12V 65/55W,*WB,12V 65/55W
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
HALOGEN
CHINA SPEC
HALOGEN,WHITE
HALOGEN,YELLOW
HALOGEN
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9015960008
main90159-60008
9018906018
main90189-06018
14 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota LITEACE
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota LITEACE. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
