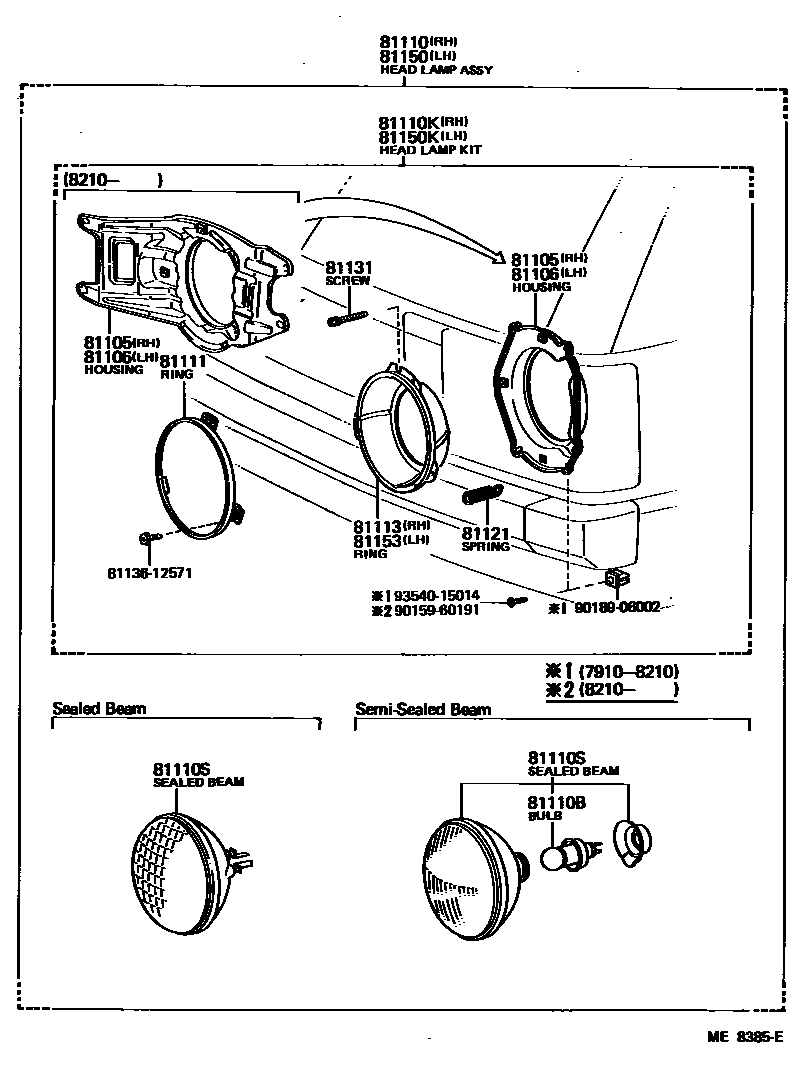

Toyota LITEACE — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
main81105-95722iCM20,KM20,YM21..02S..ARL; CM20,YM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)198311-198508
81106HOUSING SUB-ASSY, HEADLAMP, LH
main81106-95722iCM20,KM20,YM21..02S..ARL; CM20,YM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)198311-198508
81110HEADLAMP ASSY, RH
main81110-80051iKM20..4F..STD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210
SEMI-SEALED,WHITE
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
W/HEADLAMP CLEANER
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,HALOGEN,YELLOW
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,WHITE
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,YELLOW
W/HEADLAMP CLEANER
SEMI-SEALED,WHITE
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W WHITE
12V 45/40W,YELLOW,12V 45/40W YELLOW
12V 60/55W,*HAL *WH,12V 60/65W,HALOGEN,WHITE,*PHS
12V 60/55W,*HAL *YE,12V 60/55W HALOGEN,YELLOW
81110KHEADLAMP KIT, W/O SEALED BEAM, RH
main04817-27010iKM20..V..4F;KM20..V4D..ARL;KM20..LHD..GEN;KM20..(03S,08S)..STD..(ARL,EUR)198108-198210
HALOGEN
81110SSEALED BEAM UNIT, NO.1
12V 50/40W,12V 50/40W
12V 50/40W
12V 45/40W,*WSB,SEMI-SEALED,WHITE
12V 45/40W,*YSB,SEMI-SEALED,YELLOW
12V 45/40W,*WSB,SEMI-SEALED,WHITE
12V 45/40W,*WSB,W/HEADLAMP CLEANER
12V 60/55W,*HWS,SEMI-SEALED,HALOGEN,WHITE,*PHS
12V 60/55W,*HYS,SEMI-SEALED,HALOGEN,YELLOW
12V 60/55W,*HWS,SEMI-SEALED,HALOGEN,WHITE
12V 60/50W,*WB,12V 60/50W
12V 45/40W,*WSB,SEMI-SEALED,WHITE
12V 60/55W,*HWS,SEMI-SEALED,HALOGEN,WHITE
12V 60/55W,*HYS,SEMI-SEALED,HALOGEN,YELLOW
12V 60/55W,*HWS,HALOGEN
81111RING, SEALED BEAM RETAINING
main81111-22150×2iCM20,KM20,YM21..02S..ARL; CM20,YM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)198311-198508
81113RING, SEALED BEAM MOUNTING, NO.1 RH
main81113-95J00iCM20,KM20,YM21..02S..ARL; CM20,YM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)198311-198508
81121SPRING, HEADLAMP TENSION
main81121-62010×2iCM20,KM20,YM21..02S..ARL; CM20,YM20..EUR,GEN;KM20..V4D..02S..EUR;KM20..(03S,05S,06S,08S,09S)..(EUR,GEN)198311-198508
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
main81150-80048iKM20..4F..STD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210
SEMI-SEALED,WHITE
WHITE,SEMI-SEALED
SEMI-SEALED,YELLOW
W/HEADLAMP CLEANER
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,HALOGEN,YELLOW
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,HALOGEN,WHITE
SEMI-SEALED,WHITE
SEMI-SEALED,HALOGEN,WHITE,*PHS
SEMI-SEALED,HALOGEN,YELLOW
W/HEADLAMP CLEANER
WHITE,SEMI-SEALED
81150KHEADLAMP KIT, W/O SEALED BEAM, LH
main04818-27010iKM20..V..4F;KM20..V4D..ARL;KM20..LHD..GEN;KM20..(03S,08S)..STD..(ARL,EUR)198108-198210
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9015960191
main90159-60191
9018906002
main90189-06002
9354015014
main93540-15014
17 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota LITEACE
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota LITEACE. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), HEADLAMP KIT, W/O SEALED BEAM, RH.
