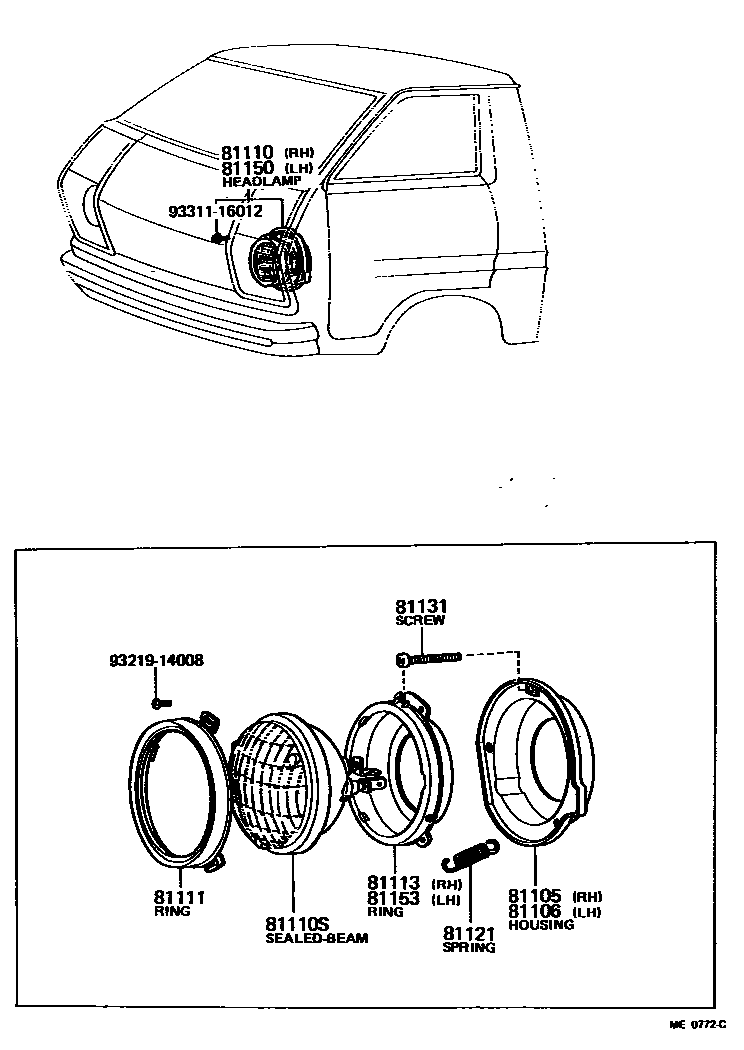

Toyota LITEACE — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-27010i197105-197909

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-27010i197105-197909

81110HEADLAMP ASSY, RH

main81110-29125i197105-197802

main81110-29165i197802-197909

81110SSEALED BEAM UNIT, NO.1

main90981-01015×2i197105-197909

12V 50/40W,12V 50/40W

81111RING, SEALED BEAM RETAINING

main81111-12011×2i197105-197909

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10050i197105-197909

81121SPRING, HEADLAMP TENSION

main81121-62010×2i197105-197909

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4i197105-197909

81150HEADLAMP ASSY, LH

main81150-29125i197105-197802

main81150-29165i197802-197909

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10010i197105-197909

9321914008

main93219-14008

9331116012

main93311-16012

12 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota LITEACE

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota LITEACE. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING.
