Toyota LITEACE — FUEL INJECTION SYSTEM

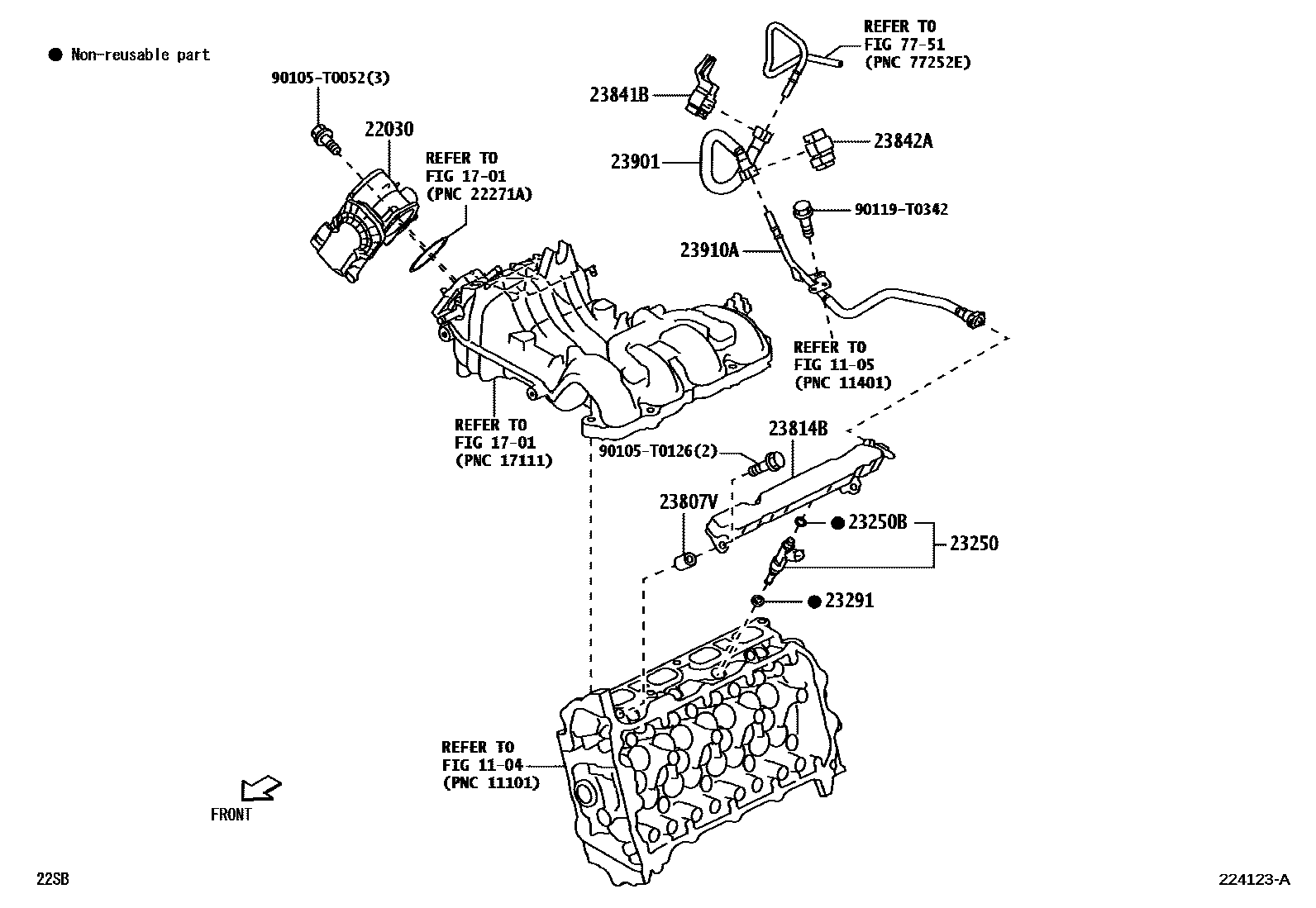

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-BZ060i202205

23250INJECTOR ASSY, FUEL

main23209-BZ050i202205

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i202205

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i202205

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i202205

23814BPIPE, FUEL DELIVERY

main23814-BZ080i202205

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i202205

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-BZ010i202205

23901TUBE SUB-ASSY, FUEL

main23901-BZ130i202205

23910ATUBE SUB-ASSY, FUEL

main23901-BZ120i202205

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105T0052

main90105-T0052

90105T0126

main90105-T0126

90119T0342

main90119-T0342

17 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota LITEACE

This section contains 17 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota LITEACE. Key components include: CYLINDER HEAD, CYLINDER BLOCK, MANIFOLD, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, INJECTOR ASSY, FUEL.
