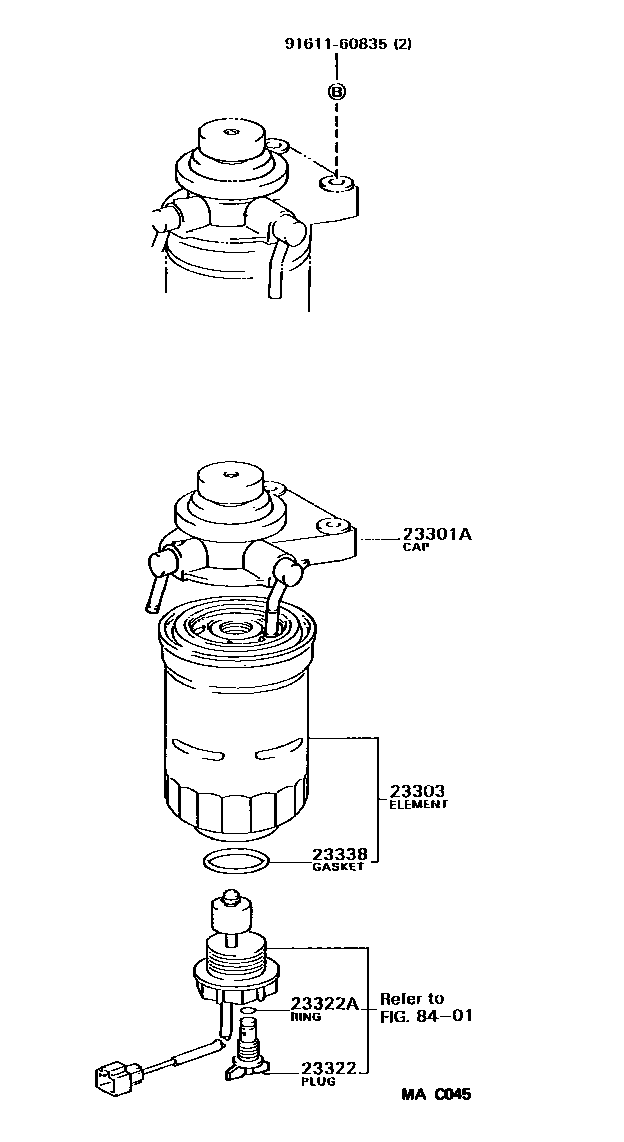

Toyota LITEACE — FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-64130i198808-199303

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i198808-199303

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i198808-199303

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i198808-199303

23338GASKET(FOR WARNING SWITCH)

main23344-64010i198808-199303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160835

main91611-60835

7 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota LITEACE

This section contains 10 genuine Toyota parts for the FUEL FILTER system of the Toyota LITEACE. Key components include: FILTER ASSY, FUEL, CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG).
