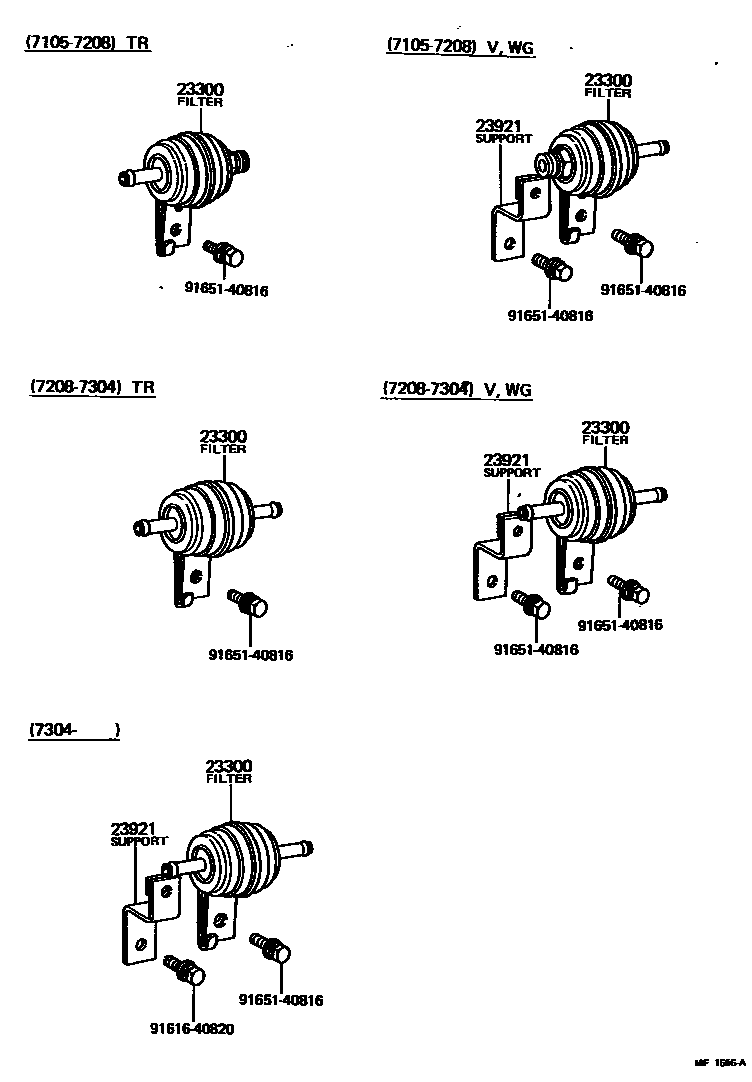

Toyota LITEACE — FUEL FILTER

23300FILTER ASSY, FUEL

main23030-11020i197105-197208

main23030-24011i197105-197208

main23030-24090i197304-197909

main23030-26010i197208-197304

main23030-60020i197208-197304

23921SUPPORT, FUEL FILTER

main23909-95700i197105-197304

main23921-24030i197304-197909

9161640820

main91616-40820

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section

FUEL FILTER for Toyota LITEACE

This section contains 4 genuine Toyota parts for the FUEL FILTER system of the Toyota LITEACE. Key components include: FILTER ASSY, FUEL, SUPPORT, FUEL FILTER.
