Toyota LITEACE — FRONT VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55971-95700iCM3#,KM3#,YM3#,4#198509-198808

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55972-95700iCM3#,KM3#,YM3#,4#198509-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-95701-04iYM30,40198509-198808

BLUE,BLUE

main55961-95701-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-95701-04iYM30,40198509-198808

BLUE,BLUE

main55962-95701-06iCM3#,KM3#,YM3#,4#198509-198808

BROWN,BROWN

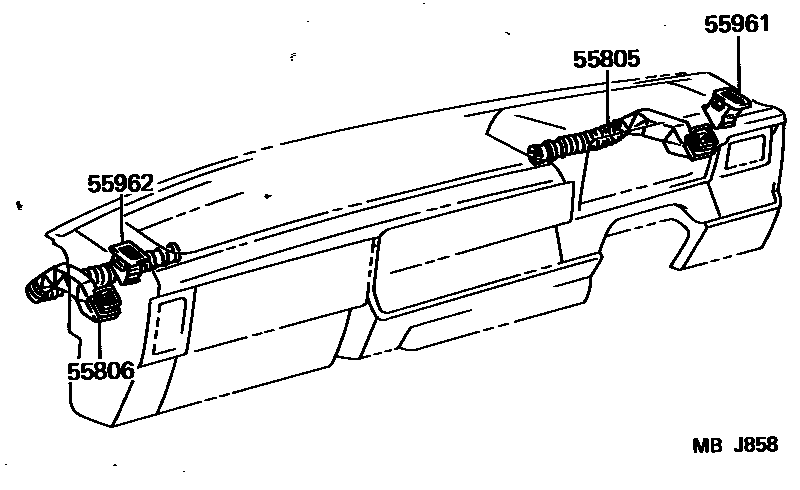

4 parts on this diagram · 1 diagram in section
