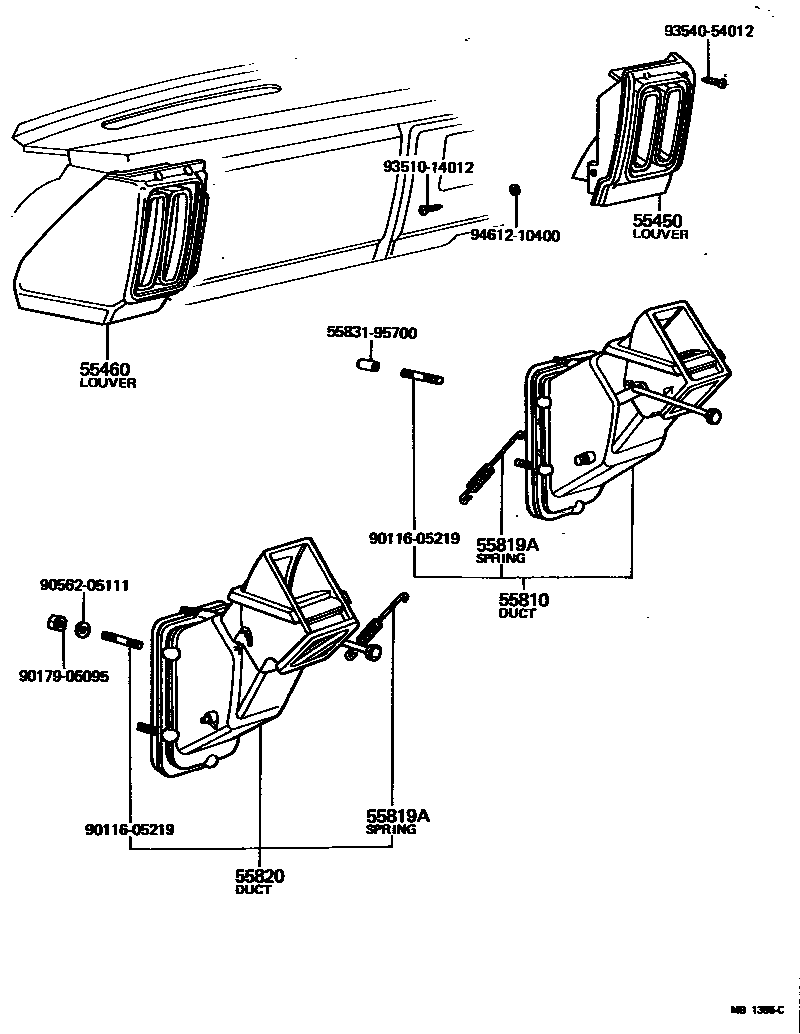

Toyota LITEACE — FRONT VENTILATOR

55450LOUVER ASSY, SIDE VENTILATOR, RH

main55450-95700iKM10197105-197610

main55450-95700-01iKM1#197610-197909

BLACK,BLACK

55460LOUVER ASSY, SIDE VENTILATOR, LH

main55460-95700iKM10197105-197610

main55460-95700-01iKM1#197610-197909

BLACK,BLACK

55810DUCT ASSY, SIDE VENTILATOR, RH

main55810-95700iKM10197105-197307

main55810-95701iKM1#197307-197909

55819ASPRING, TENSION(FOR SIDE VENTILATOR CONTROL ROD)

main90506-10340×2iKM1#197105-197909

55820DUCT ASSY, SIDE VENTILATOR, LH

main55820-95700iKM1#197105-197909

5583195700HANDLE OR LEVER, VENTILATOR SHUTTER

main55831-95700

9011605219

main90116-05219

9017905095

main90179-05095

9056205111

main90562-05111

9351014012

main93510-14012

9354054012

main93540-54012

9461210400

main94612-10400

12 parts on this diagram · 1 diagram in section
