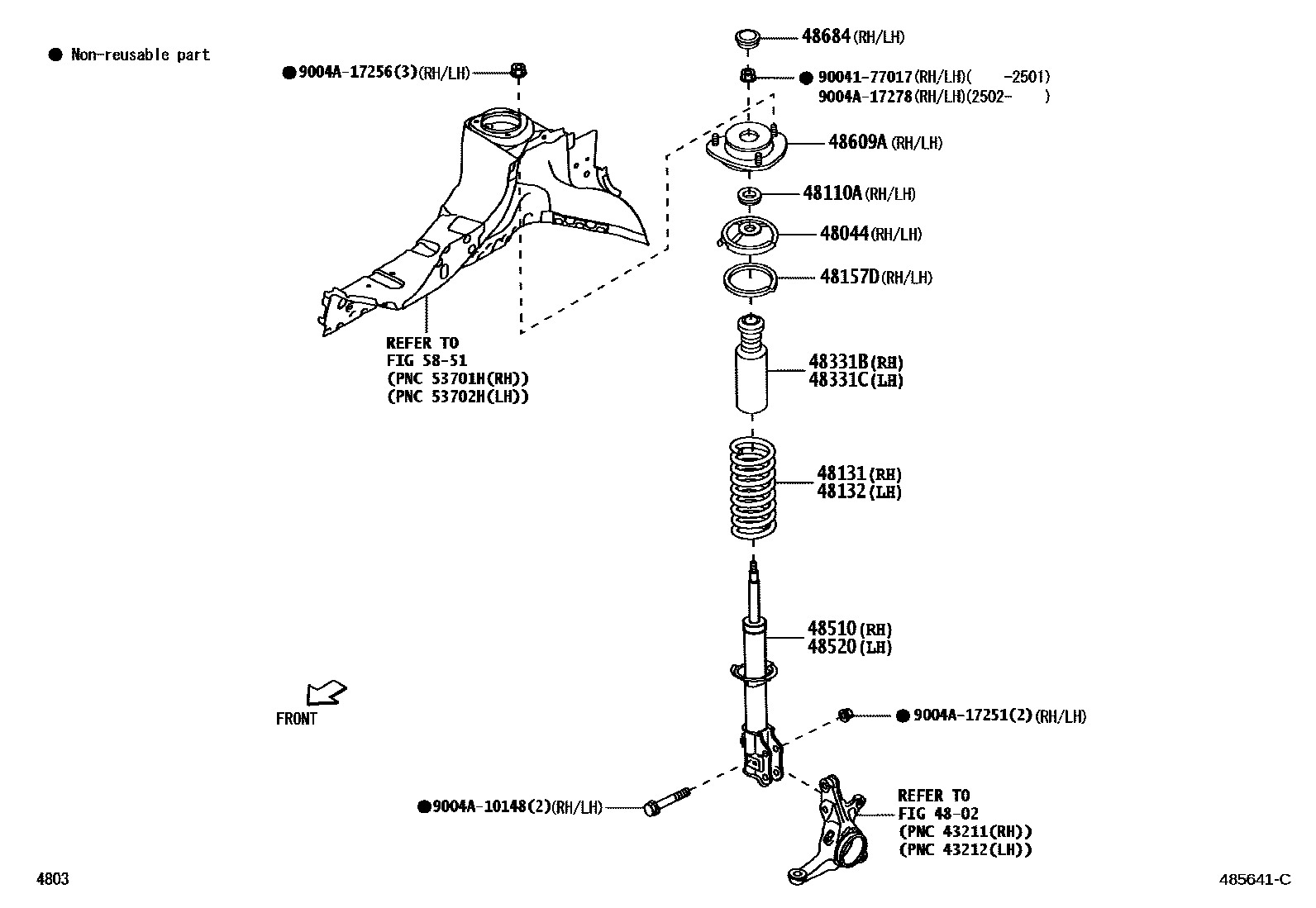

Toyota LITEACE — FRONT SPRING & SHOCK ABSORBER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ070×2iS403202205

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90043-89155×2iS403202205

48131SPRING, FRONT COIL, RH

main48131-BZC50iS403..T2202205

main48131-BZE10iS403..VAN202205

48132SPRING, FRONT COIL, LH

main48131-BZC50iS403..T2202205

main48131-BZE10iS403..VAN202205

48157DINSULATOR, FRONT COIL SPRING

main48157-BZ020×2iS403202205

48331BBUMPER, FRONT SPRING, RH

main48331-BZ080iS403202205

48331CBUMPER, FRONT SPRING, LH

main48331-BZ080iS403202205

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZD40iS403..T2202205

MARK 48510-BZD40

main48510-BZD51iS403..VAN202205

MARK 48510-BZD51

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-BZD40iS403..T2202205

MARK 48510-BZD40

main48510-BZD51iS403..VAN202205

MARK 48510-BZD51

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-BZ130×2iS403202205

48684COVER, BEARING DUST

main48684-BZ010×2iS403202205

5851

9004177017

main90041-77017

9004A10148

main9004A-10148

9004A17251

main9004A-17251

9004A17256

main9004A-17256

9004A17278

main9004A-17278

18 parts on this diagram · 1 diagram in section
