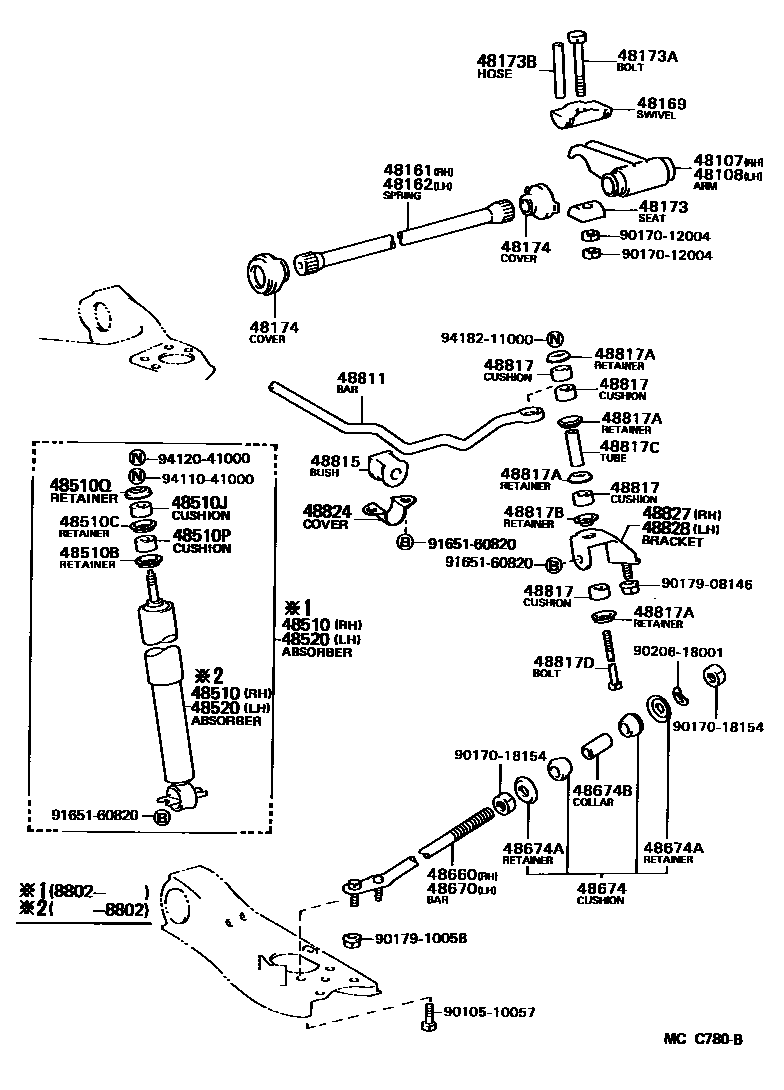

Toyota LITEACE — FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-27030iCM3#,KM3#,YM3#,4#198509-198808

sub48107-27050

48108ARM SUB-ASSY, ANCHOR, LH

main48108-27020iCM3#,KM3#,YM3#,4#198509-198808

sub48108-27050

48161SPRING, TORSION BAR, RH

main48161-27080iCM35,KM3#,YM3#198509-198610

main48161-27120iYM4#198601-198808

main48161-27170iCM3#,KM3#,YM30,35198610-198808

48162SPRING, TORSION BAR, LH

main48162-27080iCM35,KM3#,YM3#198509-198610

main48162-27120iYM4#198601-198808

main48162-27170iCM3#,KM3#,YM30,35198610-198808

48169SWIVEL, ANCHOR ARM

main48169-27020×2iCM3#,KM3#,YM3#,4#198509-198808

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iCM3#,KM3#,YM3#,4#198509-198808

LH

main48173-27020iCM3#,KM3#,YM3#,4#198509-198808

RH

sub48173-27030

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12059×2iCM3#,KM3#,YM3#,4#198509-198808

48173BHOSE(FOR ANCHOR ARM ADJUSTING BOLT)

main90446-14001iCM3#,KM3#,YM3#,4#198509-198808

48174COVER, TORSION BAR DUST

main48174-27010×2iCM3#,KM3#,YM3#,4#198509-198808

FR

main48175-27010×2iCM3#,KM3#,YM3#,4#198509-198808

RR

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-27060iCM3#,KM3#,YM3#198509-198802

MARK 48500-27060

main48500-27110iYM4#198601-198802

MARK 48500-27110

main48500-29345iCM3#,KM3#,YM30,35198802-198808

sub48500-29346

main48500-29355iYM40198802-198808

sub48500-29356

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×2iCM3#,KM3#,YM3#,4#198509-198808

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02017×2iCM3#,KM3#,YM3#,4#198509-198808

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01003×2iCM3#,KM3#,YM3#,4#198509-198808

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01029×2iCM3#,KM3#,YM3#,4#198509-198808

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02076×2iCM3#,KM3#,YM3#,4#198509-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-27060iCM3#,KM3#,YM3#198509-198802

MARK 48500-27060

main48500-27110iYM4#198601-198802

MARK 48500-27110

main48500-29345iCM3#,KM3#,YM30,35198802-198808

sub48500-29346

main48500-29355iYM40198802-198808

sub48500-29356

48660BAR ASSY, STRUT, RH

main48660-27020iCM3#,KM3#,YM3#198509-198808

48670BAR ASSY, STRUT, LH

main48670-27020iCM3#,KM3#,YM3#198509-198808

48674CUSHION, STRUT BAR

main48674-29026×4iCM3#,KM3#,YM3#198509-198808

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030×4iCM3#,KM3#,YM3#198509-198808

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090×2iCM3#,KM3#,YM3#198509-198808

48811BAR, STABILIZER, FRONT

main48804-28010iYM4#198601-198801

sub48811-28060

sub48827-28010

sub48828-28010

main48804-28011iYM40198801-198808

sub48811-28061

sub48827-28011

sub48828-28011

main48811-27040iCM35,KM3#,YM3#198509-198708

main48811-27041iCM3#,KM3#,YM30,35198708-198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14020×2iCM3#,KM3#,YM3#198509-198808

sub48815-38010

main48815-30100×2iYM4#198601-198808

48817CUSHION, FRONT STABILIZER

main90948-01002×8iCM3#,KM3#,YM3#,4#198509-198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iCM3#,KM3#,YM3#,4#198509-198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005×2iCM3#,KM3#,YM3#,4#198509-198808

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004×2iCM3#,KM3#,YM3#198509-198808

48817DBOLT(FOR FRONT STABILIZER)

main48819-28010×2iYM4#198601-198801

main48819-28011×2iYM40198801-198808

main90101-10090×2iCM3#,KM3#,YM3#198509-198808

48824BRACKET, STABILIZER, FRONT

main48824-12040×2iCM3#,KM3#,YM3#198509-198808

main48824-28030×2iYM4#198601-198808

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-27030iCM3#,KM3#,YM3#198509-198808

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48829-27030iCM3#,KM3#,YM3#198509-198808

9010510057

main90105-10057

9017012004

main90170-12004

9017018154

main90170-18154

9017908146

main90179-08146

9017910058

main90179-10058

9020618001

main90206-18001

9165160820

main91651-60820

9411041000

main94110-41000

9412041000

main94120-41000

9418211000

main94182-11000

41 parts on this diagram · 2 diagrams in section
