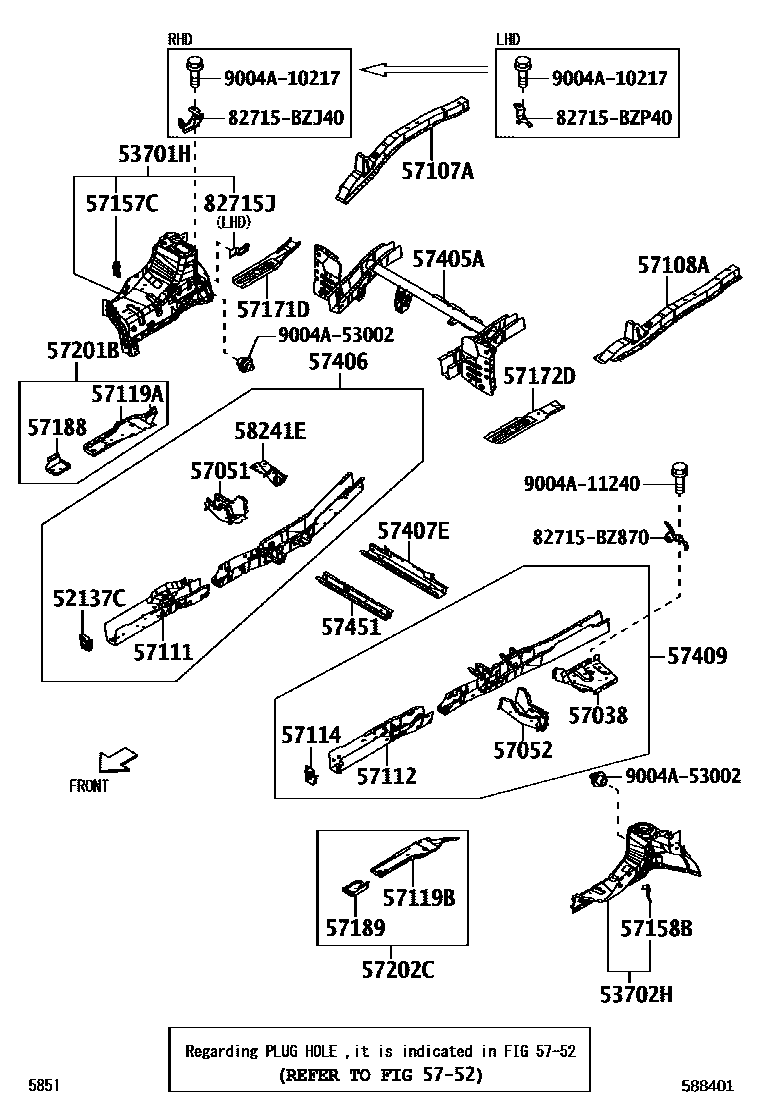

Toyota LITEACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1MEMBER 0002 1MEMBER 0003 1FLOOR PANEL

52137CBRACKET, FRONT BUMPER ARM MOUNTING, NO.3

main52141-BZ110iS403202205

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ510iS403..RHD202205

main53701-BZ740iS403..LHD202205

main53701-BZ750iS403..GCC202205

UAE

53702HAPRON SUB-ASSY, FENDER, LH

main53702-BZ800iS403..RHD202205

main53702-BZ840iS403..LHD202205

main53702-BZ850iS403..GCC202205

UAE

57038STAY SUB-ASSY, FRONT STEP, LH

main57038-BZ010iS403202205

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ250iS403202205

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ160iS403202205

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-BZ070iS403..T2202205

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-BZ070iS403..T2202205

57111MEMBER, FRONT SIDE, RH

main57111-BZ240iS403202205

57112MEMBER, FRONT SIDE, LH

main57112-BZ280iS403202205

main57112-BZ370iS403..GCC202205

UAE

57114EXTENSION, FRONT SIDE MEMBER, LH

main57202-BZ060iS403202205

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-BZ080iS403202205

57119BPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-BZ080iS403202205

57157CBRACKET, FLEXIBLE HOSE, FRONT RH

main57157-BZ040iS403202205

57158BBRACKET, FLEXIBLE HOSE, FRONT LH

main57158-BZ050iS403202205

57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH

main57171-BZ050iS403..T2202205

57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH

main57172-BZ040iS403..T2202205

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-BZ010iS403202205

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-BZ020iS403202205

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57203-BZ020iS403202205

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57204-BZ050iS403202205

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-BZ070iS403..T2202205

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ170iS403..T2202205

main57406-BZ230iS403..VAN202205

main57406-BZ310iS403..GCC202205

UAE

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-BZ070iS403202205

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ140iS403..T2202205

main57409-BZ200iS403..VAN202205

main57409-BZ300iS403..GCC202205

UAE

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ190iS403202205

main57408-BZ010iS403..GCC202205

UAE

5752

58241EPANEL, FLOOR SIDE, FRONT RH

main57371-BZ020iS403202205

82715JBRACKET, WIRING HARNESS CLAMP

main58396-BZ040iS403..LHD202205

82715BZ870BRACKET,WIRING HARNESS CLAMP

main82715-BZ870

82715BZJ40BRACKET,WIRING HARNESS CLAMP

main82715-BZJ40

82715BZP40BRACKET,WIRING HARNESS CLAMP

main82715-BZP40

9004A10217

main9004A-10217

9004A11240

main9004A-11240

9004A53002

main9004A-53002

35 parts on this diagram · 3 diagrams in section
