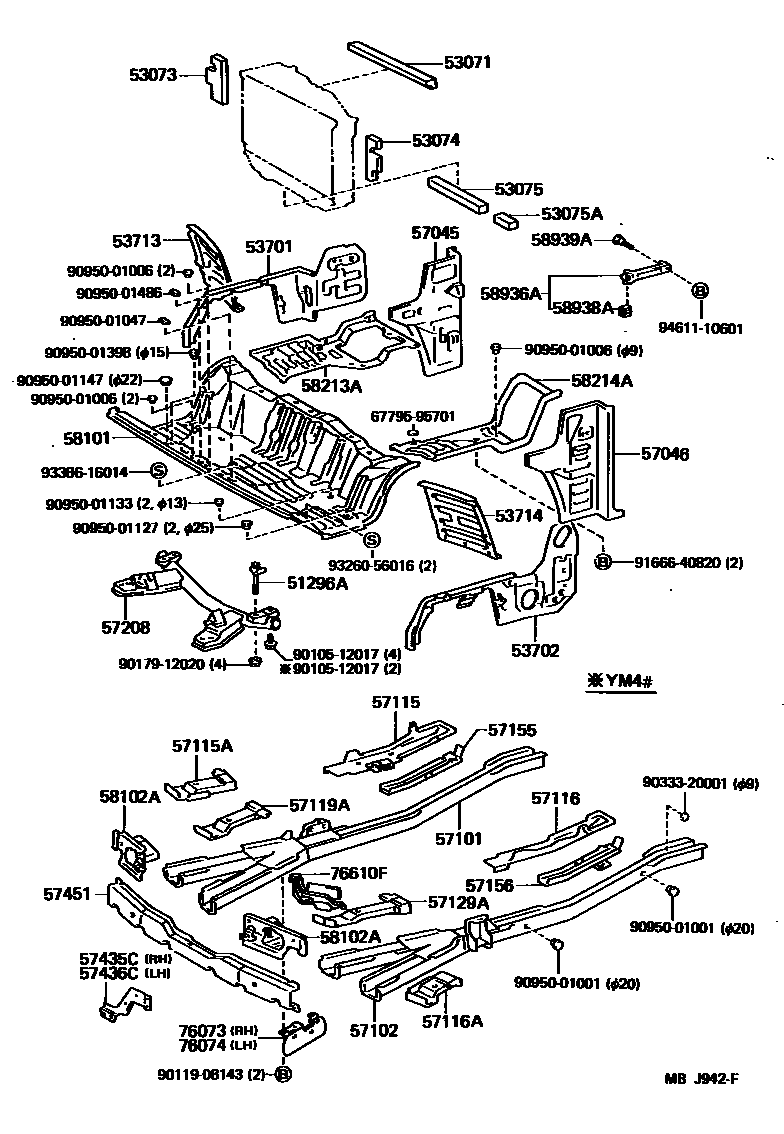

Toyota LITEACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-95701×4iCM3#,KM3#,YM3#,4#198509-198808

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53735-95700iCM35,KM36,YM30,35198509-198608

main53735-95701iKM36..4H;YM30..ARL;CM35,KM37,YM35198608-198808

53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH

main53727-95707iKM3#..4H198608-198808

main53727-95708iCM35,YM30,35198509-198608

main53727-95709iYM4#198601-198808

53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH

main53728-95704iKM36..4H;CM35,YM35;YM30..ARL198509-198608

main53728-95705iYM4#198601-198808

53075SHUTTER SUB-ASSY, HOT AIR, LOWER

main53737-95701iKM36..4H;YM30..ARL;CM35,KM37,YM35198608-198808

main53737-95702iYM4#198601-198808

53075ASHUTTER SUB-ASSY, HOT AIR SIDE, A RH

main53733-95701×2iCM35,KM36,YM30,35198509-198608

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95711iYM3#,4#198509-198808

sub53701-95722

main53701-95712iCM3#198509-198808

main53701-95713iKM3#198509-198808

sub53701-95721

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95713iKM3#198509-198808

sub53702-95722

main53702-95714iCM3#198509-198808

sub53702-95723

main53702-95715iYM3#,4#198509-198808

sub53702-95724

53713APRON, FENDER SIDE, RH

main53707-95701iCM3#,KM3#,YM3#,4#198509-198808

53714APRON, FENDER SIDE, LH

main53708-95702iKM3#..GEN198509-198808

sub90333-25001

main53708-95704iKM36,YM35..ARL198509-198808

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95709iKM36..RHD..V4D;CM3#,YM3#,4#..RHD198509-198808

sub57045-95705

main57045-95710iKM36..V5D;CM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

sub57045-95707

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95705iCM35,KM3#..LHD..(02S,05S,06S,09S)198509-198808

main57046-95709iKM36..LHD..03S198509-198808

main57046-95711iCM3#,KM36,YM3#,4#..RHD198509-198808

sub57046-95707

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-95707iYM4#198601-198808

sub57101-95725

sub90948-02123

main57101-95709iCM35,YM3#..RHD;KM36..RHD..V4D198509-198608

main57101-95710iKM36..RHD..V5D198509-198808

main57101-95713iCM35,KM36..LHD198509-198608

main57101-95716iKM36..RHD..V4D;CM3#,YM30,35..RHD198608-198808

sub57101-95722

sub90948-02123

main57101-95720iCM35,KM3#..LHD198608-198808

sub57101-95729

sub90948-02123

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-95703iYM4#198601-198808

sub57102-95718

sub90948-02123

main57102-95705iCM35,KM36,YM3#..RHD198509-198608

main57102-95706iCM35,KM36..LHD198509-198608

main57102-95711iCM35,KM36,YM30,35..RHD198608-198806

sub57102-95716

sub90948-02123

main57102-95712iCM35,KM3#..LHD198608-198808

sub57102-95722

sub90948-02123

main57102-95724iYM35198806-198808

57115PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH

main57105-95704iCM3#,KM3#,YM3#,4#198509-198808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-95703iCM3#,KM3#,YM3#,4#198509-198808

57116PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH

main57148-95702iCM3#,KM3#,YM3#,4#198509-198808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-95703iCM3#,KM3#,YM3#,4#198509-198808

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-95702iCM3#,KM3#,YM3#,4#198509-198808

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-95702iCM3#,KM3#,YM3#,4#198509-198808

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-95701iCM3#,KM3#,YM3#,4#198509-198808

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57044-95702iCM3#,KM3#,YM3#,4#198509-198808

sub57044-95703

57208MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51021-95700iCM35198509-198708

main51021-95701iKM36..RHD198509-198708

main51021-95702iYM3#198509-198708

main51021-95703iKM3#..LHD198509-198708

main51021-95704iYM4#198601-198708

main51021-95706iKM36..RHD198708-198808

main51021-95707iYM30,35198708-198808

main51021-95708iCM3#198708-198808

main51021-95709iYM40198708-198808

main51021-95711iKM3#..LHD198708-198808

57435CSTRENGTH, UPPER REAR FLOOR, NO.1

main57435-95701iCM36,YM30..GEN198803-198808

CKD SPEC

57436CSTRENGTH, UPPER REAR FLOOR, NO.2

main57436-95701iCM36,YM30..GEN198803-198808

CKD SPEC

57451MEMBER, FRONT FLOOR CROSS

main57408-95705iCM3#,KM3#,YM3#,4#198509-198808

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95744iCM3#,KM36,YM3#..RHD..(02S,05S,08S)198509-198808

sub58101-27250

main58101-95746iKM36..RHD..4H198509-198808

sub58101-27270

main58101-95748iCM35..LHD198509-198808

sub58101-27280

main58101-95751iKM3#..LHD198509-198808

sub58101-27300

main58101-95754iYM4#198601-198808

sub58101-27310

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-95700iCM3#,KM3#,YM3#,4#198509-198808

RH

main58103-95704iCM3#,KM3#,YM3#,4#198509-198808

LH

58213APANEL, SEAT FLOOR, RH

main58201-95718iCM3#,KM3#,YM3#,4#198509-198808

sub58201-27030

58214APANEL, SEAT FLOOR, LH

main58214-95708iCM3#,KM36,YM3#,4#..RHD198509-198808

sub58202-27020

main58214-95709iCM35,KM3#..LHD198509-198808

sub58202-27030

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58402-95714-04iYM30,40198509-198808

BLUE,BLUE

main58402-95714-06iCM35,KM3#..LHD198509-198808

BROWN,BROWN

main58402-95715-06iCM3#,KM36,YM31..RHD..(02S,05S)..GEN198509-198808

BROWN,BROWN

58938ACUSHION, ENGINE SERVICE HOLE COVER BAND

main58938-87001iCM35,KM36,YM3#,4#198509-198608

58939ASCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58939-95J00iCM3#,KM3#,YM3#,4#198509-198808

76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH

main76073-95700iYM4#198601-198808

76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH

main76073-95700iYM4#198601-198808

76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH

main76610-95700iYM4#198601-198808

6779595701BUMPER, FRONT DOOR SWITCH

main67795-95701

9010512017

main90105-12017

9011908143

main90119-08143

9017912020

main90179-12020

9033320001

main90333-20001

9095001001

main90950-01001

9095001006

main90950-01006

9095001047

main90950-01047

9095001127

main90950-01127

9095001133

main90950-01133

9095001147

main90950-01147

9095001398

main90950-01398

9095001486

main90950-01486

9166640820

main91666-40820

9326056016

main93260-56016

9338616014

main93386-16014

9461110601

main94611-10601

53 parts on this diagram · 2 diagrams in section
