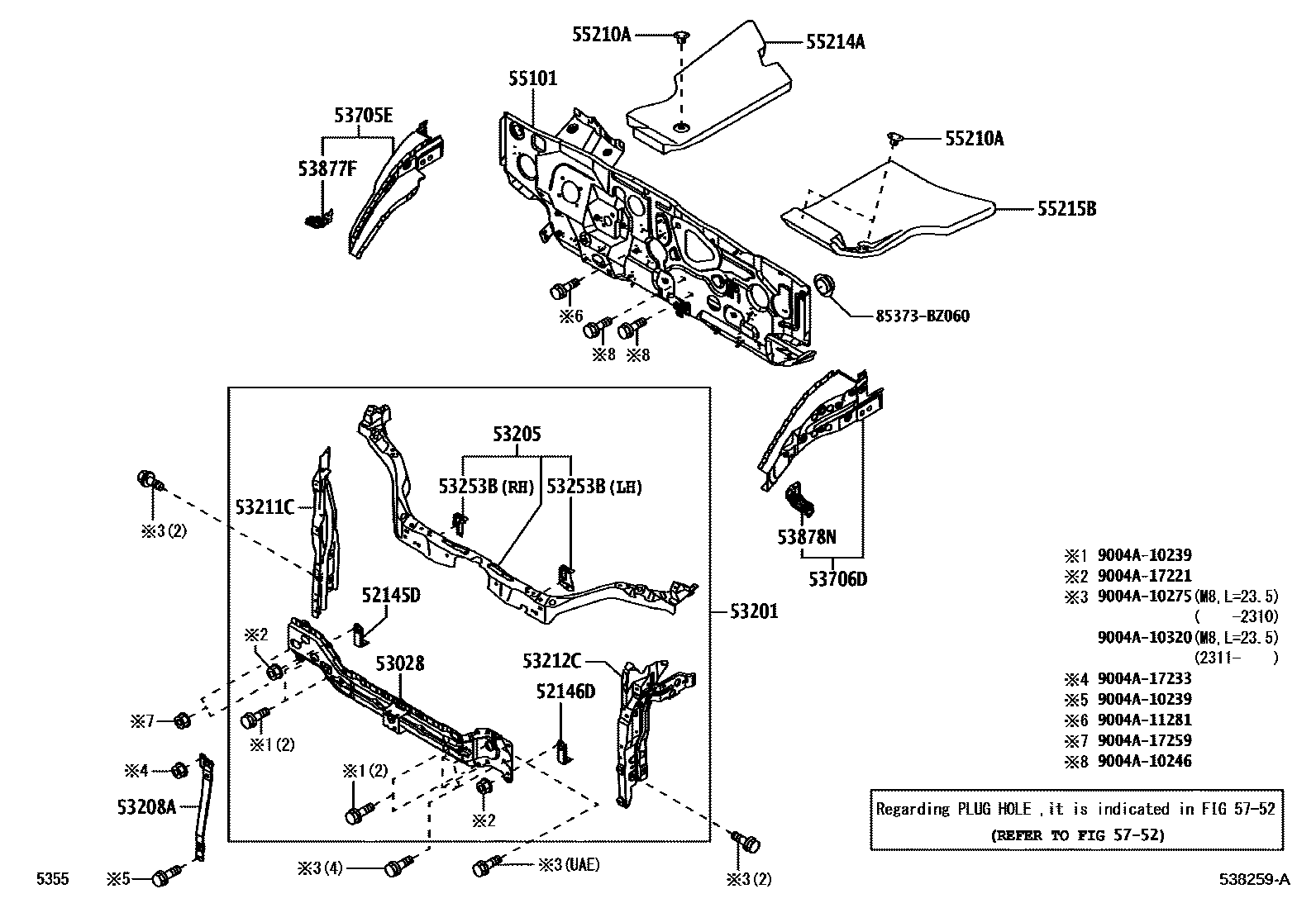

Toyota LITEACE — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-BZ050iS403202205

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52145-BZ050iS403202205

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ080iS403202205

main53028-BZ091iS403..GCC202205

UAE

53201SUPPORT SUB-ASSY, RADIATOR

main53201-BZ310iS403..LHD..R..GEN202205

PHILIPPINE&A/C P/S A/B ABS PACK

main53201-BZ400iS403..CRI,GCC,GEN,THAI202205

main53201-BZ350iS403..GCC202205

UAE

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ133iS403..LHD..R..GEN202205

PHILIPPINE&A/C P/S A/B ABS PACK

main53205-BZ240iS403..CRI,GCC,GEN,THAI202205

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-BZ090iS403202205

53211CSUPPORT, RADIATOR, RH

main53211-BZ230iS403202205

53212CSUPPORT, RADIATOR, LH

main53203-BZ210iS403202205

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-BZ020iS403202205

RH

main53254-BZ020iS403202205

LH

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-BZ060iS403202205

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-BZ090iS403202205

main53706-BZ080iS403..GCC202205

UAE

53877FBRACKET, FRONT FENDER LINER, RH

main53707-BZ030iS403202205

53878NBRACKET, FRONT FENDER LINER, LH

main53708-BZ020iS403202205

55101PANEL SUB-ASSY, DASH

main55101-BZK10iS403..RHD..5F202205

main55101-BZN40iS403..4FC..GEN202205

main55101-BZQ81iS403..LHD..4FC202205

main55101-BZQ91iS403..LHD..5F202205

main55101-BZQ61iS403..4FC..GCC202205

UAE

main55101-BZQ71iS403..5F..GCC202205

UAE

55210ACLIP

main9004A-46131-B0×2iS403..RHD202205

DK.GRAY

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-BZ120iS403202205

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ070iS403..RHD202205

main55215-BZ150iS403..LHD202205

5752

85373BZ060HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-BZ060

9004A10239

main9004A-10239

9004A10246

main9004A-10246

9004A10275

main9004A-10275

9004A10320

main9004A-10320

9004A11281

main9004A-11281

9004A17221

main9004A-17221

9004A17233

main9004A-17233

9004A17259

main9004A-17259

27 parts on this diagram · 2 diagrams in section
