Toyota LITEACE — FRONT DOOR WINDOW REGULATOR & HINGE

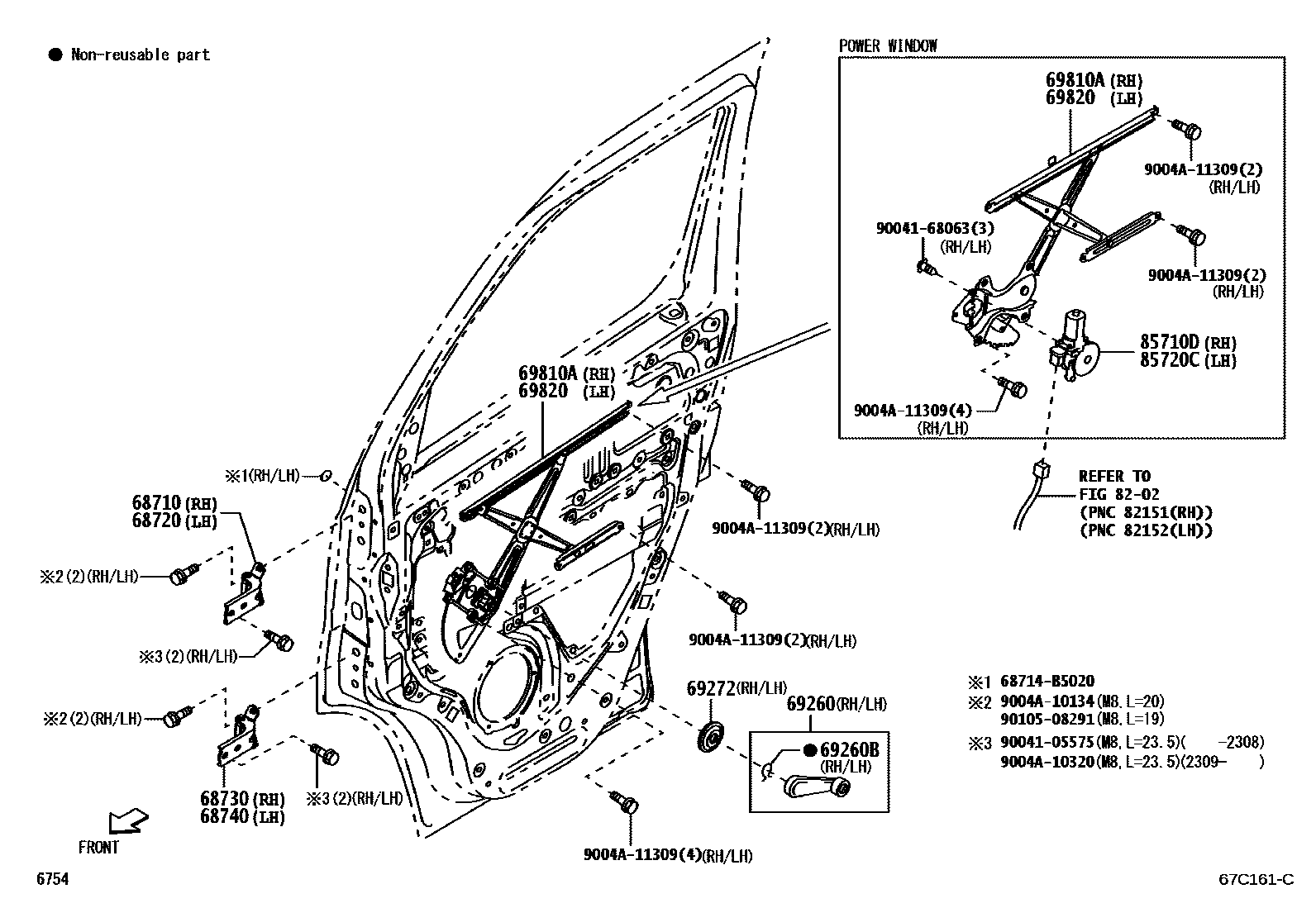

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68720-BZ051i202205

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-BZ071i202205

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-BZ071i202205

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68720-BZ051i202205

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87Z03-C0×2i202205

A/C P/S A/B ABS PACK,BLACK,TRIM1#; BLACK,TRIM1#; G + IMMOBI,BLACK,TRIM1#; G - ABS + VSC CNT-LOCK,BLACK,TRIM1#; G - ABS,BLACK,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i202205

A/C P/S A/B ABS PACK; G + IMMOBI; G - ABS; G - ABS + VSC CNT-LOCK

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-BZ020-C0×2i202205

A/C P/S A/B ABS PACK,BLACK,TRIM1#; BLACK,TRIM1#; G + IMMOBI,BLACK,TRIM1#; G - ABS + VSC CNT-LOCK,BLACK,TRIM1#; G - ABS,BLACK,TRIM1#

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-BZ090i202205

main69810-BZ121i202205

A/C P/S A/B ABS PACK; G + IMMOBI; G - ABS; G - ABS + VSC CNT-LOCK

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-BZ080i202205

main69802-BZ220i202205

main69820-BZ121i202205

A/C P/S A/B ABS PACK; G + IMMOBI; G - ABS; G - ABS + VSC CNT-LOCK

8202WIRING & CLAMP

→ Go to FIG 82-02

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ041i202205

main85710-BZ141i202205

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ041i202205

main85720-BZ170i202205

68714B5020

main68714-B5020

9004105575

main90041-05575

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A10320

main9004A-10320

9004A11309

main9004A-11309

9010508291

main90105-08291

19 parts on this diagram · 2 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LITEACE

This section contains 22 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LITEACE. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
