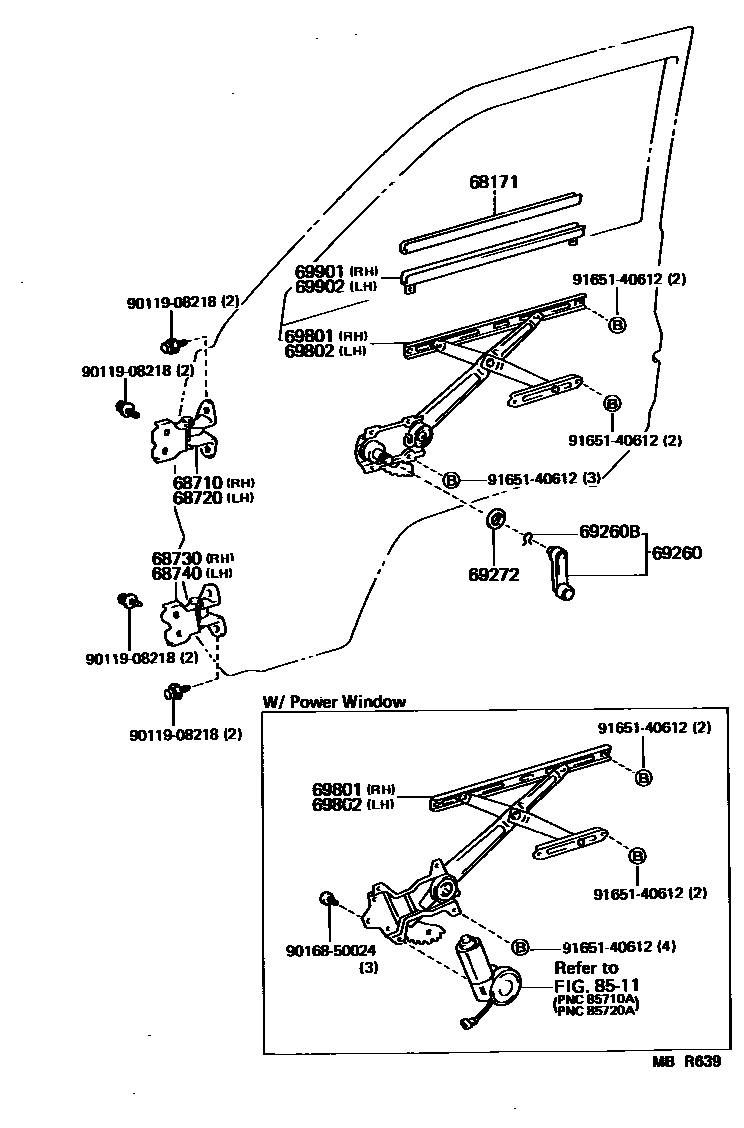

Toyota LITEACE — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2i198808-199804

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702i198808-199804

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702i198808-199804

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702i198808-199804

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702i198808-199804

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95702-03×2i199302-199804

GRAY,TRIM1#

main69260-95702-26×2i198808-199201

SABLE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i198808-199302

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2i198808-199302

NATURAL WHITE,TRIM1#; NATURAL WHITE,TRIM1#,4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95701i199302-199804

main69810-95704i198808-199302

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95701i199302-199804

main69820-95704i198808-199302

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002i198808-199804

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002i198808-199804

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908218

main90119-08218

9016850024

main90168-50024

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LITEACE

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LITEACE. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
