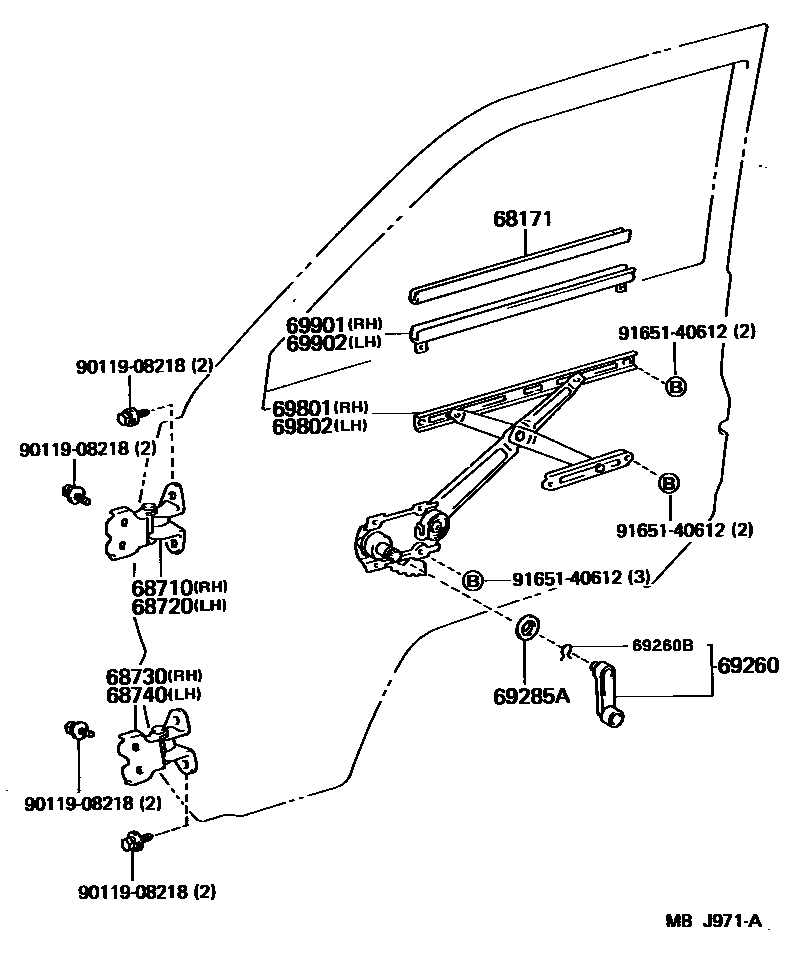

Toyota LITEACE — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2i198509-198808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702i198509-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702i198509-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702i198509-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702i198509-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95702-14×2i198509-198808

BLUE,BLUE

main69260-95702-16×2i198509-198808

BROWN,BROWN

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002i198509-198808

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08×2i198509-198808

NATURAL,NATURAL WHITE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95704i198509-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95704i198509-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002i198509-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002i198509-198808

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LITEACE

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LITEACE. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
