Toyota LITEACE — FRONT DOOR PANEL & GLASS

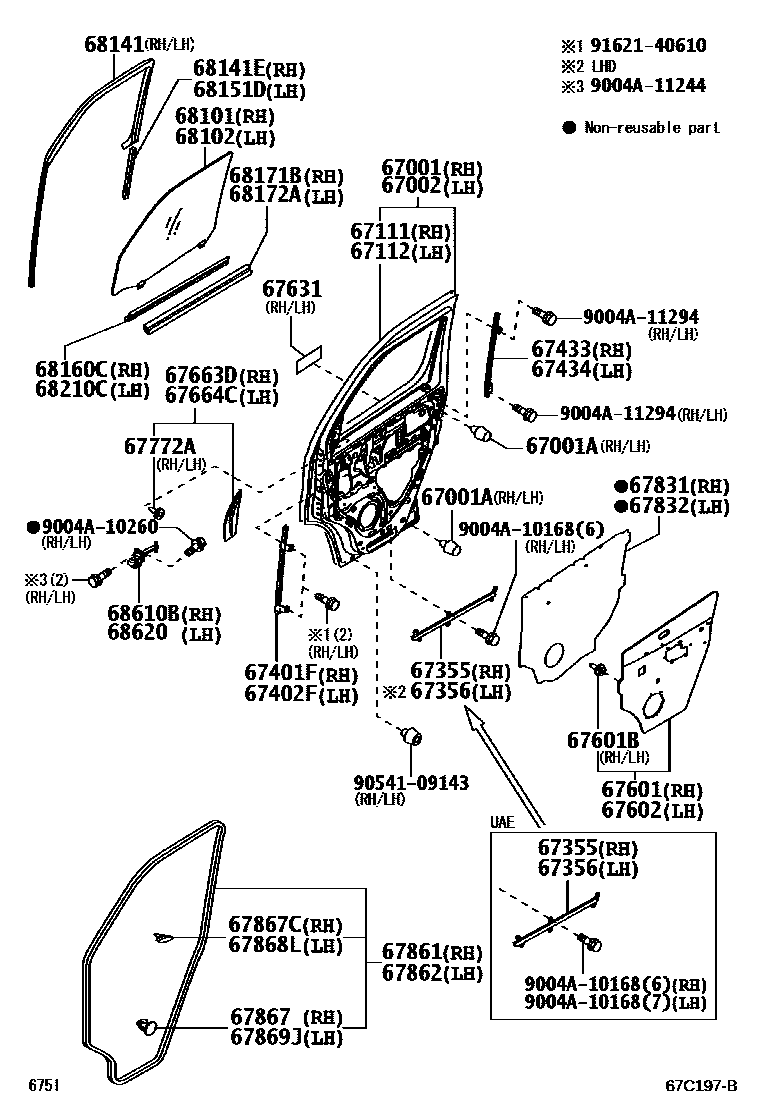

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-BZ201i202205
main67001-BZ221i202205
67001ACUSHION, FRONT DOOR PANEL
main90541-09069×4i202205
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-BZ192i202205
A/C P/S A/B ABS PACK; G + IMMOBI; G - ABS
main67002-BZ830i202205
main67002-BZ730supersedes 67002-BZ820i202205
UAE
67111PANEL, FRONT DOOR, OUTER RH
main67111-BZ110i202205
67112PANEL, FRONT DOOR, OUTER LH
main67112-BZ110i202205
67355REINFORCEMENT, FRONT DOOR REAR FRAME, RH
main67315-BZ050i202205
67356REINFORCEMENT, FRONT DOOR REAR FRAME, LH
main67316-BZ040i202205
main67306-BZ010i202205
UAE
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-BZ030i202205
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-BZ030i202205
main67402-BZ060i202205
A/C P/S A/B ABS PACK; G + IMMOBI; G - ABS
67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH
main67403-BZ040i202205
67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH
main67404-BZ040i202205
main67404-BZ060i202205
UAE
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-BZ202-B1i202205
-,TRIM1#; A/C P/S A/B ABS PACK&POWER WINDOW-W/O,-,TRIM1#; G + IMMOBI&POWER WINDOW-W/O,-,TRIM1#; G - ABS + VSC CNT-LOCK&POWER WINDOW-W/O,-,TRIM1#; G - ABS&POWER WINDOW-W/O,-,TRIM1#
main67610-BZ430i202205-202208
G + IMMOBI&POWER WINDOW-W/O
main67610-BZ430-B1i202208
-,TRIM1#; G + IMMOBI&POWER WINDOW-W/O,-,TRIM1#
main67610-BZE60-B0i202205
GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main67771-BZ070×34i202205
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-BZ212i202205-202208
G + IMMOBI&POWER WINDOW-W/O
main67620-BZ212-B1i202208
-,TRIM1#; G + IMMOBI&POWER WINDOW-W/O,-,TRIM1#
main67620-BZ430-B1i202205
-,TRIM1#; A/C P/S A/B ABS PACK&POWER WINDOW-W/O,-,TRIM1#; G + IMMOBI&POWER WINDOW-W/O,-,TRIM1#; G - ABS + VSC CNT-LOCK&POWER WINDOW-W/O,-,TRIM1#; G - ABS&POWER WINDOW-W/O,-,TRIM1#
main67620-BZE60-B0i202205
GRAY,TRIM1#
67631SEAL, DOOR TRIM PANEL(FOR FRONT DOOR)
main75975-BZ010×2i202205
67663DGARNISH, DOOR FRAME, RH
main67663-BZ010i202205
67664CGARNISH, DOOR FRAME, LH
main67664-BZ010i202205
67772ACAP, FRONT DOOR TRIM RETAINER
main67772-87Z02×2i202205
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-BZ120i202205
BOLIVIA&G + IMMOBI; G + IMMOBI; GENERAL LHD&G + IMMOBI; PHILIPPINE&A/C P/S A/B ABS PACK; PHILIPPINE&G - ABS; PHILIPPINE&G - ABS + VSC CNT-LOCK
main67831-BZ160i202205
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-BZ120i202205
BOLIVIA&G + IMMOBI; G + IMMOBI; GENERAL LHD&G + IMMOBI; PHILIPPINE&A/C P/S A/B ABS PACK; PHILIPPINE&G - ABS; PHILIPPINE&G - ABS + VSC CNT-LOCK
main67831-BZ160i202205
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-BZ080i202205
main67861-BZ100i202205
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-BZ060i202205
main67862-BZ080i202205
67867CLIP, DOOR WEATHERSTRIP
main90467-06084i202205
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-BZ010×35i202205
67868LRETAINER, DOOR WEATHERSTRIP, LH
main67868-BZ010×36i202205
67869JCLIP, FRONT DOOR WEATHERSTRIP
main90467-06084i202205
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-BZ160i202205
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-BZ150i202205
68141RUN, FRONT DOOR GLASS
main68141-BZ060i202205
RH
main68151-BZ060i202205
LH
68141ERUN, FRONT DOOR GLASS, RH
main68143-BZ030i202205
68151DRUN, FRONT DOOR GLASS, LH
main68143-BZ030i202205
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
main68161-BZ070i202205
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-BZ090i202205
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-BZ070i202205
main68172-BZ100i202205
UAE
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
main68162-BZ060i202205
68610BCHECK ASSY, FRONT DOOR, RH
main68610-BZ090i202205
68620CHECK ASSY, FRONT DOOR, LH
main68610-BZ090i202205
9004A10168
main9004A-10168
9004A10260
main9004A-10260
9004A11244
main9004A-11244
9004A11294
main9004A-11294
9054109143
main90541-09143
9162140610
main91621-40610

43 parts on this diagram · 1 diagram in section

FRONT DOOR PANEL & GLASS for Toyota LITEACE

This section contains 43 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota LITEACE. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH.
