Toyota LITEACE — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-87402iKM20..ARL; KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101
main67001-87404iKM20..V..4F;KM20..HRF..4H..05S;KM20..HRF..VSP..4H..EUR;KM20..LHD..V..SRF..4H..EUR198101-198111
FULL TRIM
PHILIPPINE SPEC,FULL TRIM
67002PANEL SUB-ASSY, FRONT DOOR, LH
FULL TRIM
FULL TRIM
PHILIPPINE SPEC,FULL TRIM
67111PANEL, FRONT DOOR, OUTER RH
main67111-95970iCM20,KM20,YM2#..RHD; CM20..LHD..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..4F198307-198508
67112PANEL, FRONT DOOR, OUTER LH
main67112-95970iCM20,KM20..LHD..GEN; CM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198307-198508
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-95705iKM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)197910-198210
SEMI TRIM
FULL TRIM
W/SPEAKER
FULL TRIM
main67610-95726iCM20,KM20,YM20..GEN; CM20,KM20,YM21..02S..ARL; KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)198409-198508
*PHS,FULL TRIM
W/SPEAKER
FINLAND SPEC
*PHS,FULL TRIM,W/SPEAKER
*PHS,FULL TRIM,BEIGE,BEIGE; BEIGE,BEIGE
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
BROWN,BROWN
*PHS,FULL TRIM,BEIGE,BEIGE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-95702iKM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)197910-198210
SEMI TRIM
FULL TRIM,BROWN,BROWN
FULL TRIM,DARK BROWN,BROWN
W/SPEAKER
main67620-95721iCM20,KM20,YM20..GEN; CM20,KM20,YM21..02S..ARL; KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)198409-198508
W/SPEAKER
*PHS,FULL TRIM
FINLAND SPEC
*PHS,FULL TRIM,W/SPEAKER
BEIGE,BEIGE
*PHS,FULL TRIM,BEIGE,BEIGE; BEIGE,BEIGE
67651BOARD, FRONT DOOR TRIM, LOWER RH
FULL TRIM,BROWN,BROWN
FULL TRIM,BEIGE,BEIGE
BEIGE
SEMI TRIM
PHILIPPINE SPEC,FULLTRIM,BEIGE,BEIGE
67652BOARD, FRONT DOOR TRIM, LOWER LH
FULL TRIM,BROWN,BROWN
FULL TRIM,BEIGE,BEIGE
BEIGE
FULL TRIM
SEMI TRIM
PHILIPPINE SPEC,FULLTRIM,BEIGE,BEIGE
67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
SEMI TRIM,BLACK,BLACK
SEMI TRIM,BLACK,BLACK
FULL TRIM
FULL TRIM,BEIGE,BEIGE
67786RETAINER, DOOR LOCKING BUTTON COLLAR
67831COVER, FRONT DOOR SERVICE HOLE, RH
W/SPEAKER
67832COVER, FRONT DOOR SERVICE HOLE, LH
W/SPEAKER
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0
*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0
*TT,T=4.0
68141RUN, FRONT DOOR GLASS
L=1853
L=1853
L=457
L=457
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
RH
LH
LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
4741987001PLUG, HOLE(FOR FRONT BRAKE)
main47419-87001
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777189101WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89101
6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95J02
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)
main68211-89103
9015940160
main90159-40160
9017906070
main90179-06070
9033325001
main90333-25001
9095001056
main90950-01056
9095001150
main90950-01150
9095006001
main90950-06001
9152140610
main91521-40610

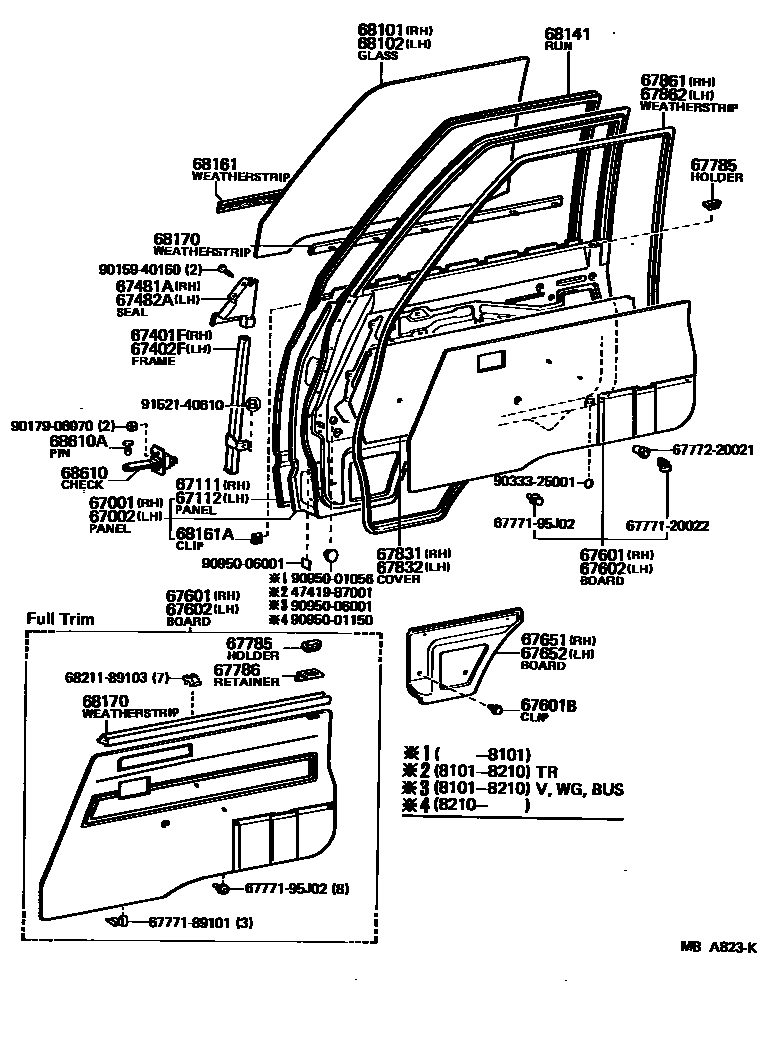

40 parts on this diagram · 1 diagram in section
FRONT DOOR PANEL & GLASS for Toyota LITEACE
This section contains 40 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota LITEACE. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
