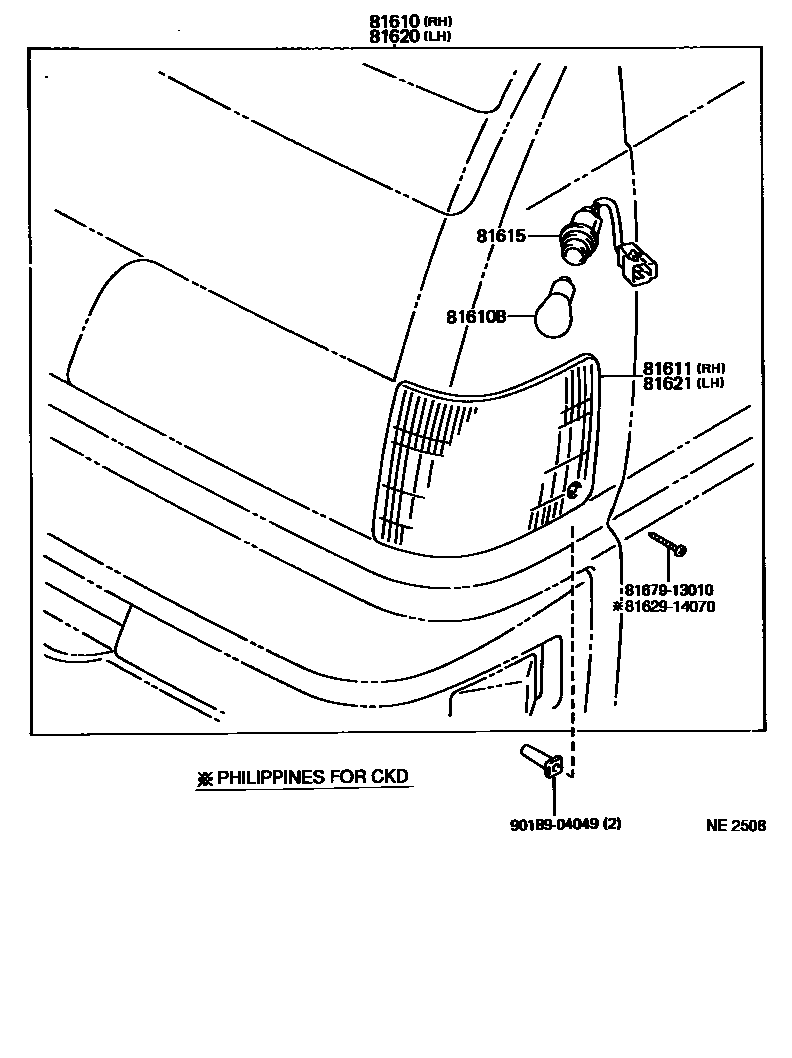

Toyota LITEACE — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-27010i199604-199804

PHILIPPINES CKD

main81610-95700i199108-199804

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-13036×2i199108-199804

12V 35/5W

main99132-12050×2i199604-199804

12V 5W,PHILIPPINES CKD

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-95700i199107-199108

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-27010×2i199604-199804

PHILIPPINES CKD

main81615-95700×2i199108-199804

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-27010i199604-199804

PHILIPPINES CKD

main81620-95700i199108-199804

main81620-95701i199109-199804

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-95700i199604-199804

PHILIPPINES CKD

main81621-95701i199109-199804

8162914070

main81629-14070

8167913010BRACKET, BACK UP LAMP BODY

main81679-13010

9018904049

main90189-04049

9 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota LITEACE

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota LITEACE. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
