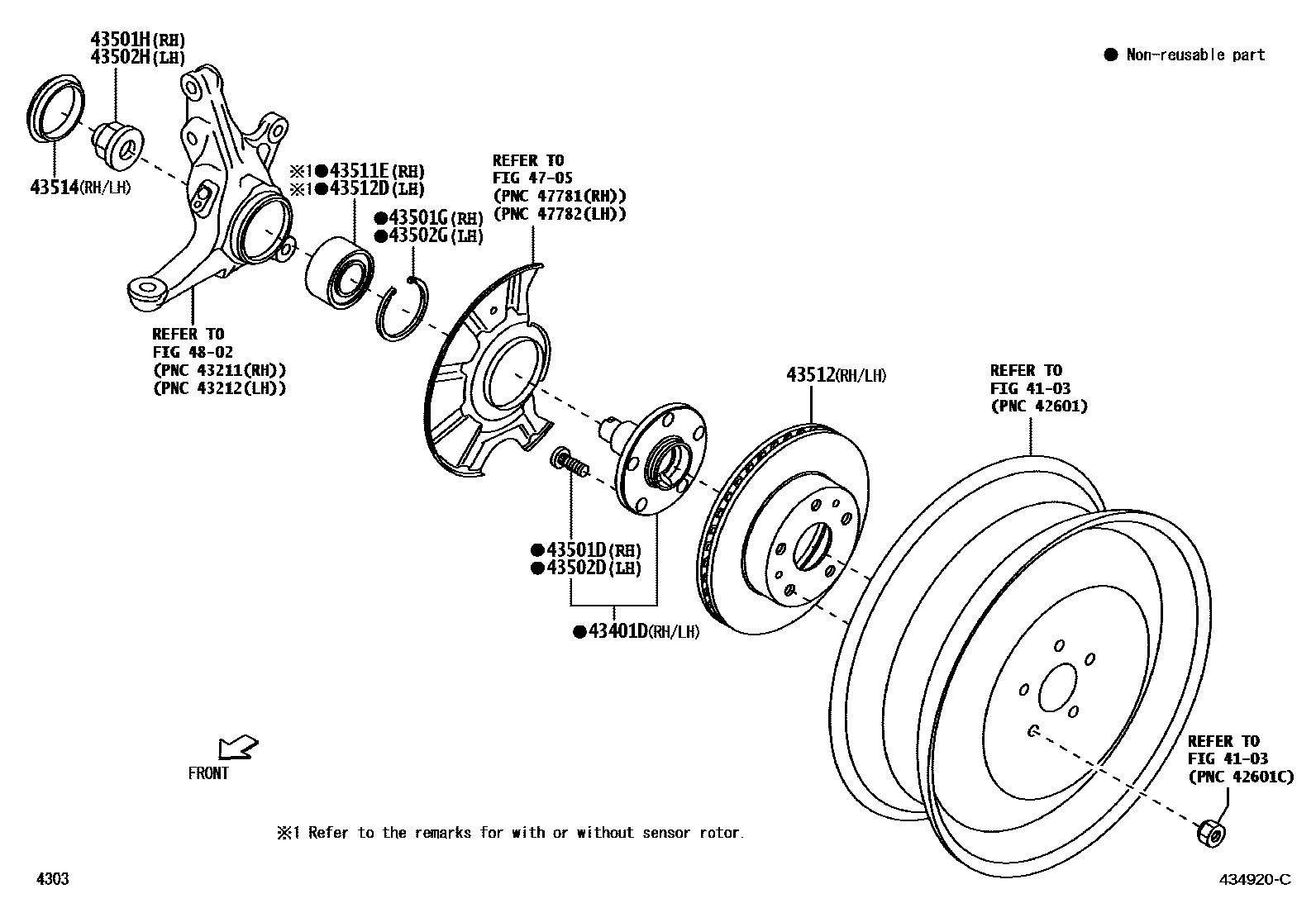

Toyota LITEACE — FRONT AXLE HUB

4103

43401DSPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-BZ060×2iS403202205

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×5iS403202205

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iS403202205

43501HNUT (FOR FRONT AXLE SHAFT RH)

main9004A-17227iS403202205

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×5iS403202205

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iS403202205

43502HNUT (FOR FRONT AXLE SHAFT LH)

main9004A-17227iS403202205

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ050iS403202205

W/SENSOR ROTOR

main43560-BZ060iS403..LHD..T2..GEN202205

PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM),W/O SENSOR ROTOR

43512DISC, FRONT

main43512-BZ380×2iS403202205

W/PAINT

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ050iS403202205

W/SENSOR ROTOR

main43560-BZ060iS403..LHD..T2..GEN202205

PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM),W/O SENSOR ROTOR

43514CAP, FRONT HUB GREASE

main43514-BZ030×2iS403202205

4705

4802

14 parts on this diagram · 1 diagram in section
