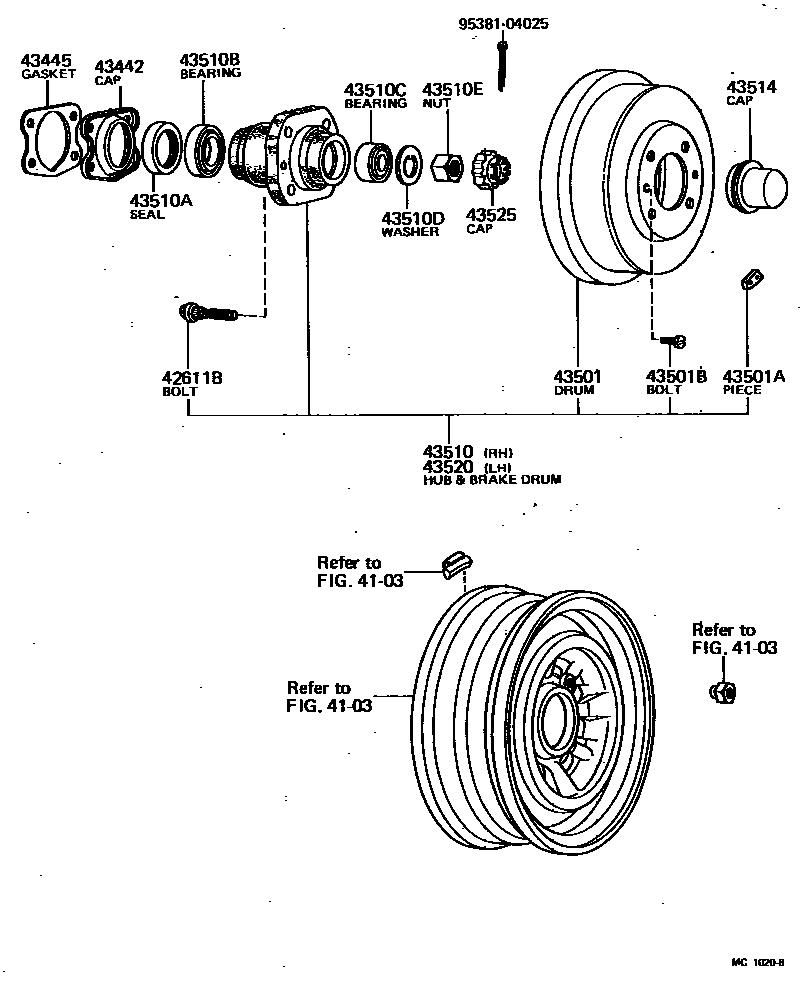

Toyota LITEACE — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021i197105-197703

12-1.5PX38-24

main90942-02037i197703-197909

12-1.5PX40-27.5

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20010i197105-197110

main43442-20020i197110-197909

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20010i197105-197110

T=1.0

main43445-20020i197110-197909

T=1.0

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-22021i197105-197110

main42431-27010i197110-197309

main42431-27011i197309-197909

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01096i197105-197909

8.5G,8.5G.

main90937-01097i197105-197909

16.5G,16.5G.

main90937-01098i197105-197909

24.5G,24.5G.

main90937-01099i197105-197909

32.5G,32.5G.

main90937-01100i197105-197909

40.5G,40.5G.

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007i197105-197909

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-22041i197105-197110

main43510-27010i197110-197909

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108i197105-197909

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26013i197105-197909

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017i197105-197909

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010i197105-197909

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137i197105-197909

43514CAP, FRONT HUB GREASE

main43514-20010i197105-197909

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-22041i197105-197110

main43510-27010i197110-197909

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011i197105-197909

9538104025

main95381-04025

17 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LITEACE

This section contains 17 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LITEACE. Key components include: DISC WHEEL & WHEEL CAP, BOLT, HUB (FOR FRONT AXLE), CAP, KNUCKLE GREASE RETAINER, INNER, GASKET, KNUCKLE GREASE RETAINER CAP, DRUM SUB-ASSY, FRONT BRAKE.
