Toyota LITEACE — EXHAUST GAS RECIRCULATION SYSTEM

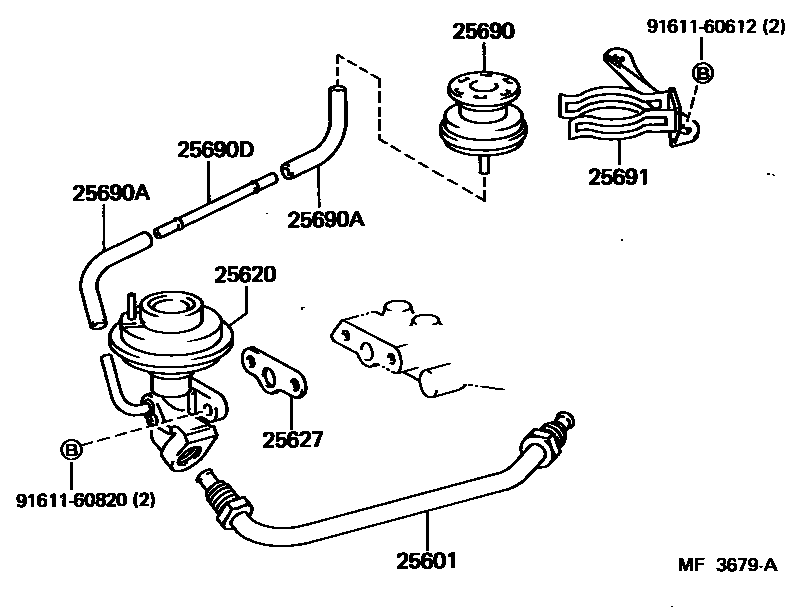

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13010i198509-198808

25620VALVE ASSY, EGR

main25620-13010i198805-198808

main25620-13330i198509-198805

main25620-71010i198805-198808

main25620-71020i198509-198805

main25620-73030i198509-198805

25627GASKET, EGR VALVE

main25627-13010i198509-198808

main25627-71010i198509-198808

25690MODULATOR ASSY, EGR VACUUM

main25870-13110i198509-198805

main25870-13130i198805-198808

main25870-71010i198509-198606

main25870-71011i198606-198805

main25870-71040i198509-198606

main25870-71041i198606-198805

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-13030i198509-198808

EGR VALVE SIDE

main90445-05002i198509-198808

MODULATOR SIDE

main90445-11078i198509-198808

25690DPIPE(FOR EGR VACUUM MODULATOR)

main25614-13010i198509-198808

25691BRACKET, EGR VACUUM MODULATOR

main25691-13040i198509-198808

main25691-71030i198509-198808

9161160612

main91611-60612

9161160820

main91611-60820

9 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota LITEACE

This section contains 11 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota LITEACE. Key components include: PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE, MODULATOR ASSY, EGR VACUUM, HOSE(FOR EGR VACUUM MODULATOR).
