Toyota LITEACE — ENGINE OIL PUMP

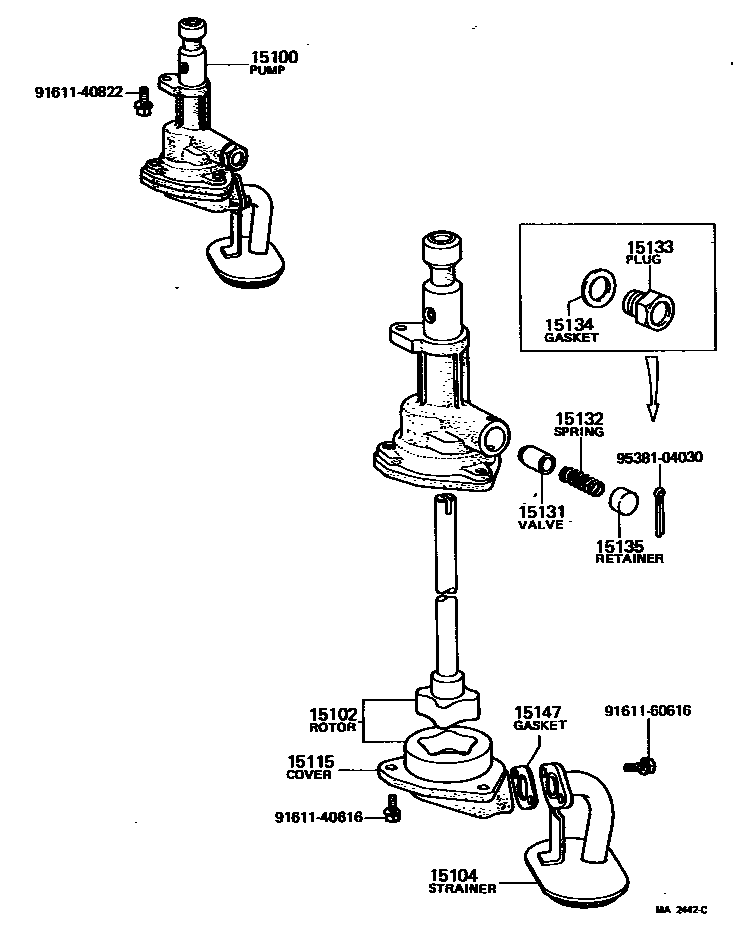

Parts diagram

15100PUMP ASSY, OIL

main15100-22010i197105-197202

main15100-22011i197202-197404

main15100-24010i197404-197410

main15100-24011i197410-197705

main15100-24012i197705-197908

main15100-24013i197908-197909

15102ROTOR SET, OIL PUMP

main15102-22010i197105-197404

main15102-24010i197404-197909

15104STRAINER SUB-ASSY, OIL

main15104-22010i197105-197202

main15104-22011i197202-197909

15115COVER, OIL PUMP

main15115-22010i197105-197909

15131VALVE, OIL PUMP RELIEF

main15131-22010i197105-197106

main15131-24010i197106-197909

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i197105-197909

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i197105-197106

main15133-24010i197106-197705

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i197105-197604

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-13010i197705-197909

15147GASKET, OIL STRAINER

main15147-40010i197105-197909

9161140616

main91611-40616

9161140822

main91611-40822

9161160616

main91611-60616

9538104030

main95381-04030

14 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota LITEACE

This section contains 14 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota LITEACE. Key components include: PUMP ASSY, OIL, ROTOR SET, OIL PUMP, STRAINER SUB-ASSY, OIL, COVER, OIL PUMP, VALVE, OIL PUMP RELIEF.
