Toyota LITEACE — ELECTRONIC FUEL INJECTION SYSTEM

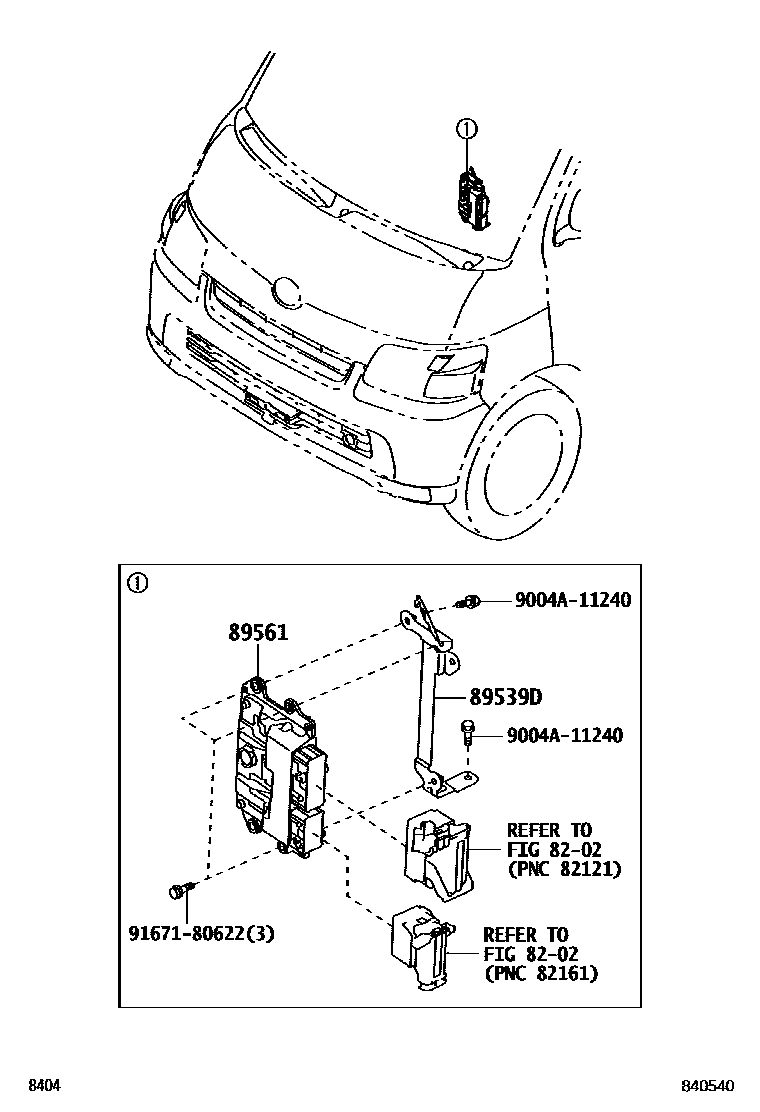

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89539DBRACKET, COMPUTER

main89539-BZ490i202205

89561COMPUTER, FUEL INJECTION

main89560-BXD10i202205

DENSO,W/PART NUMBER LABEL

main89560-BXD20i202205

DENSO,W/PART NUMBER LABEL

main89560-BXD20i202205

DENSO,SRILANKA&G + P/W PACK,W/PART NUMBER LABEL

main89560-BXD40i202205

DENSO,W/PART NUMBER LABEL

main89560-BXD60i202205-202408

DENSO,W/PART NUMBER LABEL

main89560-BXD61i202409

main89560-BXD80i202205

DENSO,W/PART NUMBER LABEL

main89560-BXE00i202205

DENSO,W/PART NUMBER LABEL

main89560-BXE10i202205-202408

DENSO,W/PART NUMBER LABEL

main89560-BXE11i202409

main895E0-BZ620i202205

DENSO

main895E0-BZ620i202205

DENSO,G+KEYLES IMOBI PW CNTLOCK

main895E0-BZ620i202205

DENSO,BOLIVIA&G + IMMOBI

main895E0-BZ620i202205

DENSO,GENERAL LHD&G + IMMOBI

main895E0-BZ630i202205

DENSO

main895E0-BZ630i202205

DENSO,G+KEYLES IMOBI PW CNTLOCK

9004A11240

main9004A-11240

9167180622

main91671-80622

5 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota LITEACE

This section contains 5 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota LITEACE. Key components include: WIRING & CLAMP, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION.
