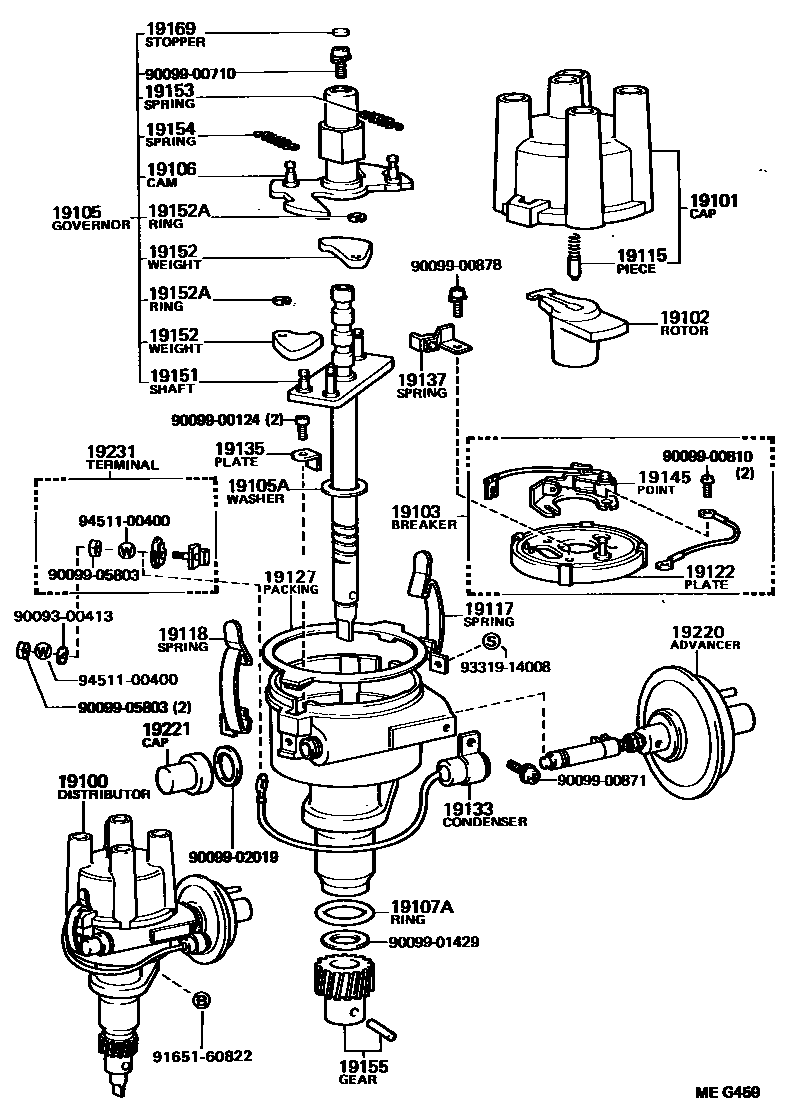

Toyota LITEACE — DISTRIBUTOR
19100DISTRIBUTOR ASSY
SINGAPORE SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19103BREAKER SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
SINGAPORE SPEC
19105AWASHER(FOR GOVERNOR SHAFT THRUST)
T=2.5,T=2.5
T=2.7,T=2.7
T=2.9,T=2.9
T=2.3,T=2.3
T=0.3,T=0.3
T=0.4,T=0.4
T=0.6,T=0.6
T=0.5,T=0.5
19106CAM SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
sub90099-14090
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
NO.1
NO.2
19133CONDENSER, DISTRIBUTOR
19135PLATE, HOLDER
19137SPRING SUB-ASSY, DAMPER
19145POINT, DISTRIBUTOR
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
SINGAPORE SPEC
19154SPRING, GOVERNOR, B
SINGAPORE SPEC
19169STOPPER, CAM GREASE
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
19221CAP, ADJUSTER, DISTRIBUTOR
19231TERMINAL, DISTRIBUTOR
9009300413
main90093-00413
9009900124
main90099-00124
9009900710
main90099-00710
9009900810
main90099-00810
9009900871
main90099-00871
9009900878
main90099-00878
9009901429
main90099-01429
9009902019
main90099-02019
9009905803
main90099-05803
9165160822
main91651-60822
9331914008
main93319-14008
9451100400
main94511-00400
39 parts on this diagram · 3 diagrams in section
