Toyota LITEACE — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
11711BEARING, CRANKSHAFT
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
13011RING SET, PISTON
STD
STD
STD
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
13101PISTON SUB-ASSY, W/PIN
STD,MALAYSIA SPEC,MARK 1; STD,MARK 1
STD,SINGAPORE SPEC,MARK 2
STD,MALAYSIA SPEC,MARK 3; STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK1
STD,MARK2
STD,MARK3
O/S 0.50,SINGAPORE SPEC
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.75
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
3101CLUTCH & RELEASE FORK
26 parts on this diagram · 3 diagrams in section

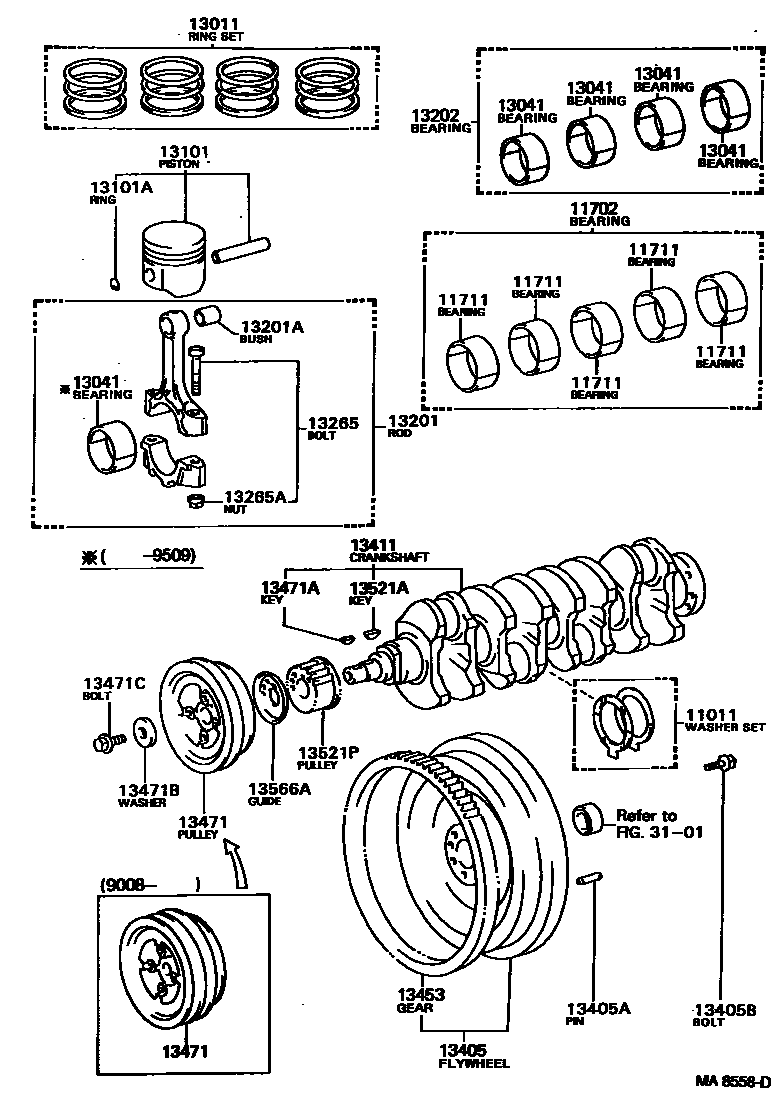

CRANKSHAFT & PISTON for Toyota LITEACE
This section contains 28 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota LITEACE. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
