Toyota LITEACE — CONSOLE BOX & BRACKET

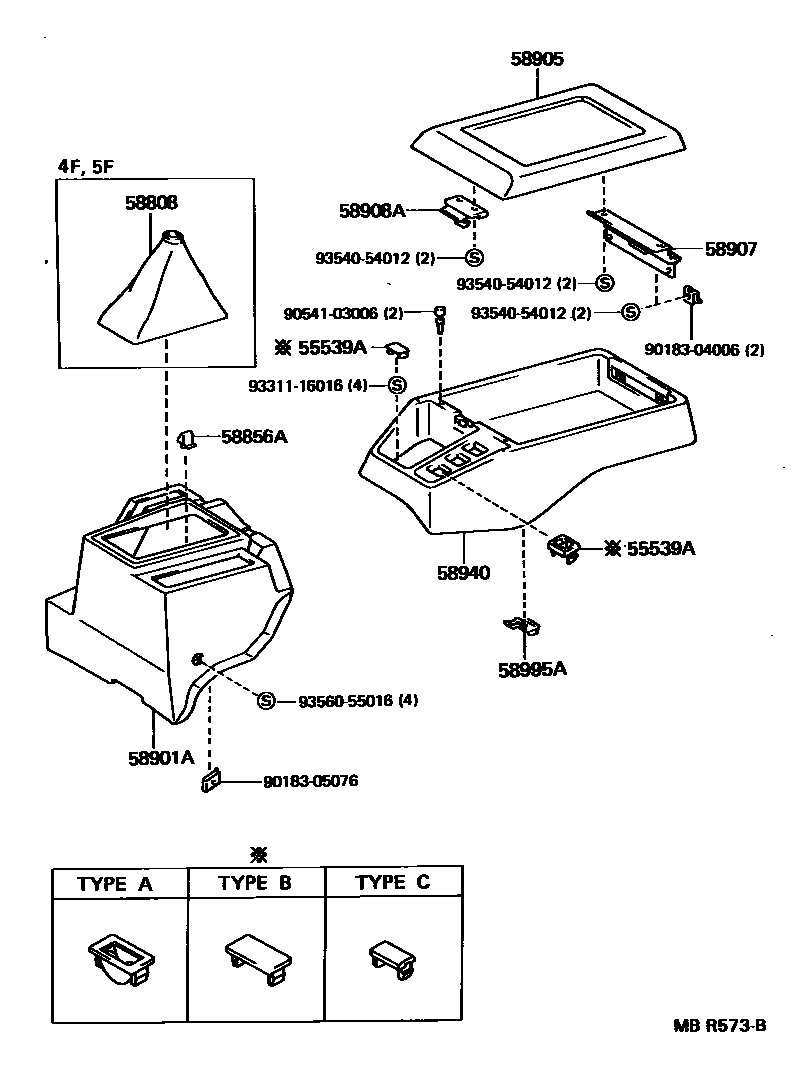

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-20020-03i198808-199107
SHADOW GRAY,TRIM1#,TYPE A
main55539-20020-36i198808-199201
SABLE,TRIM4#,TYPE A
main55539-20020-P0i199208-199804
SHADOW GRAY,TRIM1#,TYPE A
main55539-24010-13×2i199107-199804
GRAY,TRIM1#,TYPE B
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-46×2i198808-199201
SABLE,TRIM4#,TYPE B
sub55539-32010
sub55539-14030
sub55539-20030
main74617-16010-33×4i199107-199804
SHADOW GRAY,TRIM1#,TYPE C
main74617-16010-58×4i198808-199201
SABLE,TRIM4#,TYPE C
main74617-16010-P3×4i199107-199804
GRAY,TRIM1#,TYPE C
58808COVER SUB-ASSY, SHIFTING HOLE
main58840-95701-06i198808-199201
SABLE,TRIM4#
main58840-95701-13i198808-199804
GRAY,TRIM1#
58856AHOLDER, CONSOLE BOX
main58856-95700×2i198808-199804
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-95704-03i198808-199201
GRAY,TRIM1#
main58901-95704-16i198808-199201
SABLE,TRIM4#
main58901-95707-13i198808-199804
GRAY,TRIM1#
main58901-95709-03i198808-199804
GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58951-95J00-03i199108-199804
GRAY,TRIM1#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-95J00i199108-199206
sub58907-95J02
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-95703i199108-199804
58940CONSOLE ASSY, REAR
main58810-95702-03i198808-199107
GRAY,TRIM1#
main58810-95702-16i198808-199201
SABLE,TRIM4#
main58810-95703-03i199001-199804
GRAY,TRIM1#
main58811-95715-03i199108-199804
GRAY,TRIM1#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-95703i199107-199804
9018304006
main90183-04006
9018305076
main90183-05076
9054103006
main90541-03006
9331116016
main93311-16016
9354054012
main93540-54012
9356055016
main93560-55016

15 parts on this diagram · 1 diagram in section
