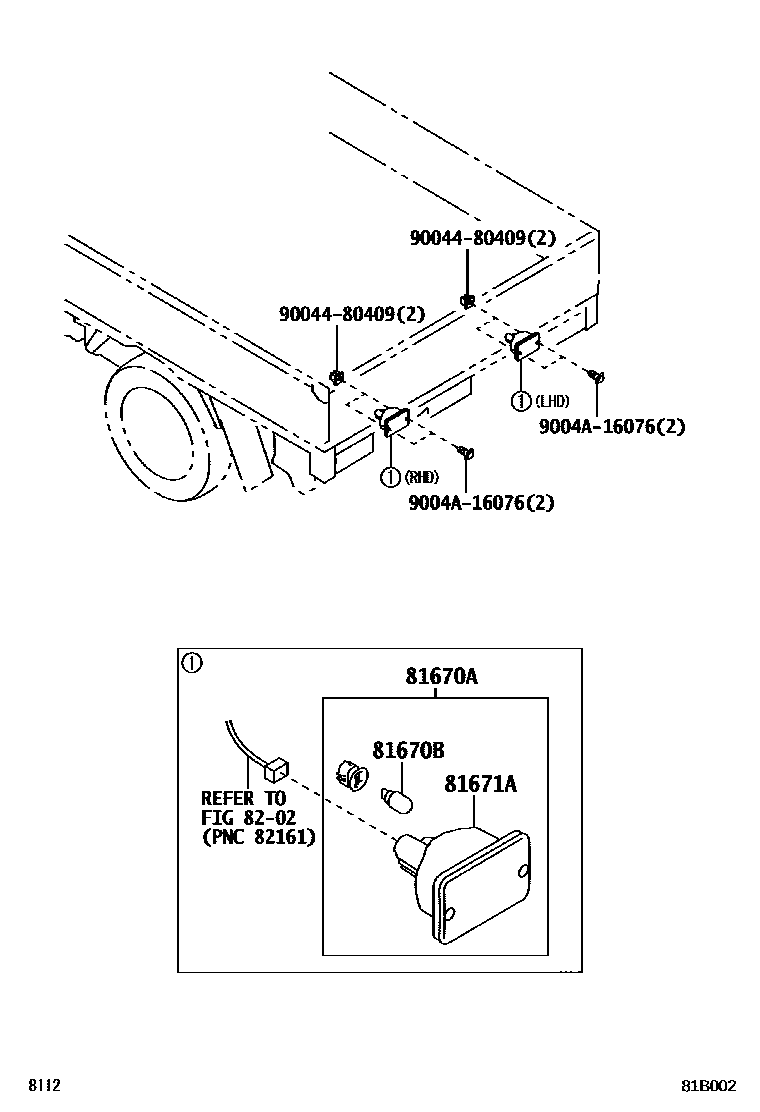

Toyota LITEACE — BACK UP LAMP

81670ALAMP ASSY, BACK-UP

main81670-BZ020i202205

81670BBULB(FOR BACK-UP LAMP)

main9004B-81022i202205

81671ALENS & BODY, BACK-UP LAMP

main81671-BZ020i202205

8202WIRING & CLAMP

→ Go to FIG 82-02

9004480409

main90044-80409

9004A16076

main9004A-16076

6 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota LITEACE

This section contains 6 genuine Toyota parts for the BACK UP LAMP system of the Toyota LITEACE. Key components include: LAMP ASSY, BACK-UP, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, WIRING & CLAMP.
