Toyota LITEACE — ARMREST & VISOR

69285BHANDLE, PULL

main69285-95700-03×2iCM36,KM36,37,YM35198808-199804

GRAY,TRIM1#

sub69285-95404

74210ARMREST ASSY, FRONT, RH

main74210-12110-03iKM30,YM30198808-199009

GRAY,TRIM1#

main74210-12110-26iYM30198808-199201

SABLE,TRIM4#

main74210-12110-B1iKM30,YM30,31199009-199804

SHADOW GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74210-12110-03iKM30,YM30198808-199009

GRAY,TRIM1#

main74210-12110-26iYM30198808-199201

SABLE,TRIM4#

main74210-12110-B1iKM30,YM30,31199009-199804

SHADOW GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-95717-13iCM36,KM36,YM35..ARL198808-199201

GRAY,TRIM1#

main74310-95718-13iCM36,KM36,37,YM31,35..GEN198808-199804

GRAY,TRIM1#

main74310-95735-03iKM30199001-199804

GRAY,TRIM1#

main74310-95736-03iYM30198808-199201

GRAY,TRIM1#

main74310-95736-06iYM30198808-199201

SABLE,TRIM4#

74320VISOR ASSY, LH

main74320-95708-13iCM36,KM36,YM35..ARL198808-199201

GRAY,TRIM1#

main74320-95709-13iKM36..SRF..05S;CM36,YM35..5F..GEN199107-199108

GRAY,TRIM1#

main74320-95719-03iKM30199001-199804

GRAY,TRIM1#

main74320-95720-03iYM30198808-199201

GRAY,TRIM1#

main74320-95720-06iYM30198808-199201

SABLE,TRIM4#

74325COVER, VISOR BRACKET

main74325-95J00-03iCM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN198808-199804

GRAY,TRIM1#

sub74318-25010

74348HOLDER, VISOR

main74348-12010-23iCM36..5H;KM37,YM35..GEN;CM36,KM36..SRF..GEN199105-199611

GRAY,TRIM1#

sub74348-30010

main74348-12010-E0×2iYM30199105-199201

SABLE,TRIM4#

sub74348-30010

main74348-12020-B0×2iKM30199105-199804

GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-32010-03×2iKM36..4F;KM36,YM35..VSP..ARL;CM36,KM30,36,YM30..MRF..(4FC,4H,5F)198808-199105

LIGHT GRAY,TRIM1#

sub74348-17010

main74348-32010-06×2iYM30198808-199105

SABLE,TRIM4#

sub74348-17010

74603BCLIP (FOR ASSIST GRIP)

main90467-05020-01×2iCM36..5H;CM36..SRF;CM36..ARL;KM37,YM35;KM36..SRF..(4H,5F)198808-199804

BLACK,TRIM1#

sub90467-05027

main90467-05020-23×2iCM36..5H;CM36..SRF;CM36..ARL;KM37,YM35;KM36..SRF..(4H,5F)198808-199804

GRAY,TRIM1#

sub90467-05027

74603CGRIP SUB-ASSY, ASSIST

main74603-95702-03×2iYM35;CM36..02S;CM36..(4F,5H)..05S;KM36..SRF..(4H,5F)198808-199001

W(FRONT PILLAR GARNISH),GRAY,TRIM1#

main74603-95702-06×2iYM30198808-199201

SABLE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-12030-23×2iCM36,KM36..SRF..5F199001-199107

MALAYSIA CKD SPEC,GRAY,TRIM1#

sub74610-16010

sub74603-16010

main74610-12030-26×2iYM30198808-199201

SABLE,TRIM4#

sub74610-16010

sub74603-16010

74617CPLUG, ASSIST GRIP

main74617-16010-33×6iKM37198808-199201

SHADOW GRAY,TRIM1#

main74617-16010-46×8iYM30198808-199201

SABLE,TRIM4#

main74617-16010-P3×2iKM36..4F;CM36,KM36,YM30..RHD..MRF..(05S,08S)198808-199804

GRAY,TRIM1#

9015260005

main90152-60005

9016460006

main90164-60006

9018906018

main90189-06018

9018906020

main90189-06020

9046706013

main90467-06013

9323046016

main93230-46016

9331116020

main93311-16020

9351056020

main93510-56020

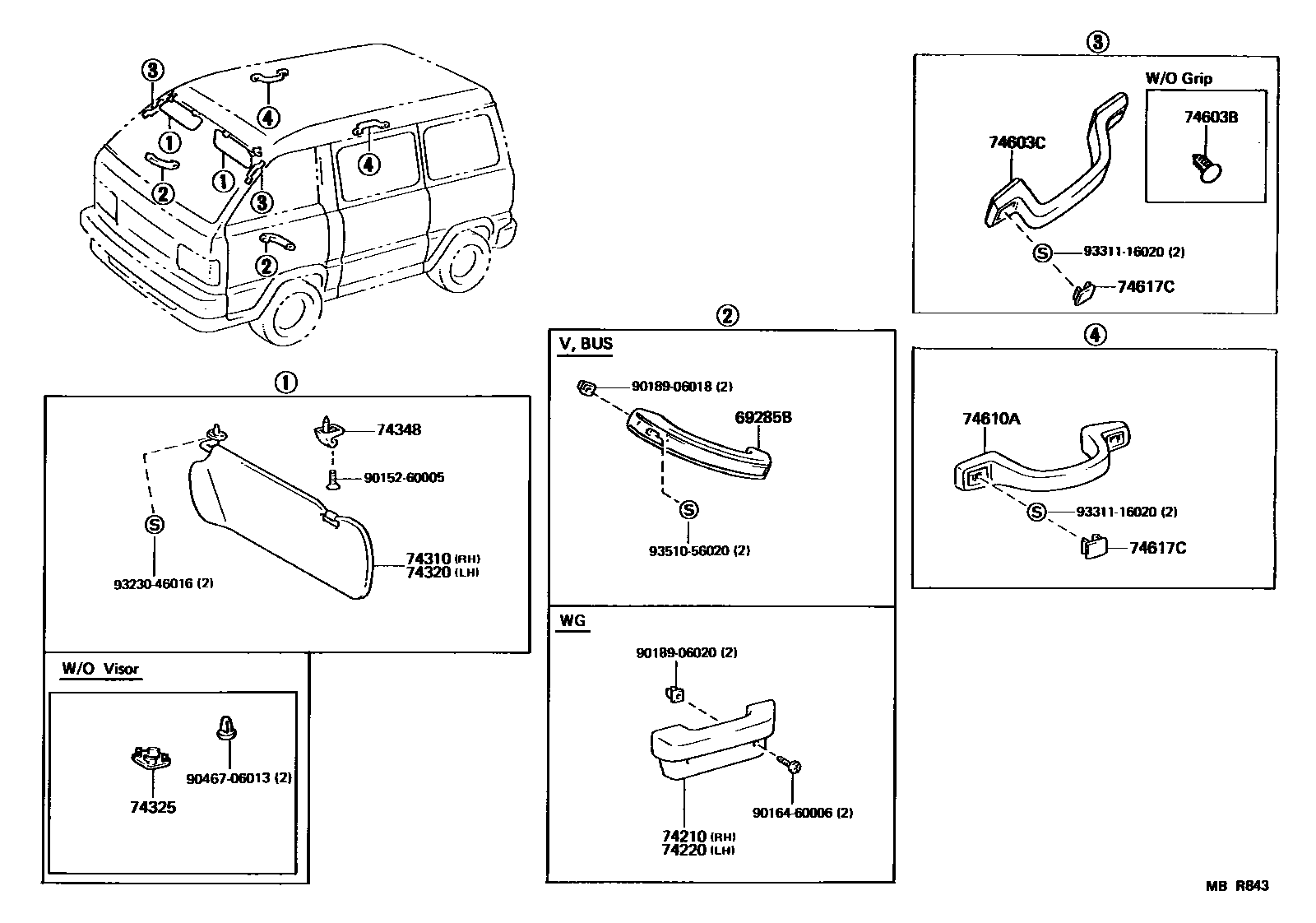

19 parts on this diagram · 1 diagram in section
