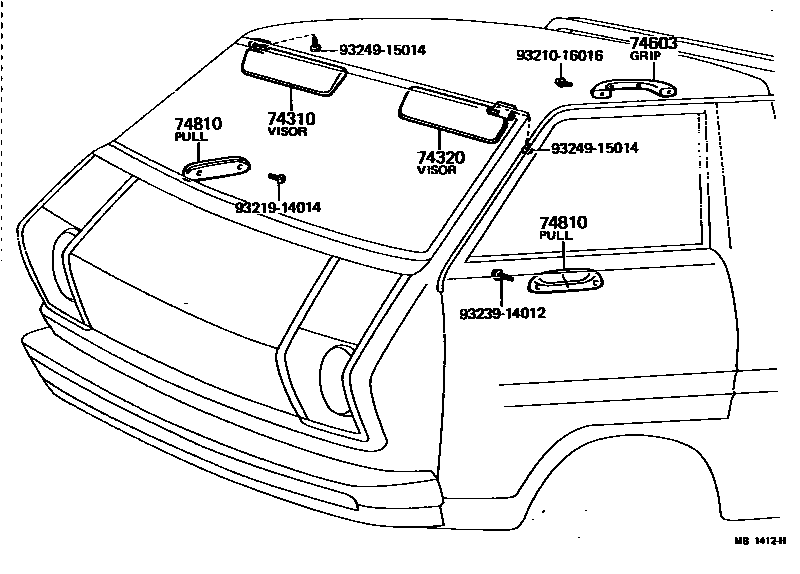

Toyota LITEACE — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-10050-33iKM10197105-197407

LIGHT GRAY,GRAY

sub74310-10051

main74310-95700iKM10197407-197601

main74310-95701iKM10197601-197802

main74310-95702iKM11197802-197909

74320VISOR ASSY, LH

main74320-95700-13iKM10..WG197105-197407

LIGHT GRAY,GRAY

main74320-95701iKM10..WG197407-197408

main74320-95702iKM10..V197704-197707

main74320-95703iKM11197802-197909

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-95700iKM10197105-197602

main74611-95702iKM1#197602-197909

sub74611-95A00

74810PULL ASSY, DOOR, INSIDE

main69151-95111×2iKM1#197105-197909

9321016016

main93210-16016

9321914014

main93219-14014

9323914012

main93239-14012

9324915014

main93249-15014

8 parts on this diagram · 1 diagram in section
