Toyota LITEACE — ALTERNATOR

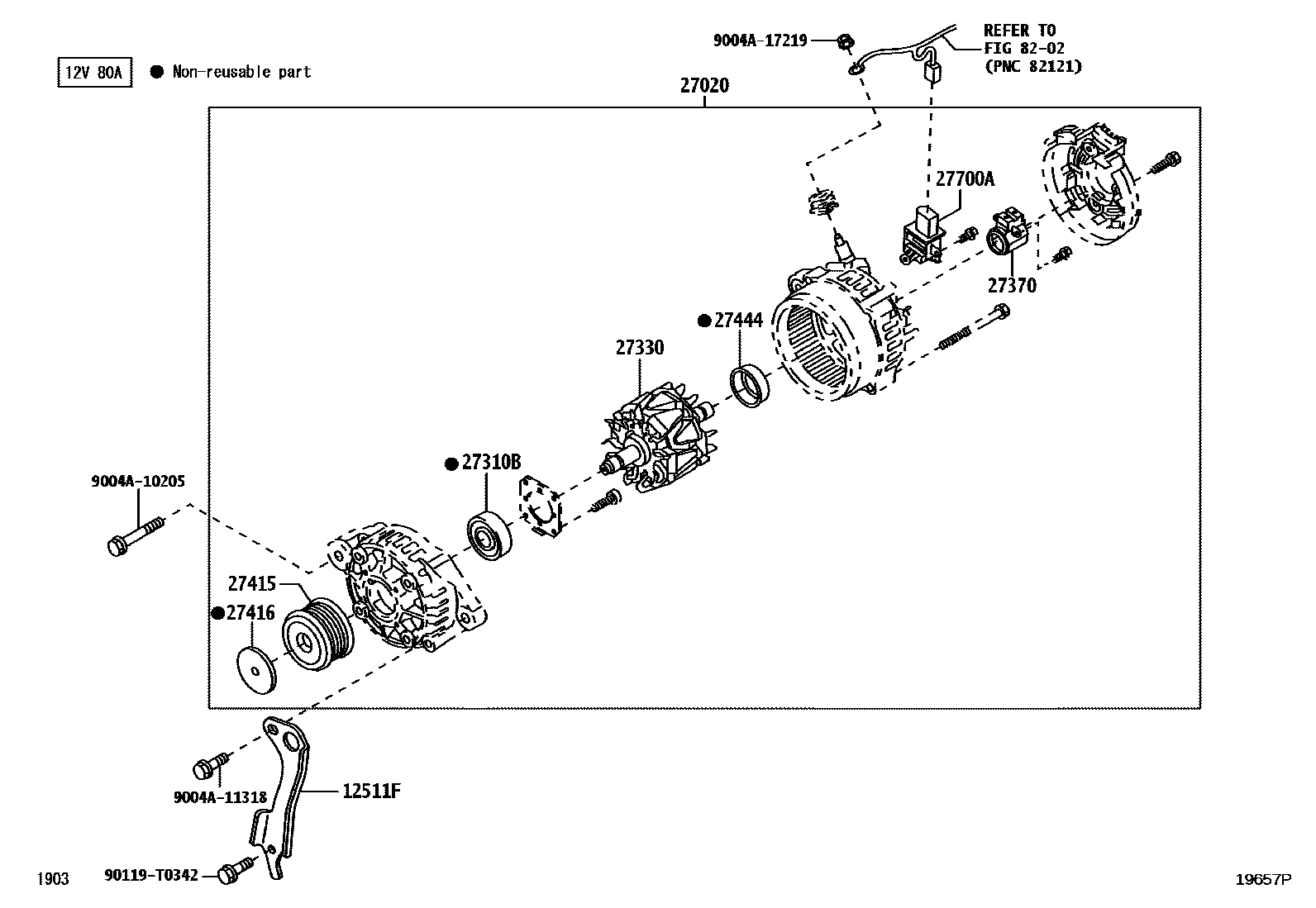

Parts diagram

12511FBRACKET, ALTERNATOR, NO.1

main12511-BZ020i202205

27020ALTERNATOR ASSY

main27060-BZ450i202205

12V 80A,W/PART NUMBER LABEL

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37008i202205

27330ROTOR ASSY, ALTERNATOR

main27330-BZ060i202205

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-BZ030i202205

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-B0010i202205

27416CAP, ALTERNATOR PULLEY

main27416-B0010i202205

27444PACKING, ALTERNATOR BEARING COVER

main27444-BZ010i202205

27700AREGULATOR ASSY, GENERATOR

main27700-B2080i202205

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A10205

main9004A-10205

9004A11318

main9004A-11318

9004A17219

main9004A-17219

90119T0342

main90119-T0342

14 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota LITEACE

This section contains 14 genuine Toyota parts for the ALTERNATOR system of the Toyota LITEACE. Key components include: BRACKET, ALTERNATOR, NO.1, ALTERNATOR ASSY, BEARING(FOR ALTERNATOR DRIVE END FRAME), ROTOR ASSY, ALTERNATOR, HOLDER ASSY, ALTERNATOR BRUSH.
