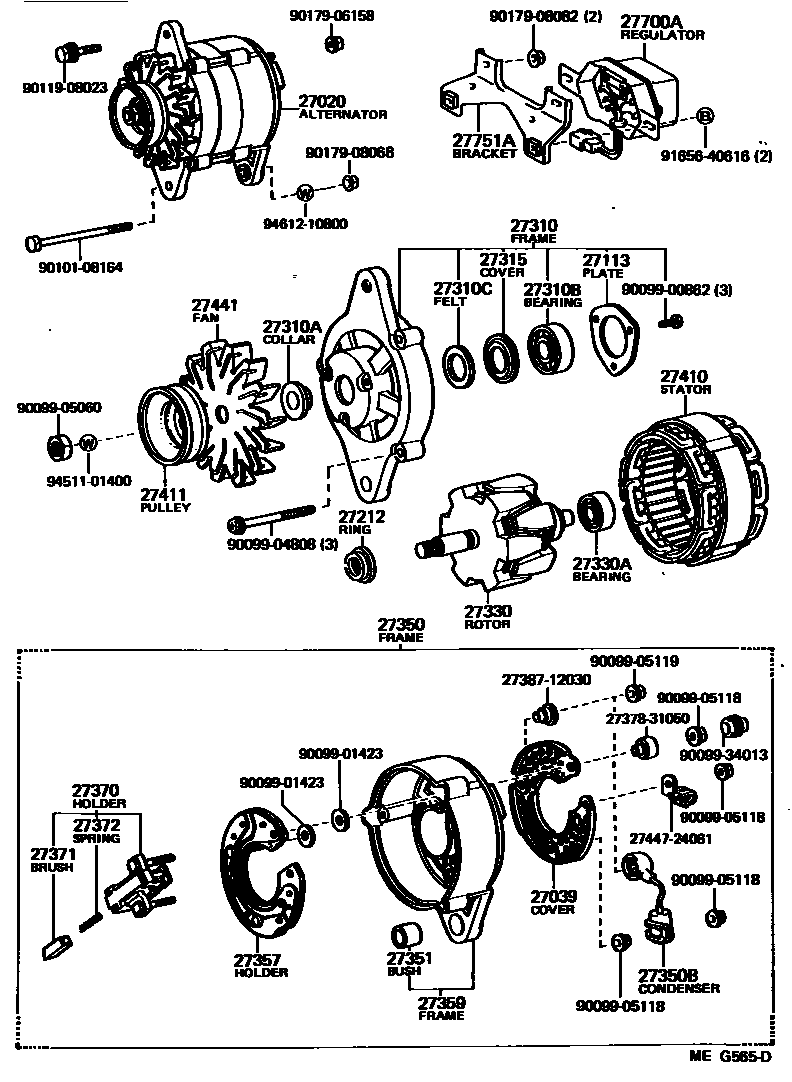

Toyota LITEACE — ALTERNATOR

27020ALTERNATOR ASSY

main27020-12030i198509-198808

12V 30A,12V 30A

main27020-13060i198509-198808

12V 40A,12V 40A

main27060-64020i198509-198609

12V 55A,12V 55A

main27060-64021i198609-198808

12V 55A,12V 55A

main27060-72070i198509-198608

12V 60A,12V 60A

main27060-72071i198608-198808

12V 60A,12V 60A

27039COVER, ALTERNATOR REAR END

main27039-11014i198509-198808

12V 30A

main27039-18011i198509-198808

12V 40A

main27039-72110i198509-198808

12V 55A,60A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10012i198509-198808

12V 30A

main27312-64130i198509-198808

12V 55A

main27312-72100i198509-198808

12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i198509-198808

12V 40A

main90099-19068i198509-198808

12V 30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i198509-198808

12V 40A

main27310-15060i198509-198808

12V 30A

main27310-64140i198509-198808

12V 55A

main27310-72110i198509-198808

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i198509-198808

12V 40A

main27412-56040i198509-198808

12V 30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i198509-198808

12V 30A

main90099-10125i198708-198808

12V 40A

main90099-10126i198509-198708

12V 40A

main90099-10159i198509-198808

12V 60A

main90099-10165i198509-198808

12V 55A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02009i198509-198808

12V 30A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-39010i198509-198808

12V 30A

27330ROTOR ASSY, ALTERNATOR

main27330-10020i198509-198808

12V 60A

main27330-22012i198509-198808

12V 30A

main27330-26050i198509-198808

12V 40A

main27330-64140i198509-198808

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i198509-198705

12V 40A

main90099-10116i198705-198808

12V 40A

main90099-10140i198509-198808

12V 55A,60A

main97110-06201i198509-198808

12V 30A

27350FRAME ASSY, RECTIFIER END

main27350-12030i198509-198808

12V 30A

27350BCONDENSER, ALTERNATOR

main90099-52065i198509-198808

12V 40A

main90099-52074i198509-198808

12V 30A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-24020i198509-198808

12V 30A

main27351-38051i198509-198808

12V 40A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-12030i198509-198808

12V 30A

main27357-63040i198509-198808

12V 55A,60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i198509-198808

12V 40A

main27359-16081i198509-198808

12V 60A

main27359-31090i198509-198808

12V 30A

main27359-64140i198509-198808

12V 55A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i198509-198808

12V 55A

main27370-31090i198509-198808

12V 30A

main27370-63021i198603-198808

12V 60A

main27370-72100i198509-198603

12V 60A

27371BRUSH, ALTERNATOR

main27371-31011×2i198509-198808

12V 30A,40A

main27371-63020×2i198509-198808

12V 55A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i198509-198808

12V 30A,40A

main27372-72100×2i198509-198808

12V 55A,60A

27410STATOR ASSY, ALTERNATOR

main27410-11014i198509-198808

12V 30A

main27410-15030i198509-198705

12V 40A

main27410-38120i198705-198808

12V 40A

27411PULLEY, ALTERNATOR

main27411-12030i198509-198808

12V 30A

main27411-31042i198509-198808

12V 40A

main27411-72110i198509-198808

12V 60A

27441FAN, ALTERNATOR

main27441-31090i198509-198808

12V 30A

main27441-34030i198509-198808

12V 40A

27700AREGULATOR ASSY, GENERATOR

main27700-13080i198509-198808

main27700-63021i198509-198808

27751ABRACKET, GENERATOR REGULATOR

main27751-13010i198509-198808

2737831050INSULATOR, ALTERNATOR, NO.1

main27378-31050

2738712030INSULATOR, TERMINAL

main27387-12030

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900862

main90099-00862

9009901423

main90099-01423

9009904808

main90099-04808

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009934013

main90099-34013

9010108164

main90101-08164

9011908023

main90119-08023

9017906158

main90179-06158

9017908068

main90179-08068

9017908082

main90179-08082

9165640616

main91656-40616

9451101400

main94511-01400

9461210800

main94612-10800

42 parts on this diagram · 4 diagrams in section

ALTERNATOR for Toyota LITEACE

This section contains 69 genuine Toyota parts for the ALTERNATOR system of the Toyota LITEACE. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, RING, SPACE(FOR ALTERNATOR ROTOR), FRAME ASSY, DRIVE END, ALTERNATOR.
