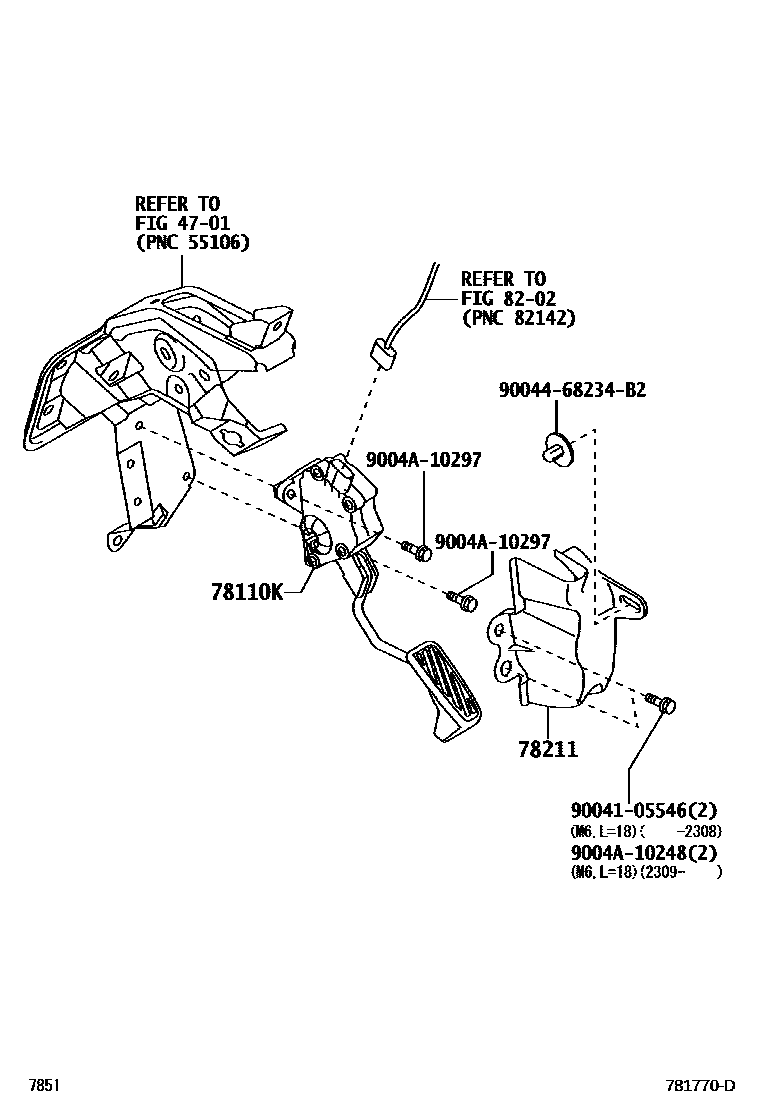

Toyota LITEACE — ACCELERATOR LINK
4701BRAKE PEDAL & BRACKET
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
8202WIRING & CLAMP
9004105546
main90041-05546
9004468234B2
main90044-68234B2
9004A10248
main9004A-10248
9004A10297
main9004A-10297
8 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota LITEACE
This section contains 9 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LITEACE. Key components include: BRAKE PEDAL & BRACKET, FRONT FENDER APRON & DASH PANEL, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), COVER, ACCELERATOR LINK ARM, WIRING & CLAMP.
