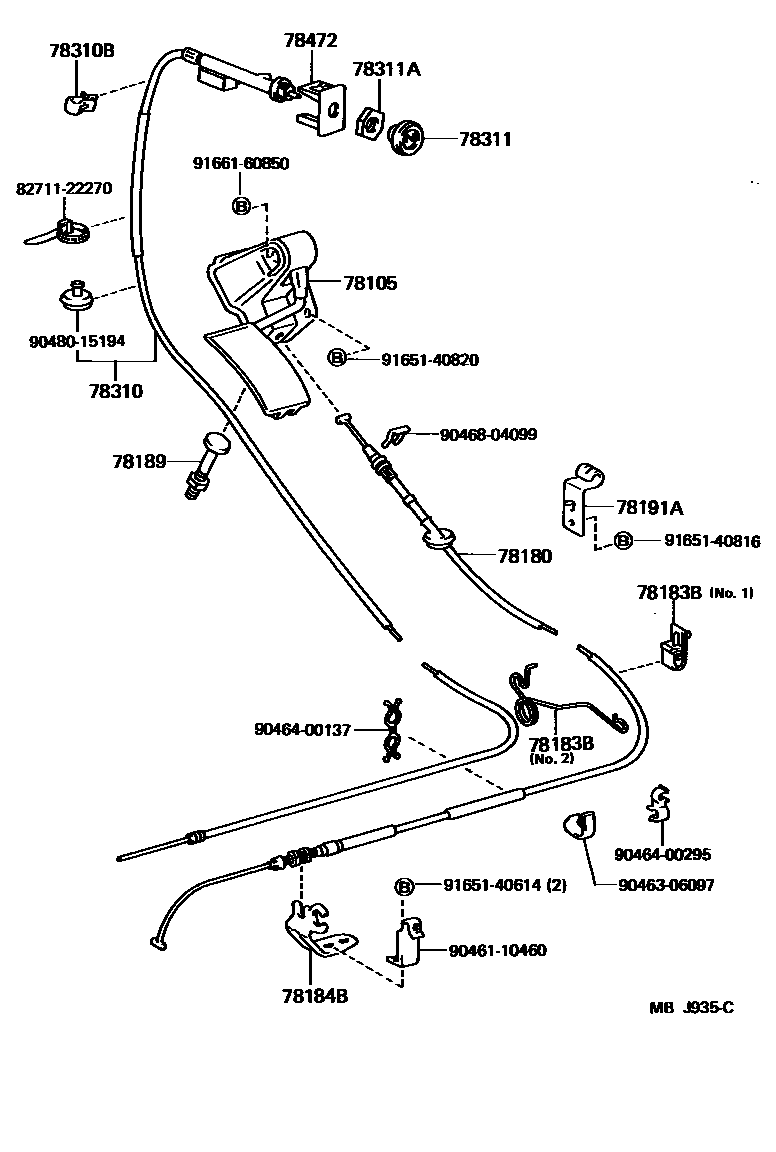

Toyota LITEACE — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-95706iCM3#,KM36,YM3#,4#..RHD198509-198808

main78105-95708iCM35,KM3#..LHD198509-198808

78180WIRE ASSY, ACCELERATOR

main78150-95718iCM3#..RHD198509-198808

sub78150-27030

main78150-95719iCM35..LHD198509-198808

main78150-95720iKM36..RHD198509-198808

sub78150-27010

main78150-95721iKM3#..LHD198509-198808

main78150-95722iYM3#,4#198509-198808

sub78150-27020

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95705×2iCM3#,KM3#,YM3#,4#198509-198808

main78183-95710iKM36..05S198509-198808

NO.2

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-95704iCM3#198509-198808

main78184-95705iKM3#198509-198808

main78184-95J00iYM3#,4#198509-198808

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00iCM35,KM36,YM3#198509-198510

main78208-95702iCM3#,KM3#,YM3#,4#198510-198808

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78183-95706iCM35..LHD198509-198808

main78183-95707iCM3#,KM36,YM3#,4#..RHD198509-198808

main78183-95709iKM3#..LHD198509-198808

78310CABLE ASSY, CHOKE

main78304-95700iKM36..RHD198509-198608

main78304-95701iKM36..LHD198509-198608

main78304-95703iKM36..RHD198608-198808

main78304-95704iKM3#..LHD198608-198808

78310BCLAMP, CHOKE CABLE

main78183-95701iKM36..RHD198509-198808

78311KNOB, CHOKE CONTROL CABLE

main78303-95700iKM3#198509-198808

78311ANUT, CHOKE SHAFT SET

main78314-95010iKM3#198509-198808

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-95700-06iKM3#198509-198808

BROWN,BROWN

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9046110460

main90461-10460

9046306097

main90463-06097

9046400137

main90464-00137

9046400295

main90464-00295

9046804099

main90468-04099

9048015194

main90480-15194

9165140614

main91651-40614

9165140816

main91651-40816

9165140820

main91651-40820

9166160850

main91661-60850

22 parts on this diagram · 5 diagrams in section
