Toyota LITEACE — ABS & VSC

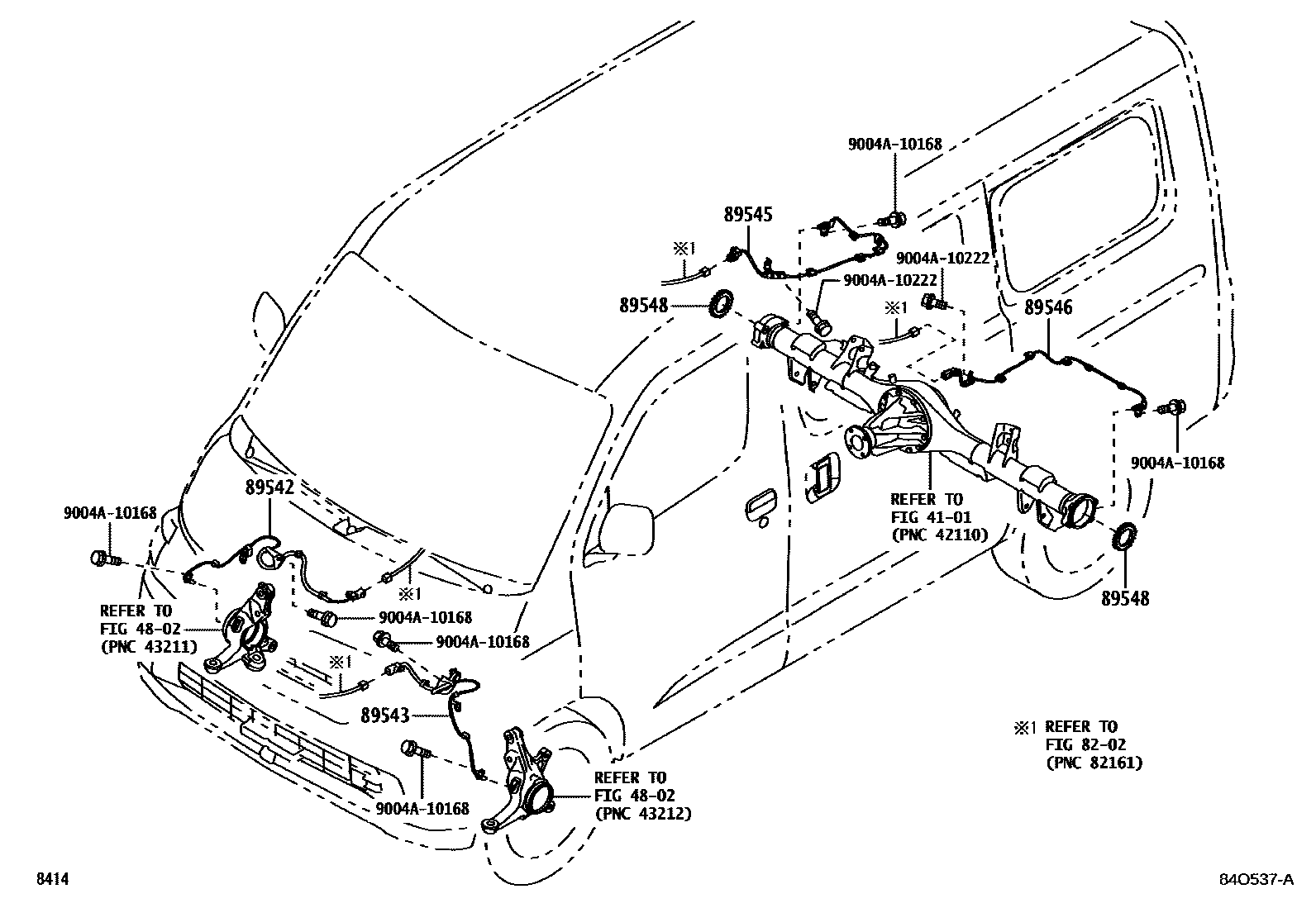

Parts diagram

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8202WIRING & CLAMP

→ Go to FIG 82-02

89542SENSOR, SPEED, FRONT RH

main89542-BZ080i202308

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

main89542-BZ220i202205-202308

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

89543SENSOR, SPEED, FRONT LH

main89543-BZ160i202308

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

main89543-BZ220i202205-202307

89545SENSOR, SPEED, REAR RH

main89545-BZ060i202301

main89545-BZ070i202301

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

main89545-BZ080i202205-202212

main89545-BZ090i202205-202212

89546SENSOR, SPEED, REAR LH

main89546-BZ060i202301

main89546-BZ070i202301

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

main89546-BZ080i202205-202212

main89546-BZ090i202205-202212

89548ROTOR, SKID CONTROL SENSOR

main89548-BZ020i202205

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

9004A10168

main9004A-10168

9004A10222

main9004A-10222

10 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota LITEACE

This section contains 11 genuine Toyota parts for the ABS & VSC system of the Toyota LITEACE. Key components include: REAR AXLE HOUSING & DIFFERENTIAL, FRONT AXLE ARM & STEERING KNUCKLE, WIRING & CLAMP, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH.
