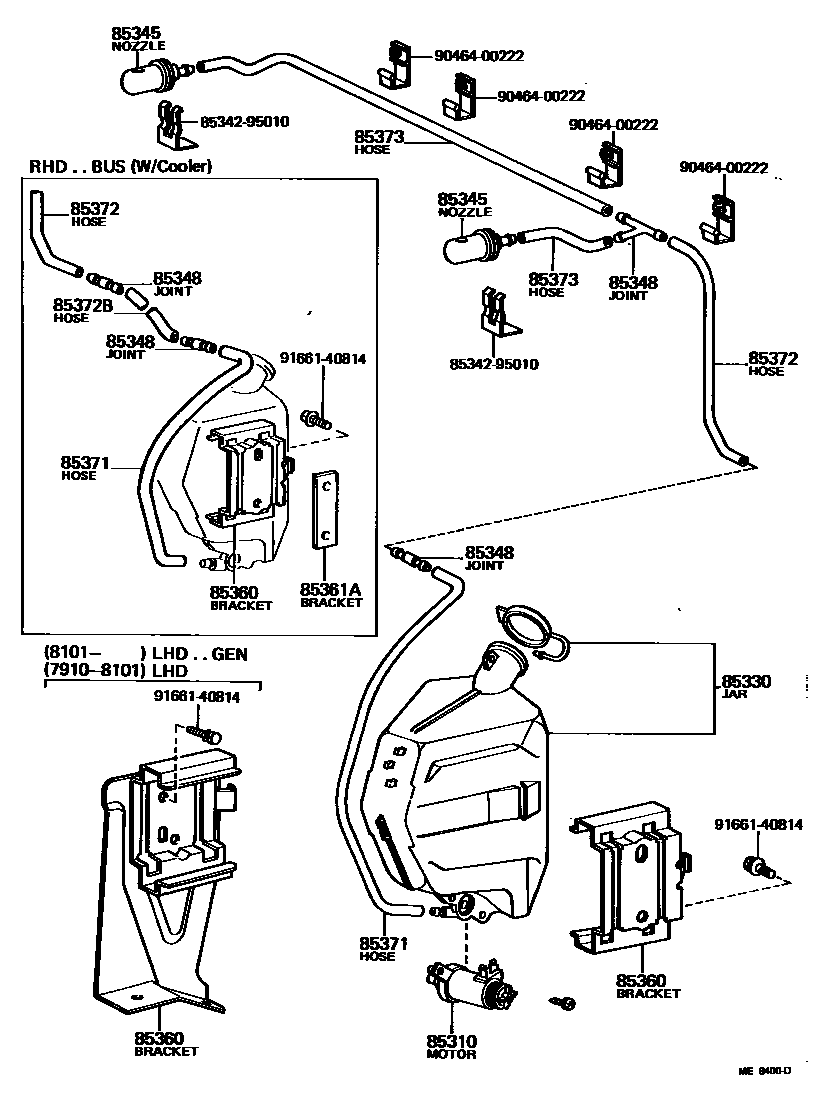

Toyota LITEACE — WINDSHIELD WASHER

0001 1 0002 1 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10130iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198010-198012

sub85310-22080

main85310-95700iCM20,KM20..LHD..(4F,5F)198210-198508

1.7LITERS

main85310-95702iKM20..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR;KM20..LHD..SRF..4H..(02S,05S,07S,09S)198012-198210

sub85310-89115

main85310-95703iCM20,KM20,YM2#..RHD198210-198508

85330JAR ASSY, WINDSHIELD WASHER

main85330-95700iCM20,KM20..LHD..(4F,5F)198210-198508

1.7LITERS

main85330-95705iCM20,KM20..LHD..EUR198210-198508

2.5LITERS

main85330-95706iCM20,KM20,YM2#..RHD198210-198508

85345NOZZLE, WINDSHIELD WASHER

main85035-95011×2iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

sub85035-95012

sub85342-95010

main85035-95701×2iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198305

main85035-95707×2iKM20..08S;CM20,KM20..LHD..V4D..SRF..02S..EUR198210-198508

main85035-95708×2iCM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S198305-198307

sub85035-95J03

main85035-95709×2iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198307-198508

sub85035-95J03

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-10060×2iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

2 WAY

sub85349-89122

main85355-14010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

3 WAY

sub85348-12250

main85355-87201×2iCM20,KM20,YM2#..RHD198210-198508

2 WAY

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85305-95700iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

main85361-95701iCM20,KM20..LHD198210-198508

main85361-95705iKM20..LHD..09S198012-198210

W/COOLER

main85361-95708iCM20,KM20,YM2#..RHD198210-198508

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85362-95702iKM20..RHD..09S198101-198210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85372-95707iCM20,KM20,YM2#..RHD198210-198508

L=300

sub85372-28010

main90446-06013iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197912-198210

L=1000(*H,L=280)

main90446-06341iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

L=1000(*H,L=280)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06009iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

L=1000(*H,L=360)

main90446-06013iKM20..RHD..09S197912-198210

L=1000(*H,L=360)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iKM20..GEN198101-198508

L=600(*H,L=230),W/COOLER

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33321iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

L=1000(*H,L=100)

main90446-06013iCM20,KM20,YM2#197912-198508

L=1000(*H,L=100)

main90446-06052iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

L=1450(*H,L=665)

sub90099-33245

main90446-06183iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197912-198210

L=1450(*H,L=665)

8534295010HOLDER, WASHER NOZZLE

main85342-95010

9046400222

main90464-00222

9166140814

main91661-40814

13 parts on this diagram · 3 diagrams in section
