Toyota LITEACE — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-10060i197105-197909

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10060i197105-197909

85312PACKING, WINDSHIELD WASHER TANK

main85316-10060i197105-197909

85315PLATE, WINDSHIELD WASHER PUMP

main85312-10060i197105-197909

85330JAR ASSY, WINDSHIELD WASHER

main85330-10060i197105-197909

85333FILTER, WINDSHIELD WASHER JAR

main85336-10060i197105-197909

85345NOZZLE, WINDSHIELD WASHER

main85035-27010i197105-197909

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-10060i197105-197909

2 WAY

main85355-60010i197105-197909

3 WAY

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06236i197105-197205

L=1000(*H,L=550)

main90446-06265i197105-197909

L=1000(*H,L=230)

main90446-06300i197205-197909

L=1000(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06236i197105-197205

L=1000(*H,L=550)

main90446-06268i197105-197909

L=50

main90446-06300i197205-197909

L=1000(*H,L=500)

8531710061WIRING ASSY, WASHER

main85317-10061

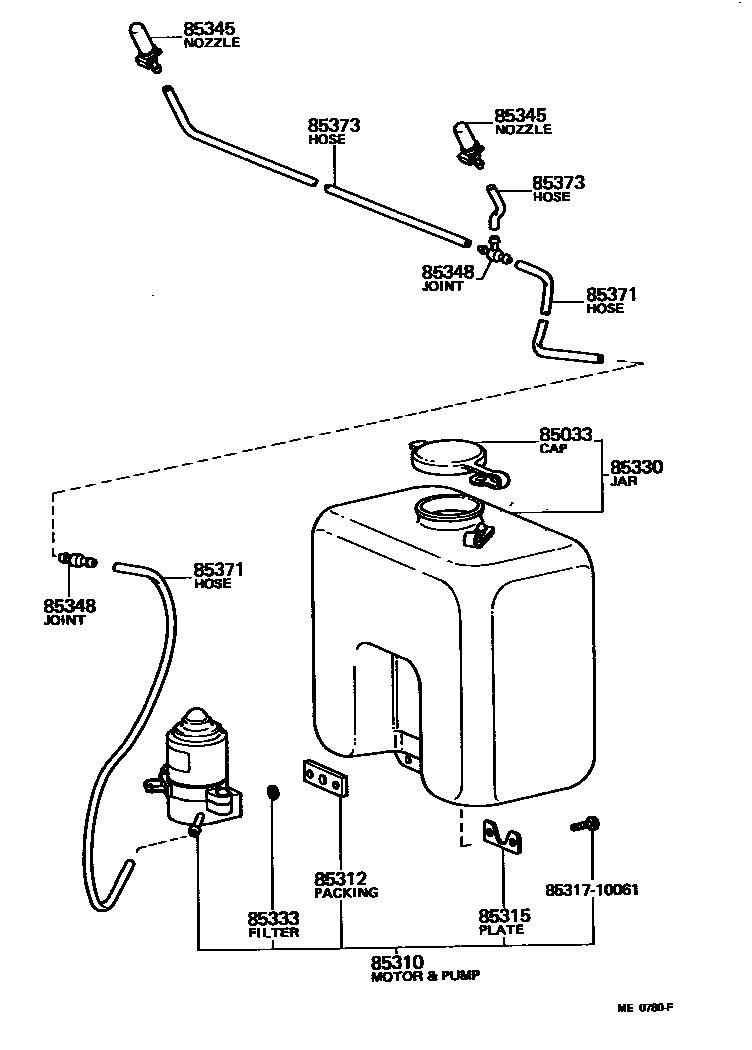

11 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LITEACE

This section contains 11 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LITEACE. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, WINDSHIELD WASHER TANK, PLATE, WINDSHIELD WASHER PUMP, JAR ASSY, WINDSHIELD WASHER.
