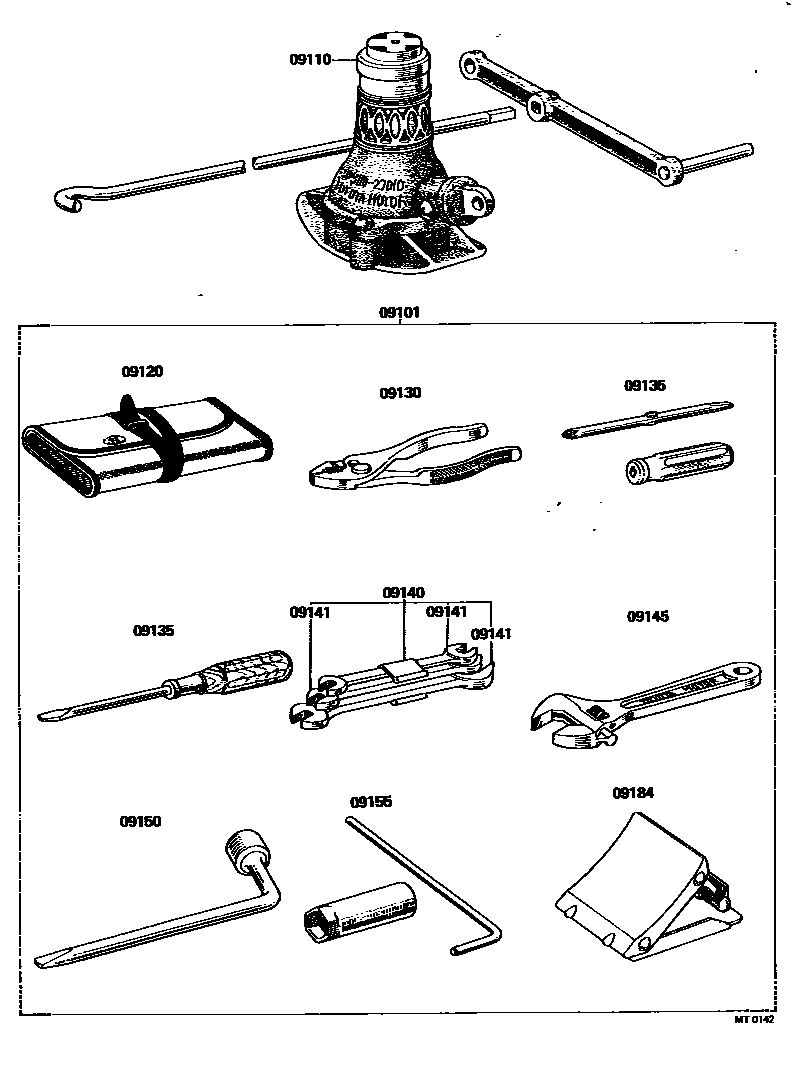

Toyota LITEACE — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-27020197105-197909

09110JACK ASSY

main09110-27010197105-197909

09120BAG, TOOL

main09120-27010197105-197909

09130PLIERS

main09130-00010197105-197909

09135DRIVER, SCREW

main09135-00010197105-197909

main09135-00060197105-197308

09140SPANNER SET

main09140-12011197105-197909

09141SPANNER

main09141-00032197105-197909

main09141-12011197105-197909

main09141-12020197105-197909

09145WRENCH, MONKEY

main09145-00020197105-197909

09150WRENCH, HUB NUT BOX

main09150-30011197105-197909

09155WRENCH, SPARK PLUG

main09155-12010197105-197909

09184STOPPER, WHEEL

main09184-00010197105-197909

11 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota LITEACE

This section contains 11 genuine Toyota parts for the STANDARD TOOL system of the Toyota LITEACE. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, BAG, TOOL, PLIERS, DRIVER, SCREW.
