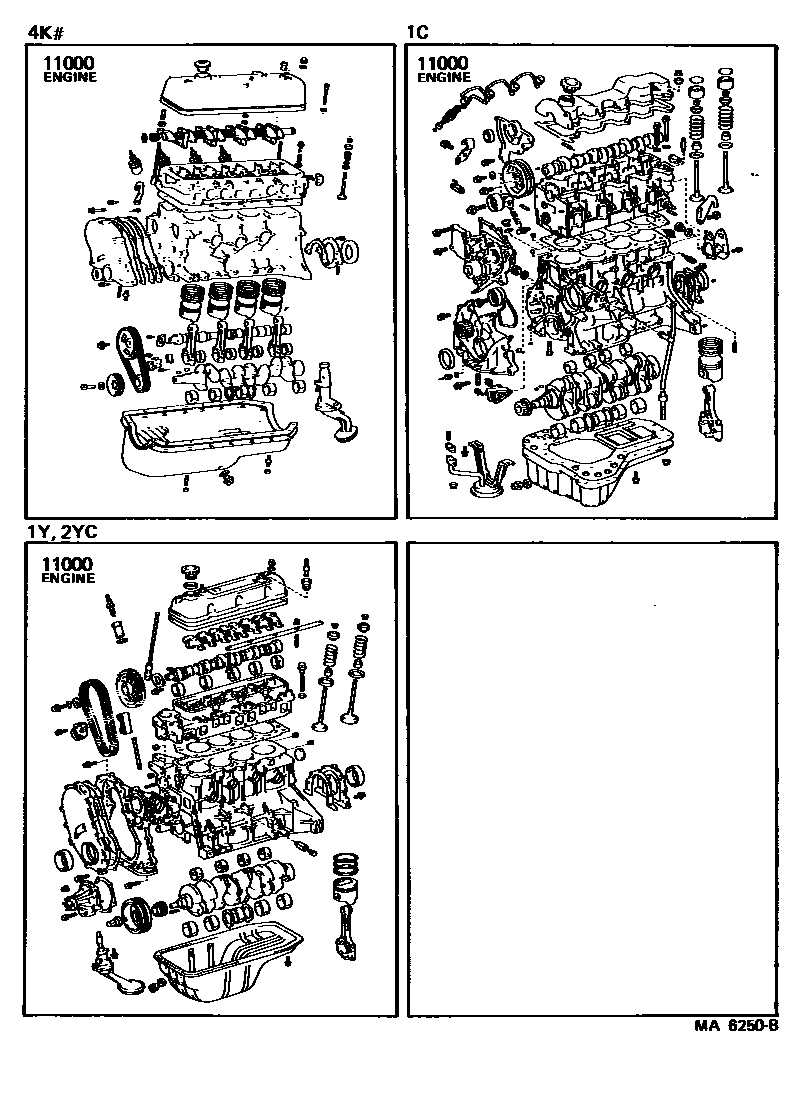

Toyota LITEACE — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-13090i4K..KM20..VSP..EUR;4K..KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN)197910-198210

main19000-13091i4K..KM20..EUR198210-198508

sub19000-13092

sub90179-10051

sub90179-10175

main19000-13100i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198210

main19000-13101i4K..KM20..ARL198210-198508

main19000-13110i4K..KM20..ARL197910-198210

main19000-13111i4K..KM20..ARL198210-198508

sub19000-13112

sub90179-10051

sub90179-10175

main19000-13250i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main19000-13260i4K..KM20..GEN198210-198508

main19000-64033i1C..CM20..ARL,EUR198210-198508

main19000-64150i1C..CM20..GEN198210-198508

sub19000-64151

sub90105-16064

sub90560-16025

main19000-71050i1Y..YM20198402-198403

sub15301-71020

sub23811-71011

sub23841-71011

main19000-71051i1Y..YM20198403-198502

sub87208-28021

main19000-71052i1Y..YM20198502-198508

main19000-72120i2YC..YM21198311-198403

sub15301-71020

sub23811-71011

sub23841-71011

main19000-72121i2YC..YM21198403-198502

sub87208-28021

main19000-72122i2YC..YM21198502-198508

1 parts on this diagram · 1 diagram in section
