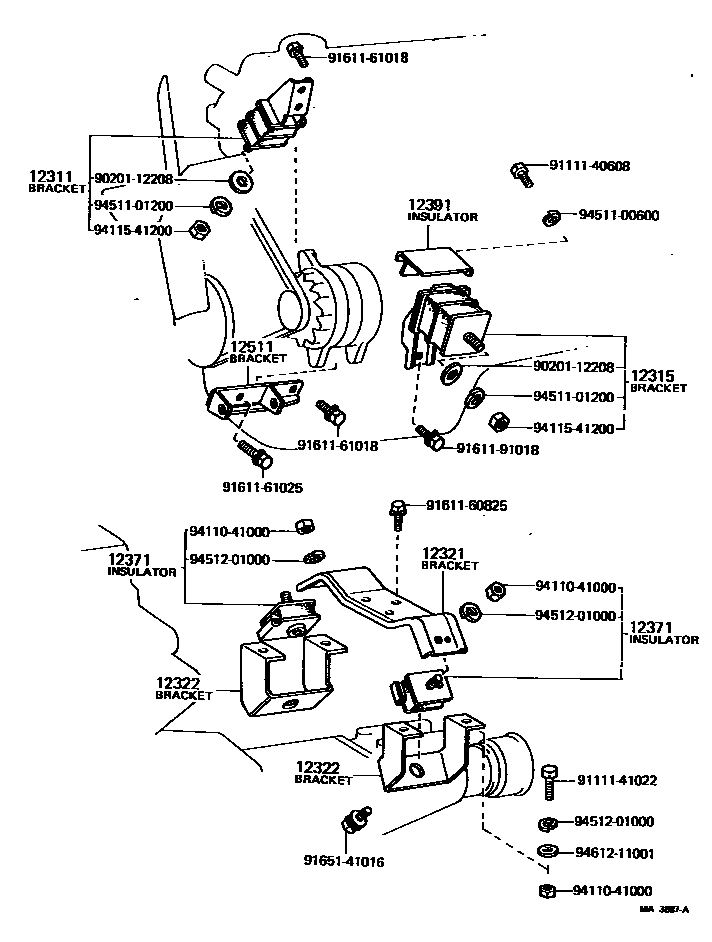

Toyota LITEACE — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12322BRACKET, ENGINE MOUNTING, REAR NO.2
RH
RH
LH
LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12511BRACKET, ALTERNATOR, NO.1
9020112208
main90201-12208
9111140608
main91111-40608
9111141022
main91111-41022
9161160825
main91611-60825
9161161018
main91611-61018
9161161025
main91611-61025
9161191018
main91611-91018
9165141016
main91651-41016
9411041000
main94110-41000
9411541200
main94115-41200
9451100600
main94511-00600
9451101200
main94511-01200
9451201000
main94512-01000
9461211001
main94612-11001
21 parts on this diagram · 1 diagram in section
MOUNTING for Toyota LITEACE
This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota LITEACE. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, INSULATOR, ENGINE MOUNTING, REAR NO.1.
