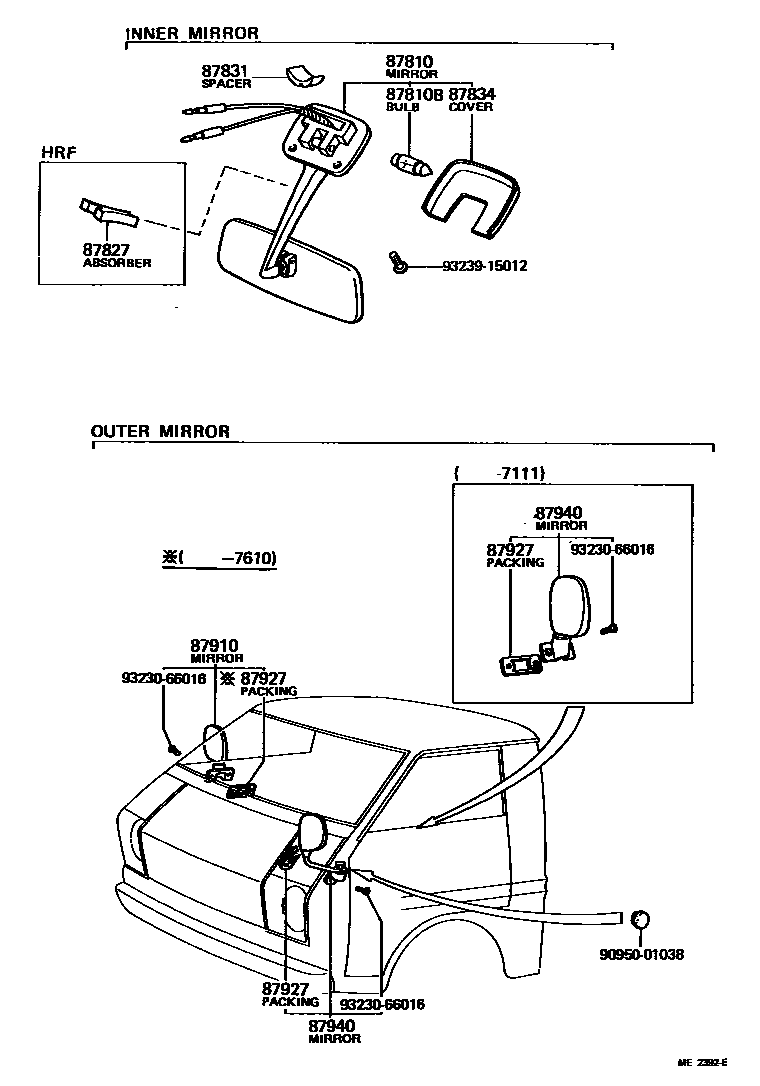

Toyota LITEACE — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95700i197105-197909

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050i197105-197909

12V 5W,12V 5W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-95010i197711-197712

87831SPACER (FOR INSIDE MIRROR)

main87831-95010i197711-197712

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12011i197105-197909

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95790i197105-197802

main87910-95791i197802-197909

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87925-95700×2i197105-197111

main87926-95700×2i197111-197309

FOR LH.

main87926-95701i197309-197909

FOR LH.

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87920-95790i197105-197111

main87920-95791i197111-197309

main87920-95792i197309-197802

main87920-95793i197802-197909

9095001038

main90950-01038

9323066016

main93230-66016

9323915012

main93239-15012

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota LITEACE

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota LITEACE. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, SPACER (FOR INSIDE MIRROR), COVER, INNER REAR VIEW MIRROR STAY HOLDER.
