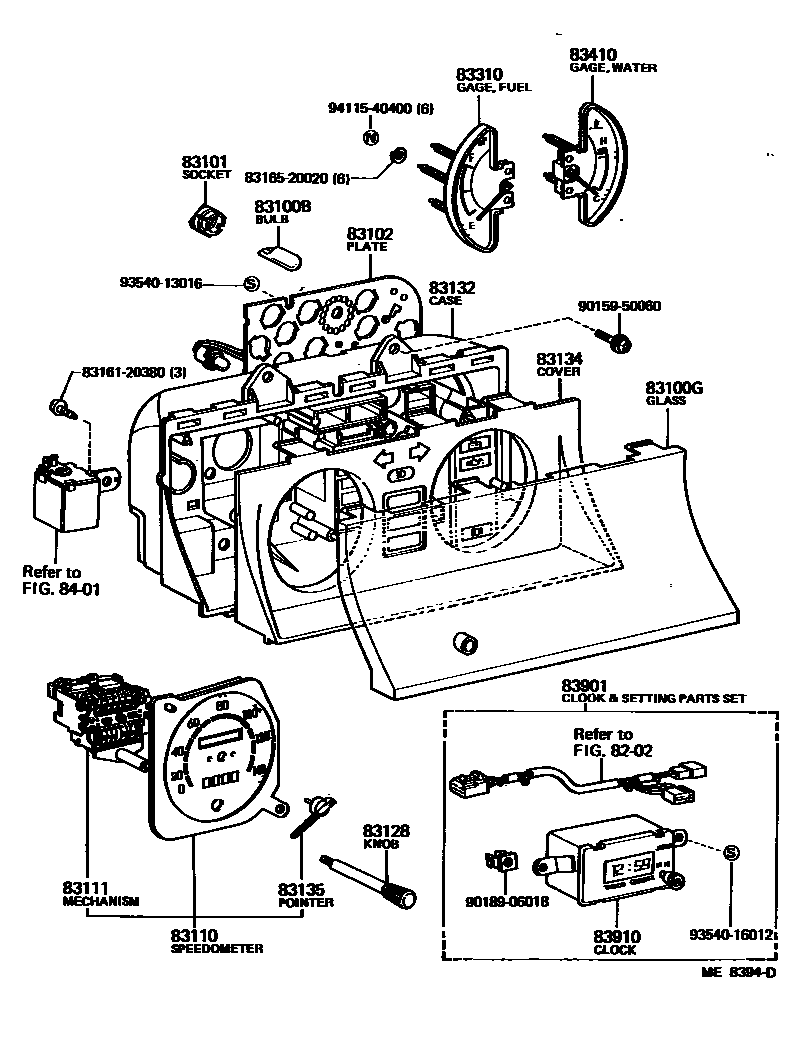

Toyota LITEACE — METER

0001 1 0003 1 0004 1 0005 1

8202

83100BBULB, COMBINATION METER, NO.1

main83109-95700×4iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

W/GREEN CAP,12V 3W

main99132-12034×13iCM20,KM20,YM2#197910-198508

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×13iCM20,KM20,YM2#197910-198508

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95060iCM20..LHD198210-198508

main83247-95700iKM20..LHD..GEN;KM20..RHD..(EUR,GEN)198008-198101

main83247-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

main83247-95702iKM20..ARL198101-198210

main83247-95709iKM20,YM2#..RHD198210-198508

main83247-95710iCM20..RHD198210-198508

sub83247-95706

83110SPEEDOMETER ASSY

main83110-95701iKM20..4F;CM20..LHD;KM20..LHD..GEN198210-198309

KM

main83110-95702iKM20..ARL197910-198210

KM,W/SPEED SENSER

main83110-95703iKM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN)197910-198210

MILE & KM

main83110-95706iCM20..ARL198210-198305

*NSW

main83110-95707iKM20,YM21..ARL198210-198508

KM,W/SPEED SENSER

main83110-95708iCM20,KM20..RHD..(EUR,GEN)198210-198309

MILE & KM

main83110-95709iCM20..LHD;KM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S)198309-198508

KM

main83110-95710iCM20,KM20..RHD..(EUR,GEN)198309-198508

MILE & KM

main83110-95711iKM20..ARL198305-198508

*NSW

main83110-95712iCM20,KM20..LHD..GEN198309-198508

MILE & KM

main83110-95713iCM20,KM20,YM20..RHD..GEN198309-198508

KM

83111MECHANISM, SPEEDOMETER

main83112-95701iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

KM

main83112-95702iKM20..ARL197910-198210

KM,W/SPEED SENSER

main83112-95703iKM20..RHD..EUR197910-198210

MILE & KM

83128KNOB, TRIP COUNTER

main83128-95010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main83128-95J00iCM20,KM20,YM2#..RHD198210-198508

83132CASE, COMBINATION METER

main83132-95010iCM20,KM20..LHD198210-198508

main83132-95700iKM20..ARL197910-198101

W/SPEED SENSER

main83132-95A01iKM20..ARL198101-198210

W/SPEED SENSER

main83132-95J00iCM20,KM20,YM2#..RHD198210-198508

83134COVER, COMBINATION METER, NO.1

main83134-95704iKM20..ARL197910-198101

main83134-95705iKM20..LHD..GEN198210-198508

main83134-95710iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198007-198008

W/*RHW

main83134-95711iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198008-198101

main83134-95713iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198008-198210

W/*RHW,*FRG

main83134-95716iKM20..ARL198101-198210

main83134-95731iKM20..LHD..EUR198210-198412

W/*RHW,*FRG

main83134-95732iCM20..LHD198210-198508

main83134-95734iCM20..LHD..EUR198210-198412

W/*RHW OR *FRG

main83134-95735iCM20,KM20,YM2#..RHD198210-198508

W/METER GLASS

83135POINTER, SPEEDOMETER

main83135-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

83310GAGE ASSY, FUEL RECEIVER

main83243-95020iCM20,KM20..LHD198210-198508

main83243-95700iKM20..ARL197910-198210

main83243-95701iKM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN)197910-198210

main83243-95704iKM20,YM21..ARL198210-198508

main83243-95707iCM20,KM20,YM20..RHD..(EUR,GEN)198210-198508

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95700iKM20..ARL197910-198210

main83244-95701iKM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S,09S)..(EUR,GEN)197910-198210

main83244-95703iKM20..GEN197910-198210

MIDDLE EAST COUNTRY SPEC

83901CLOCK AND SETTING PARTS SET

main83901-95700iCM20,KM20..LHD..GEN198210-198212

83910CLOCK ASSY

main83910-95700iKM20..DLX198108-198210

main83910-95701iCM20,KM20,YM20..RHD..GEN198210-198508

8401

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

9015950060

main90159-50060

9018906018

main90189-06018

9354013016

main93540-13016

9354016012

main93540-16012

9411540400

main94115-40400

23 parts on this diagram · 4 diagrams in section
