Toyota LITEACE — FRONT VENTILATOR
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55810DUCT ASSY, SIDE VENTILATOR, RH
55810BCOVER, SIDE VENTILATOR
main88896-95400iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198010-198210
LH
55820DUCT ASSY, SIDE VENTILATOR, LH
9165140618
main91651-40618

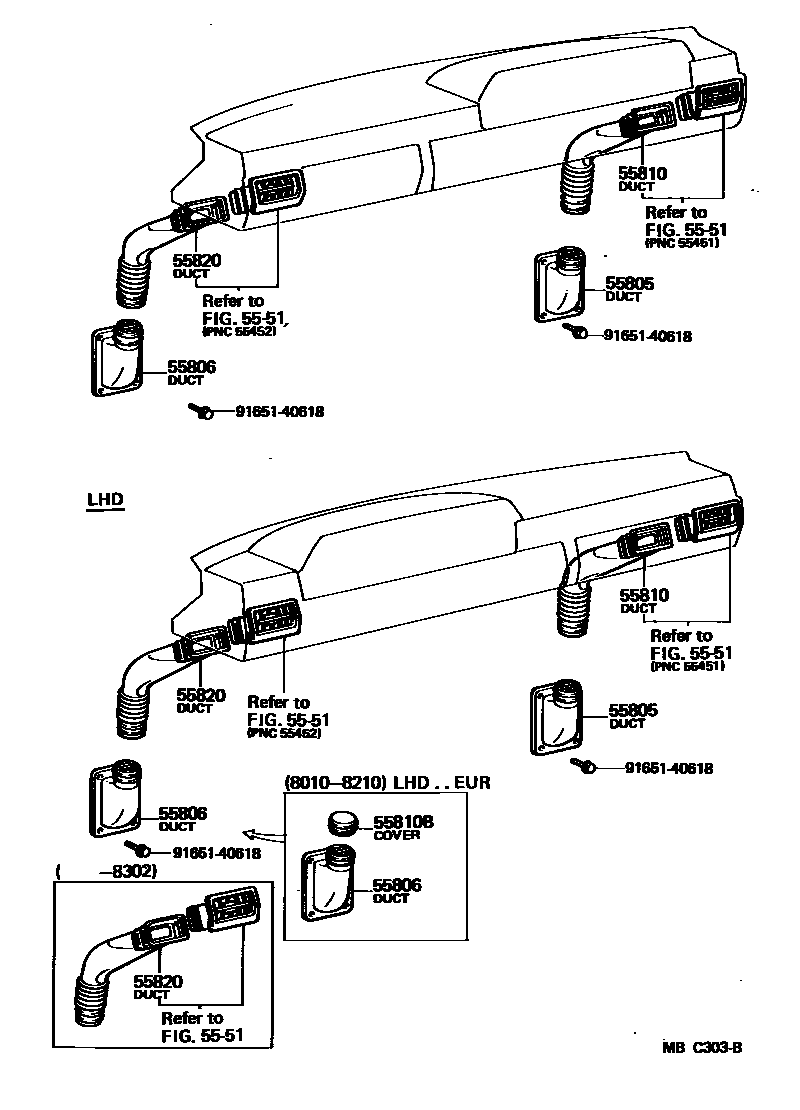

7 parts on this diagram · 1 diagram in section
FRONT VENTILATOR for Toyota LITEACE
This section contains 7 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota LITEACE. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH, DUCT ASSY, SIDE VENTILATOR, RH, COVER, SIDE VENTILATOR.
