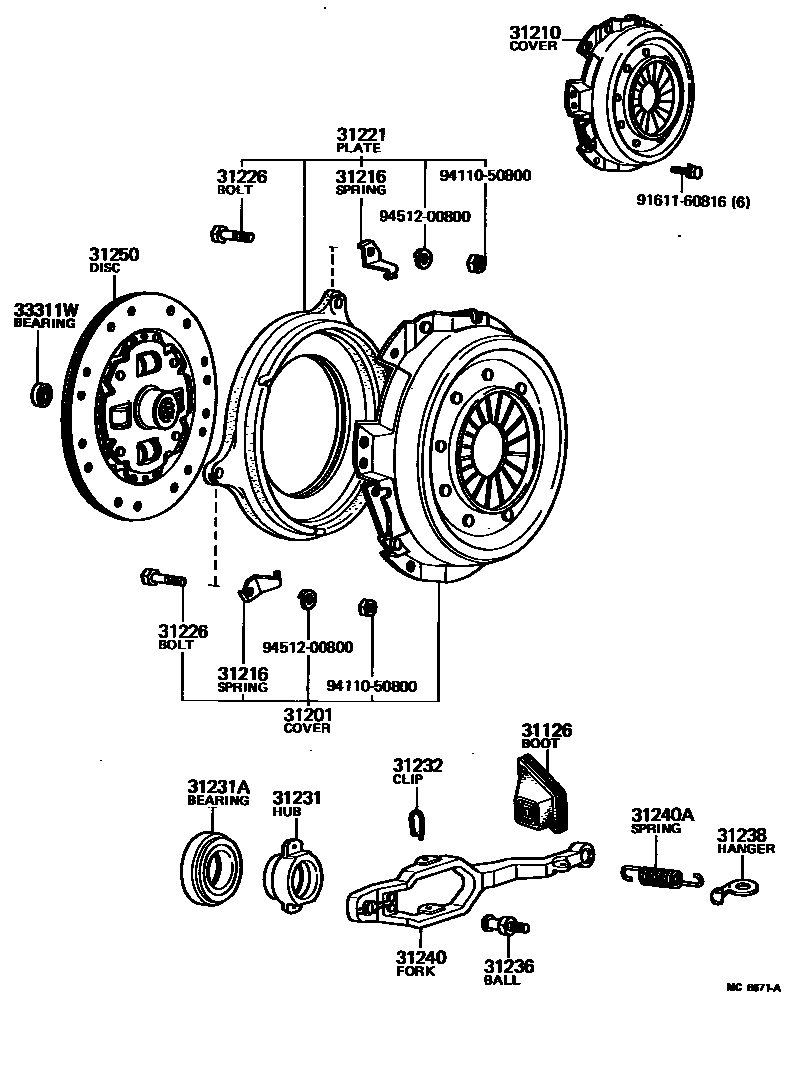

Toyota LITEACE — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYM2#..5F198311-198508

main31126-20070iCM20198210-198508

main31126-27020iKM20197910-198508

31201COVER SUB-ASSY, CLUTCH

main31201-29068iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

main31201-29085iCM20,YM21..MTM198210-198508

sub31201-26010

main31201-29105iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198101-198210

main31201-39047iYM20198402-198508

31210COVER ASSY, CLUTCH

main31210-20092iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

main31210-20093iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198101-198210

sub31210-20094

main31210-26030iCM20,YM21..MTM198210-198508

sub31210-26070

main31210-28010iKM20198210-198508

sub31210-12180

main31210-35042iYM20198402-198508

sub31210-22120

31216SPRING, CLUTCH RETRACTING

main31216-20020×3iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main31216-30010×3iCM20,YM2#..MTM198210-198508

31221PLATE, CLUTCH PRESSURE

main31221-29015iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main31221-29035iCM20,YM21..MTM198210-198508

main31221-39045iYM20198402-198508

sub31221-35020

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iCM20,YM2#..MTM198308-198508

main90101-08350×3iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iCM20..5F,5H198210-198508

main31231-27012iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198009

main31231-27013iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198009-198210

main31231-30080iKM20198210-198508

main31231-36070iCM20..4H198210-198508

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40005iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198002

main90363-40013iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)198002-198009

main90363-40019iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198009-198210

main90363-40022iCM20,KM20,YM2#..MTM198210-198508

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iCM20,YM2#..MTM198210-198508

main31232-30020×2iKM20197910-198508

31236BALL, RELEASE FORK

main31236-20020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198107

main31236-30060iCM20,KM20,YM2#..MTM198107-198508

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM20197910-198508

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYM2#..5F198311-198508

sub31204-20072

main31204-20071iYM2#..5F198508-198508

main31204-20090iCM20198210-198508

main31204-27010iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198009

main31204-27011iKM20198009-198508

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM20197910-198508

31250DISC ASSY, CLUTCH

main31250-20111iCM20198210-198407

main31250-20112iCM20198407-198502

main31250-20113iCM20198502-198508

sub31250-20114

main31250-27023iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198107

main31250-27024iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198107-198312

main31250-27025iKM20..V4D..02S;KM20..03S,05S,06S,08S,09S198312-198508

sub31250-27060

main31250-35061iYM2#..5F198311-198502

main31250-35062iYM2#..5F198502-198508

sub31250-35063

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM2#..5F198311-198508

sub90363-12024

main90363-12003iKM20198010-198508

main90363-12004iCM20198210-198508

main97123-06001iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198010

6001 ZZ 03

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

18 parts on this diagram · 4 diagrams in section
