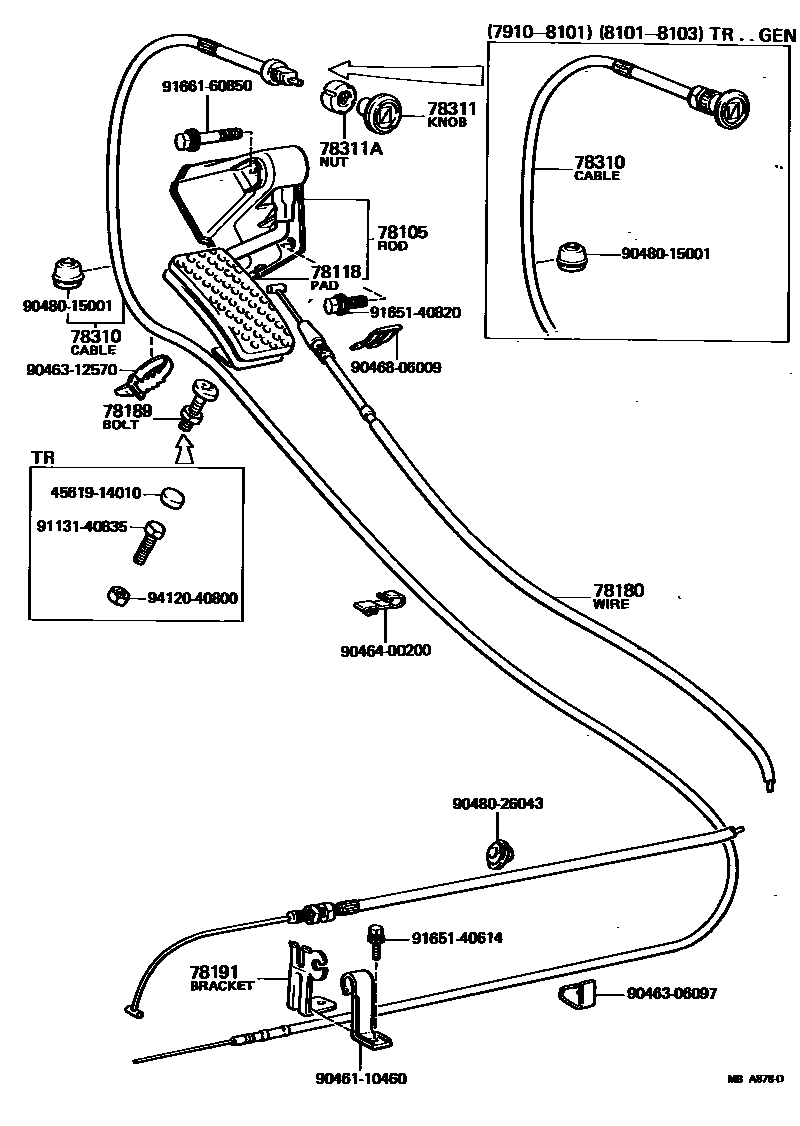

Toyota LITEACE — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-95700iKM20..RHD197910-198210

main78105-95701iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main78105-95702iYM21..3FC198311-198508

main78105-95703iCM20,KM20..LHD198210-198508

78118PAD, ACCELERATOR PEDAL

main78111-95110iCM20,KM20..LHD197910-198508

main78119-95700iCM20,KM20,YM2#..RHD197910-198508

78180WIRE ASSY, ACCELERATOR

main78150-87401iKM20..TR197910-198210

main78150-95710iKM20..RHD..(HRF,SRF)197910-198508

main78150-95712iKM20..LHD197910-198508

main78150-95713iYM2#198311-198508

main78150-95714iCM20..RHD198210-198508

main78150-95715iCM20..LHD198210-198508

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00iCM20,KM20,YM2#..HRF,SRF197910-198508

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78108-95702iKM20..LHD197912-198508

main78184-95700iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-197912

main78184-95702iCM20198210-198508

main78184-95J00iYM2#198311-198508

78310CABLE ASSY, CHOKE

main78301-95701iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198004

main78301-95702iKM20..RHD198210-198508

W/O RR FOG LAMP

main78301-95703iKM20..03S..ARL198101-198103

main78301-95705iKM20..VSP..4H..EUR198210-198508

W/RR FOG LAMP

main78301-95706iKM20..LHD..EUR198210-198508

main78310-95705iKM20..RHD197910-198101

main78310-95707iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)198004-198008

78311KNOB, CHOKE CONTROL CABLE

main78302-95700iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198004

sub78303-95700

main78302-95701iKM20..03S..ARL198101-198103

sub78303-95700

78311ANUT, CHOKE SHAFT SET

main78314-95A00iKM20198103-198508

4561914010COVER, KNUCKLE STOPPER

main45619-14010

9046110460

main90461-10460

9046306097

main90463-06097

9046312570

main90463-12570

9046400200

main90464-00200

9046806009

main90468-06009

9048015001

main90480-15001

9048026043

main90480-26043

9113140835

main91131-40835

9165140614

main91651-40614

9165140820

main91651-40820

9166160850

main91661-60850

9412040800

main94120-40800

21 parts on this diagram · 4 diagrams in section
