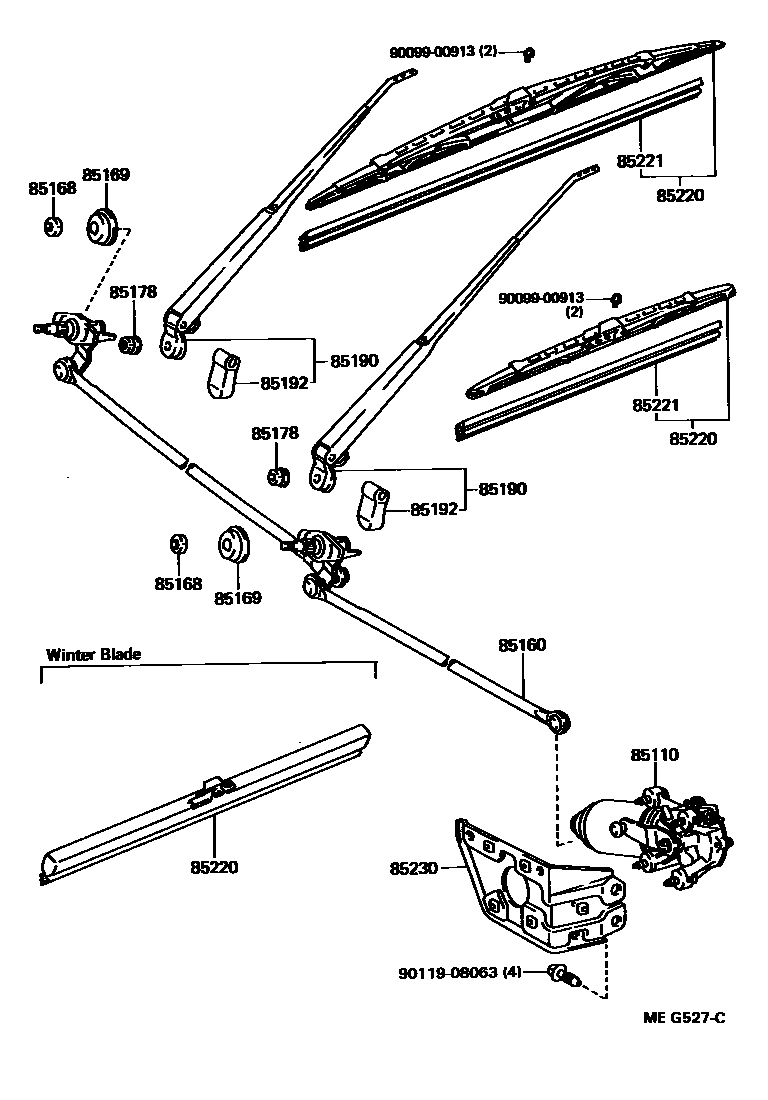

Toyota LITEACE VAN,WAGON — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95716i198808-199201

main85110-95718i198808-199201

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707i198808-199201

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700×2i198808-199201

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701×2i198808-199201

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123×2i198808-199201

85190ARM ASSY, WINDSHIELD WIPER

main85190-95715i198808-199201

main85210-95705i198808-199201

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2i198808-199201

85220BLADE ASSY, WINDSHIELD WIPER

main85220-22500i198808-199201

main85220-32420i198808-199201

main85220-95712i198808-199003

main85220-95713i198808-199003

main85291-27010i199003-199201

main85291-27020i199003-199201

85221BLADE, WINDSHIELD WIPER

main85221-95703i198808-199201

main85221-95704i198808-199201

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700i198808-199201

9009900913

main90099-00913

9011908063

main90119-08063

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota LITEACE VAN,WAGON

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota LITEACE VAN,WAGON. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT, WINDSHIELD WIPER LINK PIVOT, WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1, NUT (FOR FRONT WIPER ARM SETTING).
