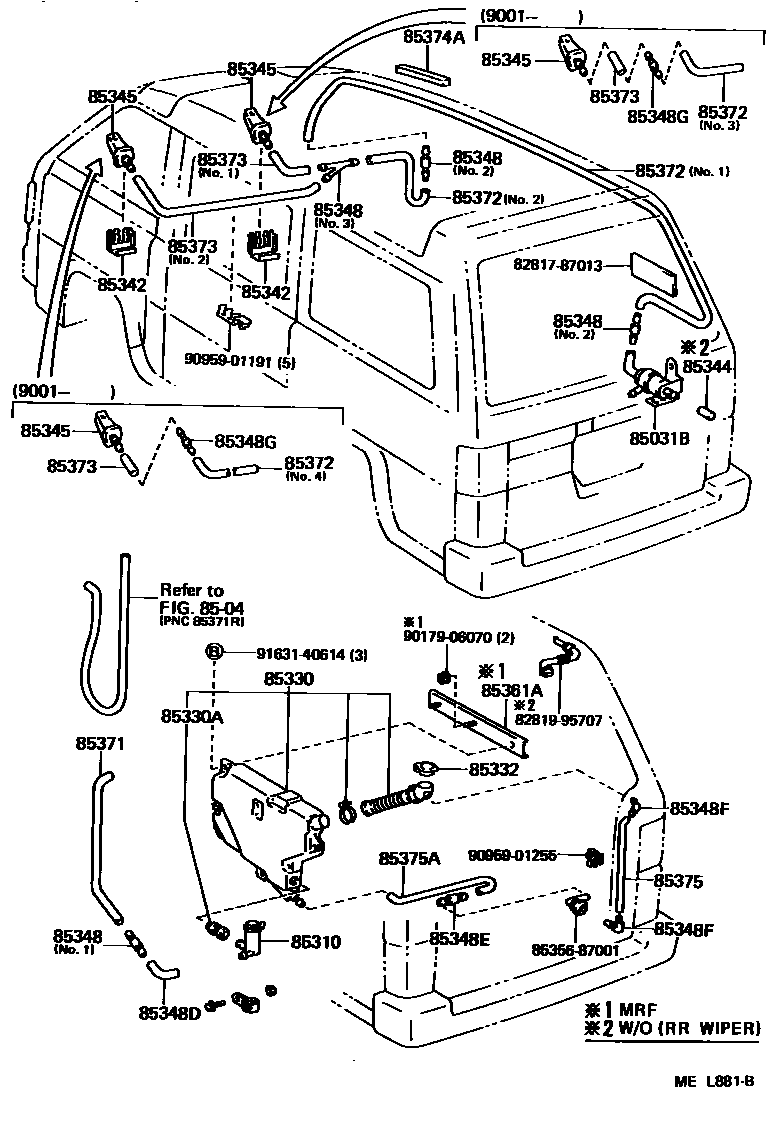

Toyota LITEACE VAN,WAGON — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85342HOLDER, WASHER NOZZLE
85344TUBE, WINDSHIELD WASHER HOSE, STOP
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85374APROTECTOR, WASHER HOSE
main82718-87002×3iCM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)199001-199201
85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
8281787013PROTECTOR, WIRING HARNESS, NO.1
main82817-87013
8281995707GROMMET, WIRING HARNESS
main82819-95707
8535687001PACKING (FOR WINDSHIELD WASHER JAR)
main85356-87001
9017906070
main90179-06070
9095901191
main90959-01191
9095901255
main90959-01255
9163140614
main91631-40614
28 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota LITEACE VAN,WAGON
This section contains 29 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LITEACE VAN,WAGON. Key components include: VALVE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
