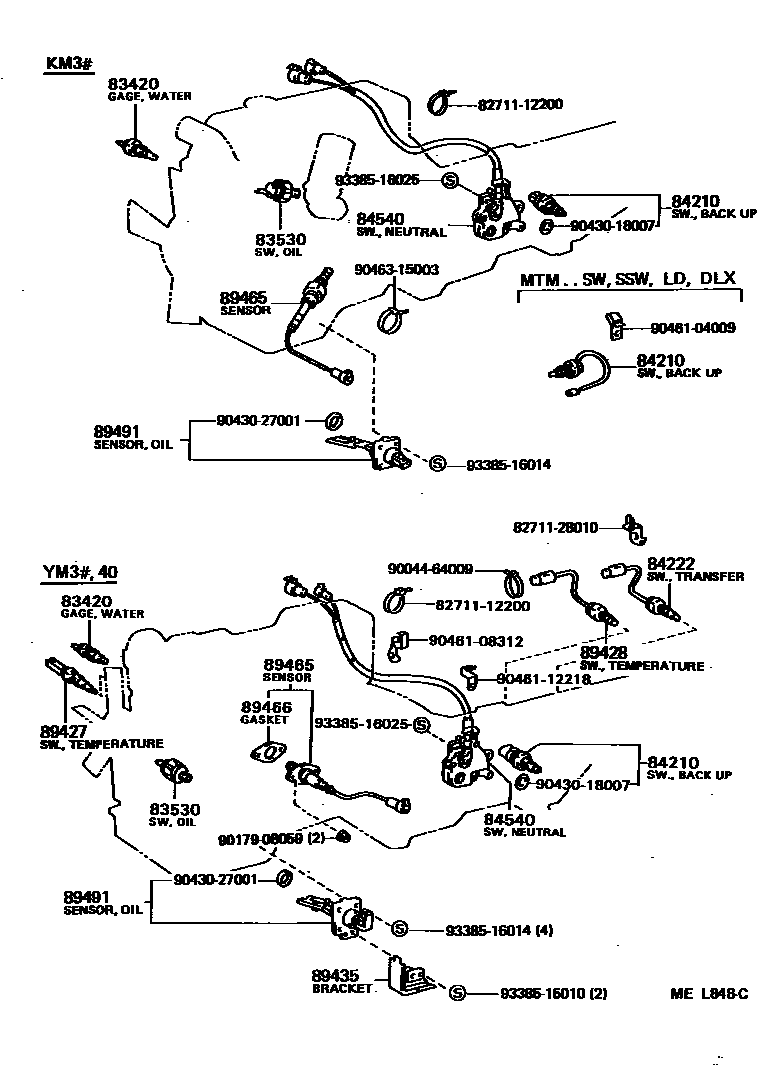

Toyota LITEACE VAN,WAGON — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCM3#,4#,KM3#,YM3#,40198808-199201

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYM3#,40198808-199201

sub83530-28030

main83530-30060iCM3#,4#198808-199201

sub83530-60030

main83530-30080iKM3#198808-199201

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

sub84210-52050

main84210-26030iKM30,35,36..4H198808-199008

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iCM4#,YM40198808-199201

84540SWITCH ASSY, NEUTRAL START

main84540-27010iKM30,31,36..3FC198808-199201

main84540-35010iYM3#,40..4FC198808-199201

main84540-35020iCM3#,40..4FC198808-199201

89427SWITCH, TEMPERATURE DETECT

main89428-27040×2iYM40198808-199201

main89428-27050iCM3#,4#198808-199201

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-28040iCM40,YM40..4FC198808-199201

89435BRACKET, CONNECTOR COVER

main89435-28030iCM4#,YM40198808-199201

89465SENSOR, OXYGEN

main89465-10020iKM3#199008-199201

main89465-19066iYM30,40198808-198904

main89465-19067iYM30,40198904-199201

main89465-20051iKM30198808-199008

89466GASKET, OXYGEN SENSOR

main89466-20020iYM30,40198810-199201

main89466-30010iYM30,40198808-198810

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKM3#198808-199201

main89491-27020iYM3#,40198808-199201

main89491-27030iCM3#,4#198808-199201

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

9004464009

main90044-64009

9017908059

main90179-08059

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046108312

main90461-08312

9046112218

main90461-12218

9046315003

main90463-15003

9338515010

main93385-15010

9338516014

main93385-16014

9338516025

main93385-16025

24 parts on this diagram · 8 diagrams in section
