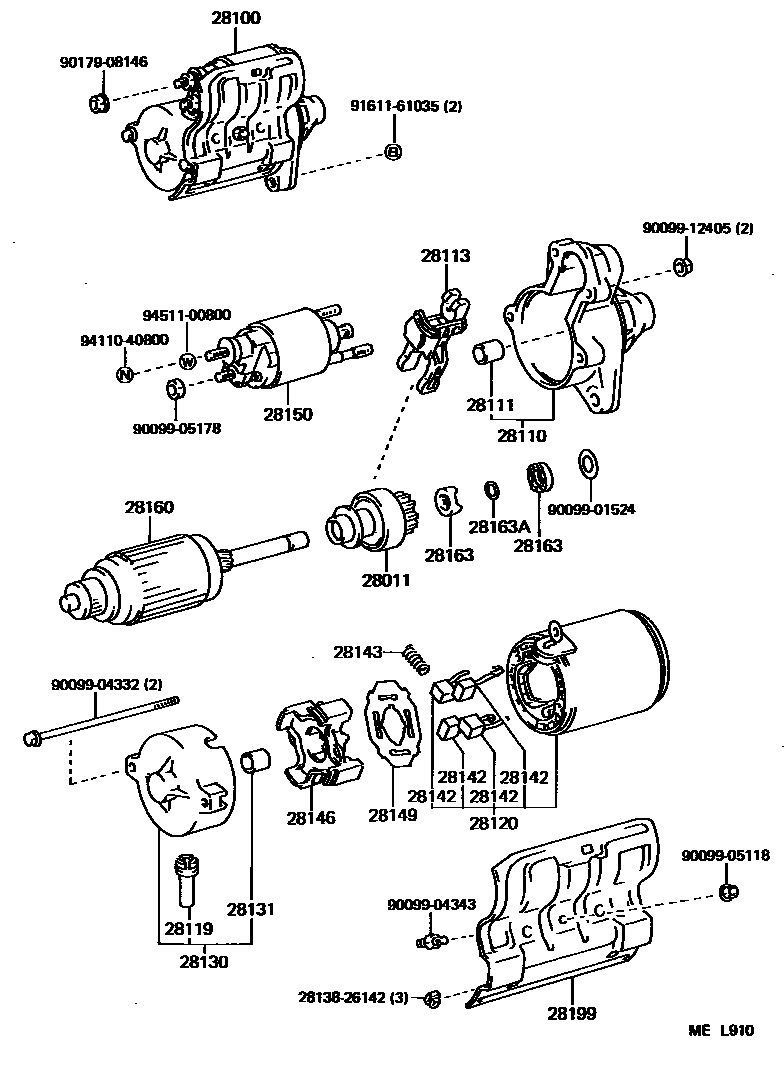

Toyota LITEACE VAN,WAGON — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28111BUSH(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28119COVER, STARTER END FRAME
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28131BUSH, COMMUTATOR END FRAME
28142BRUSH, STARTER
28143SPRING, STARTER BRUSH
28146HOLDER, STARTER BRUSH
28149PLATE, STARTER
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
28199COVER, STARTER
2813826142RUBBER(FOR STARTER BEARING COVER)
main28138-26142
9009901524
main90099-01524
9009904332
main90099-04332
9009904343
main90099-04343
9009905118
main90099-05118
9009905178
main90099-05178
9009912405
main90099-12405
9017908146
main90179-08146
9161161035
main91611-61035
9411040800
main94110-40800
9451100800
main94511-00800
29 parts on this diagram · 8 diagrams in section
STARTER for Toyota LITEACE VAN,WAGON
This section contains 84 genuine Toyota parts for the STARTER system of the Toyota LITEACE VAN,WAGON. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
